II. Electric BigRep

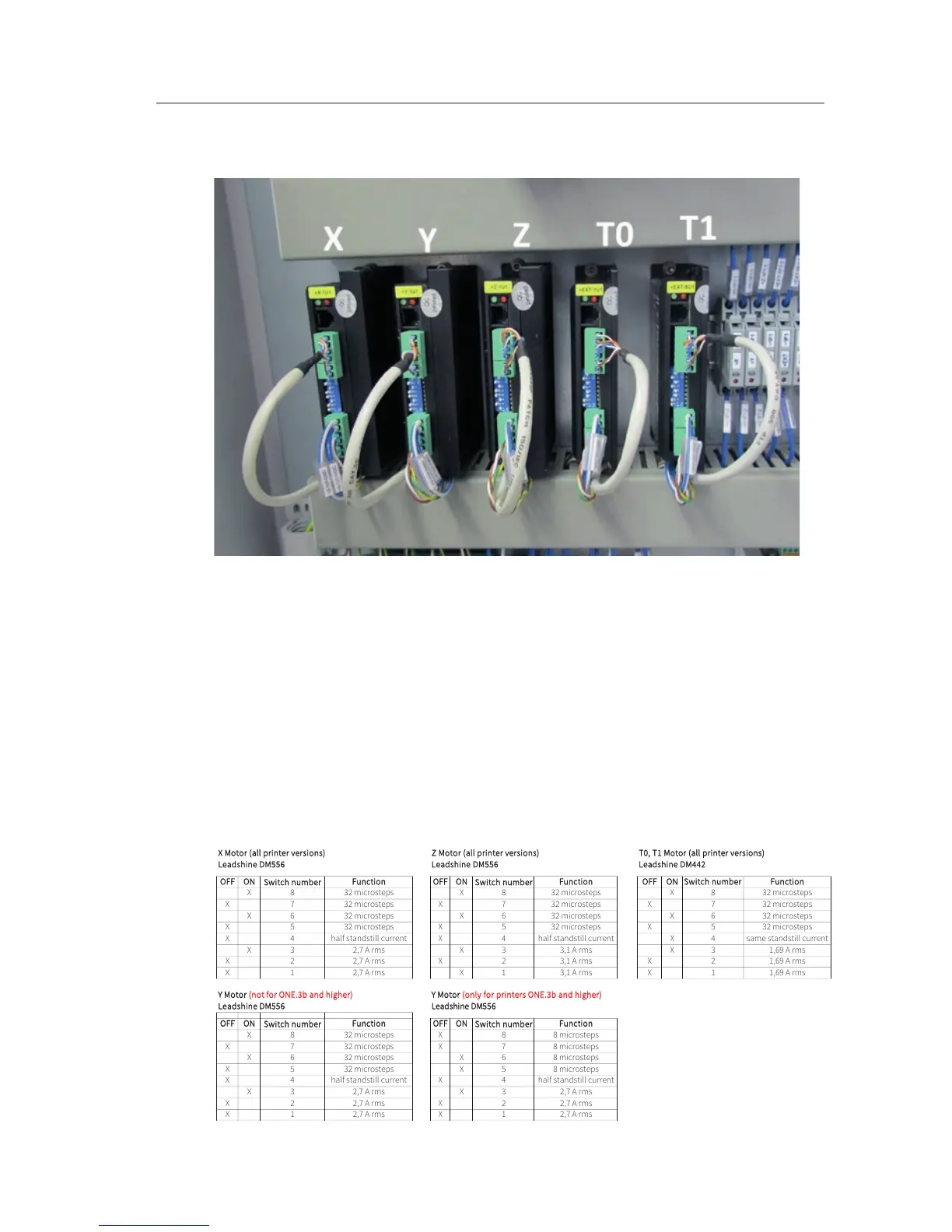

Jumper Settings Output Motors
Output of each motor has to have correct jumper settings (white switches on blue
panel)
Each output comes with green and red LED´s which display issues in case the
motors are not working proper:
› All LED´s green: everything working proper
› All LED´s red: bug --▷ needs replacement
› Single LEDs red: fuse triggered, if not faulty wiring or replacement is needed
Note: Dierent jumper settings for Y Motor depending on printer version. Please
note also the information in VI-C Maintenance Config Overview from 2016-04-20.
II-B 7/7
endstufen_einstellung
Page 1
OFF ON
Switch number
Function OFF ON
Switch number
Function OFF ON Switch number Function
X 8 32 microsteps X 8 32 microsteps X 8 32 microsteps
X 7 32 microsteps X 7 32 microsteps X 7 32 microsteps
X 6 32 microsteps X 6 32 microsteps X 6 32 microsteps
X 5 32 microsteps X 5 32 microsteps X 5 32 microsteps
X 4 half standstill current X 4 half standstill current X 4 same standstill current
X 3 2,7 A rms X 3 3,1 A rms X 3 1,69 A rms
X 2 2,7 A rms X 2 3,1 A rms X 2 1,69 A rms
X 1 2,7 A rms X 1 3,1 A rms X 1 1,69 A rms
OFF ON
Switch number
Function OFF ON
Switch number
Function
X 8 32 microsteps X 8 8 microsteps
X 7 32 microsteps X 7 8 microsteps
X 6 32 microsteps X 6 8 microsteps
X 5 32 microsteps X 5 8 microsteps
X 4 half standstill current X 4 half standstill current
X 3 2,7 A rms X 3 2,7 A rms
X 2 2,7 A rms X 2 2,7 A rms
X 1 2,7 A rms X 1 2,7 A rms
Y Motor (only for printers ONE.3b and higher)
L
eadshine DM556
T0, T1 Motor (all printer versions)
X Motor (all printer versions)
Z Motor (all printer versions)
Y Motor (not for ONE.3b and higher)
L
eadshine DM556
