BIGREP ONE GENERATION 3 - Page 71

V. Maintenance BigRep

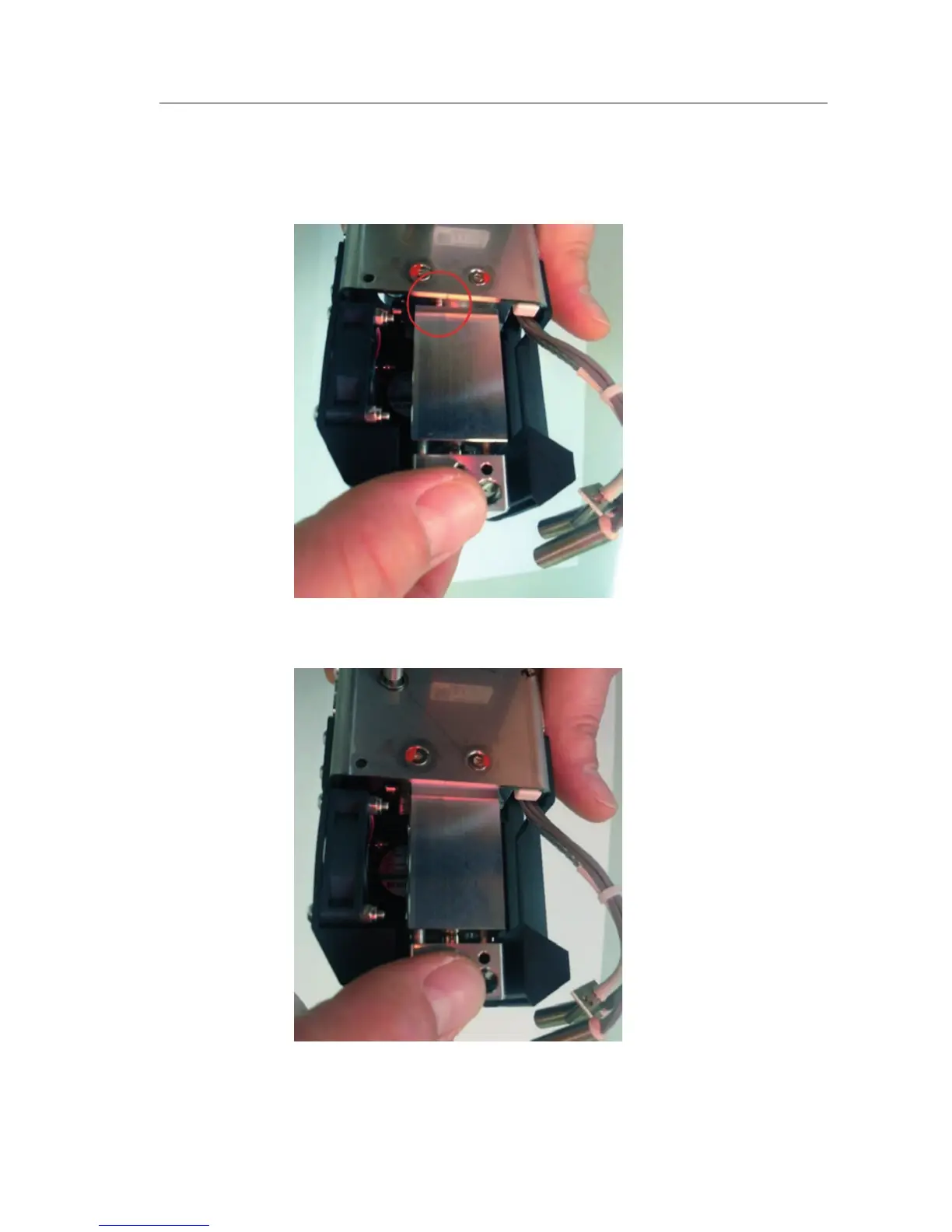

a. Take a new hot end (yellow tube 0.5mm, blue tape 1mm) and push it into
the extruder --▷ there is one adjust pin (marked red) which defines the
directions
b. Push the hot-end flush mounted into the extruder
c. Screw in heating elements
6. Reassemble the extruder at the machine
V-C 3/3
