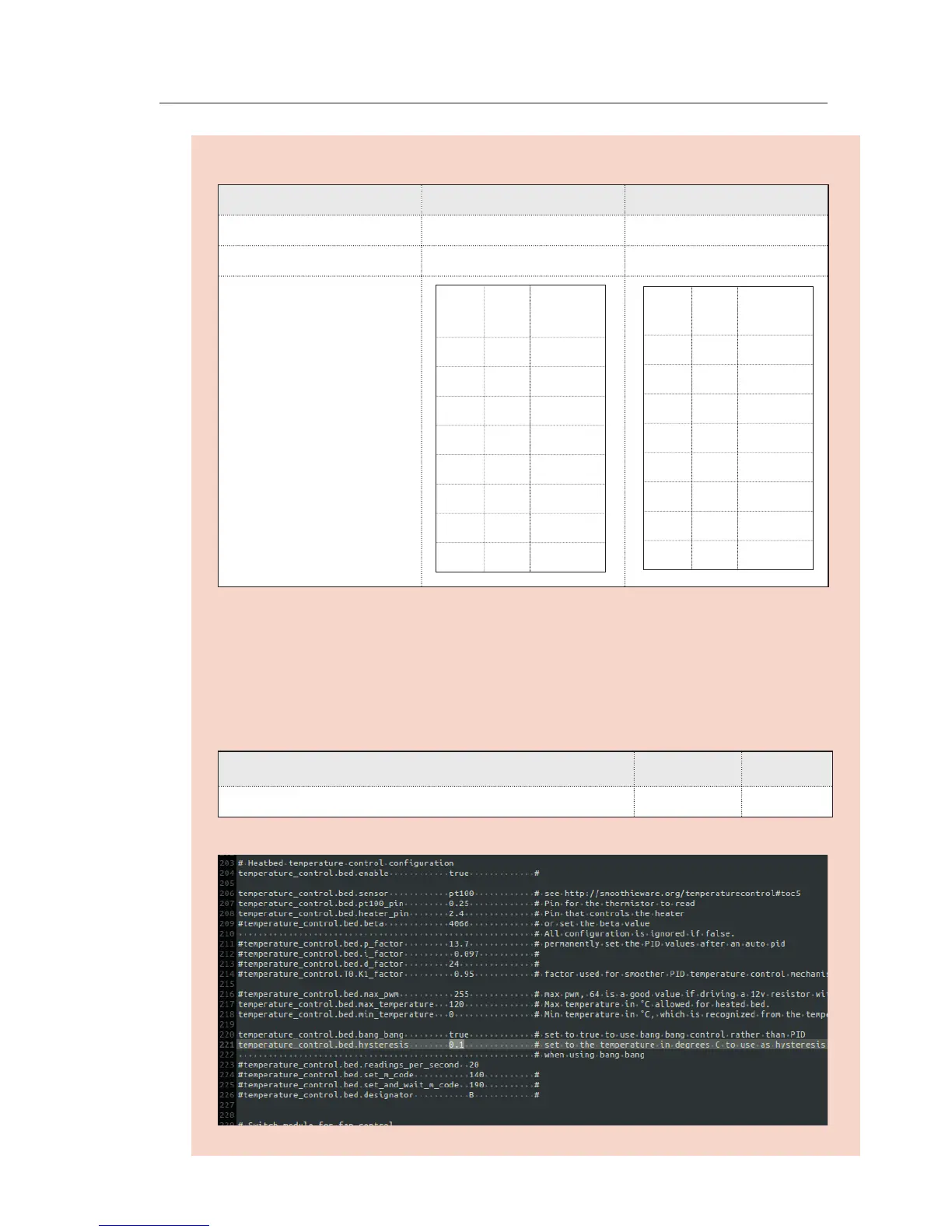

VI. Appendix BigRep
The dipswitches 5- have to be changed as shown in the table below:
Old Value for Y-axis New Value for Y-axis
Microsteps 32 8
Steps per revolution 6400 1600
Switch positions
OFF ON
Switch
number
X 8
X 7
X 6
X 5
X 4
X 3
X 2
X 1
Changing the hysteresis of the heater control for the bed
The controller for the temperature of the bed is controlled with a bang-bang-lo-
gic, which means turning o at max value and turning back on a min value. This
range is set in the config file, the old value is 1 °C. This means that the heater will
turn o at 1 °C above the setpoint ant turn on again at 1 °C below the setpoint. For
a smoother temperature control, the value is changed from 1 to 0.1.
Old New
temperature_control.bed.hysteresis 1 0.1
OFF ON
Switch
number
X 8
X 7
X 6
X 5
X 4
X 3
X 2
X 1
VI-C 2/9
