BIGTREETECH TMC2208 V3.0 - Operating Modes and Control; STEP;DIR Mode Configuration; Working Mode Selection via MS Pins; Setting Working Current Reference

9 pages

To Next Page

To Previous Page

Shenzhen BIGTREE technology co., LTD.

BIG TREE TECH

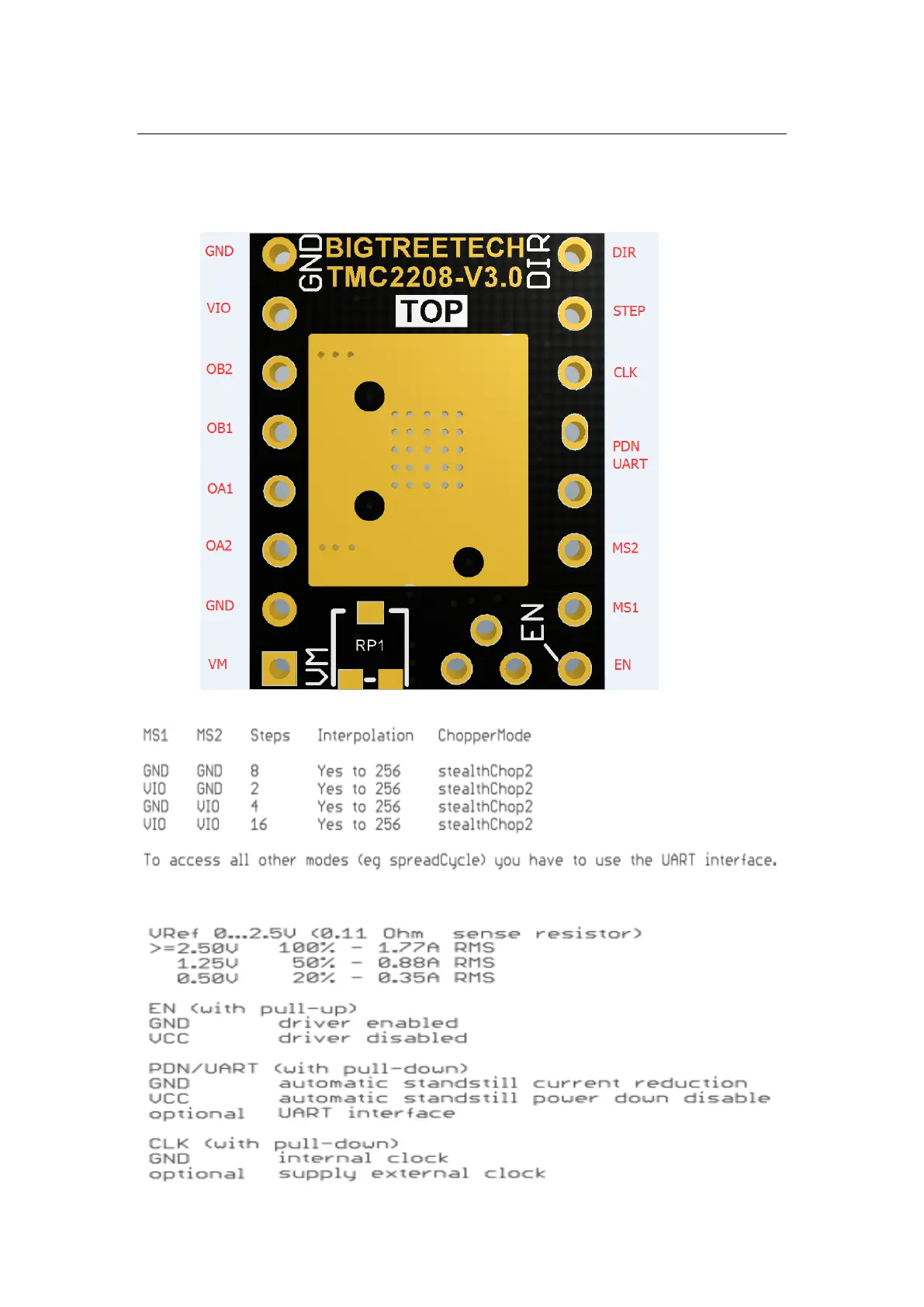

Working mode and potentiometer description

1. STEP/DIRmode：

Choice of working mode：MS1、MS2：

Working Current Reference:
