Dealing with a flat tyre

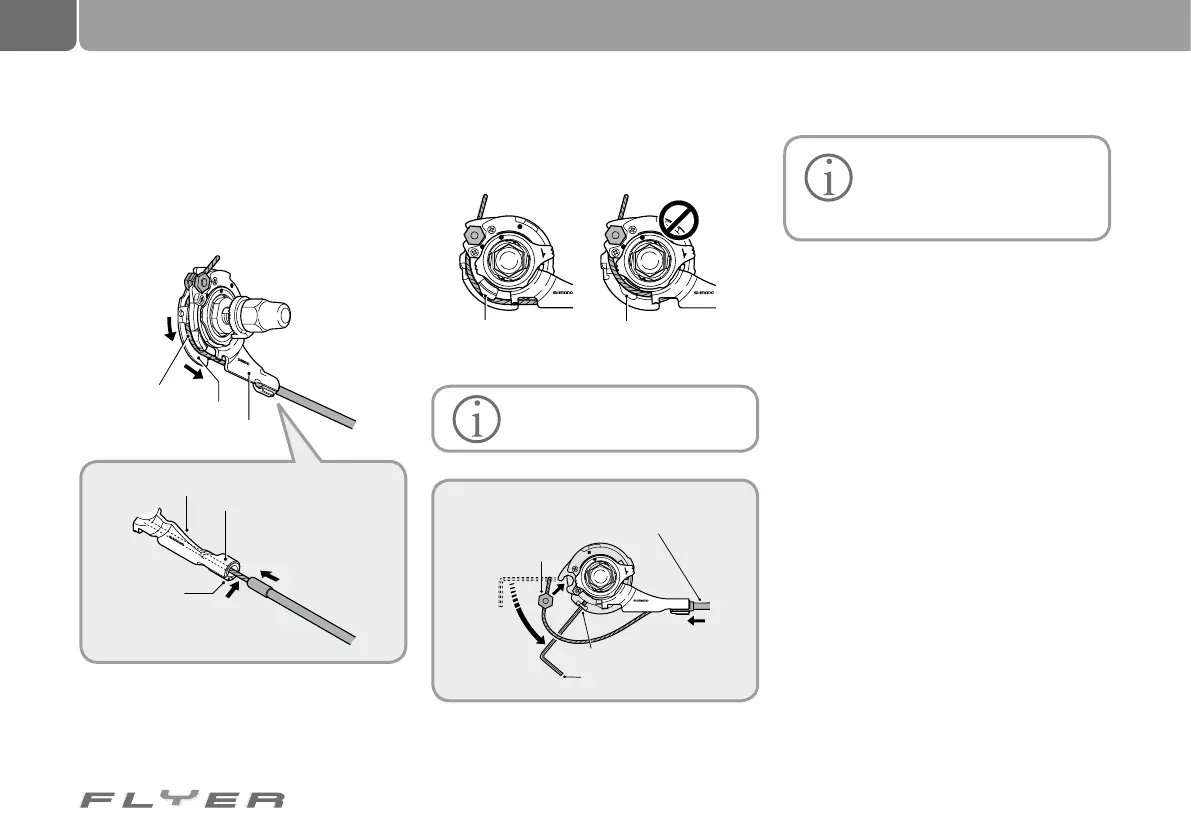

Attach the cable to the pulley as shown in the
diagram. Pull the cable through the slot in the
cassette joint bracket and plug the end of the ca-
ble casing securely into the cable casing holder.
You can make this work easier for yourself by
first inserting the cable casing into the cable
casing holder, then sticking a 2 mm allen key
or a spoke into the hole in the pulley and turn-
ing the pulley in order to fit the cable fasten-
ing screw correctly in the open side.
CJ-8S20
JAPAN
L
O
C
K
CJ-8S20
JAPAN
L
O
C
K
Check if the cable is correctly
inserted in the pulley guides.
You should only take part in pub-
lic road traffic after first taking
your bike for a test ride and test-
ing your hub gear system.
Source: Shimano
®
techdocs
Shifter cable
Cassette joint pulley
Cable casing holder
Pulley hole
Guide Guide
2 mm allen key or #14 spoke
Bracket
Holder
Slot
Insert into
the cable
casing holder
Insert cable
attachment
screw
Insert into cable
casing holder
Turn pulley
Correct Incorrect
Pass through
the slot
