Switching into a lower gear (Lever A)
The number of gears switched is specified by
the lever stroke – for switching just one gear,
push lever (A) to position (1), or into position (2)
to switch two gears. In this way it is possible to
switch a maximum of two gears.

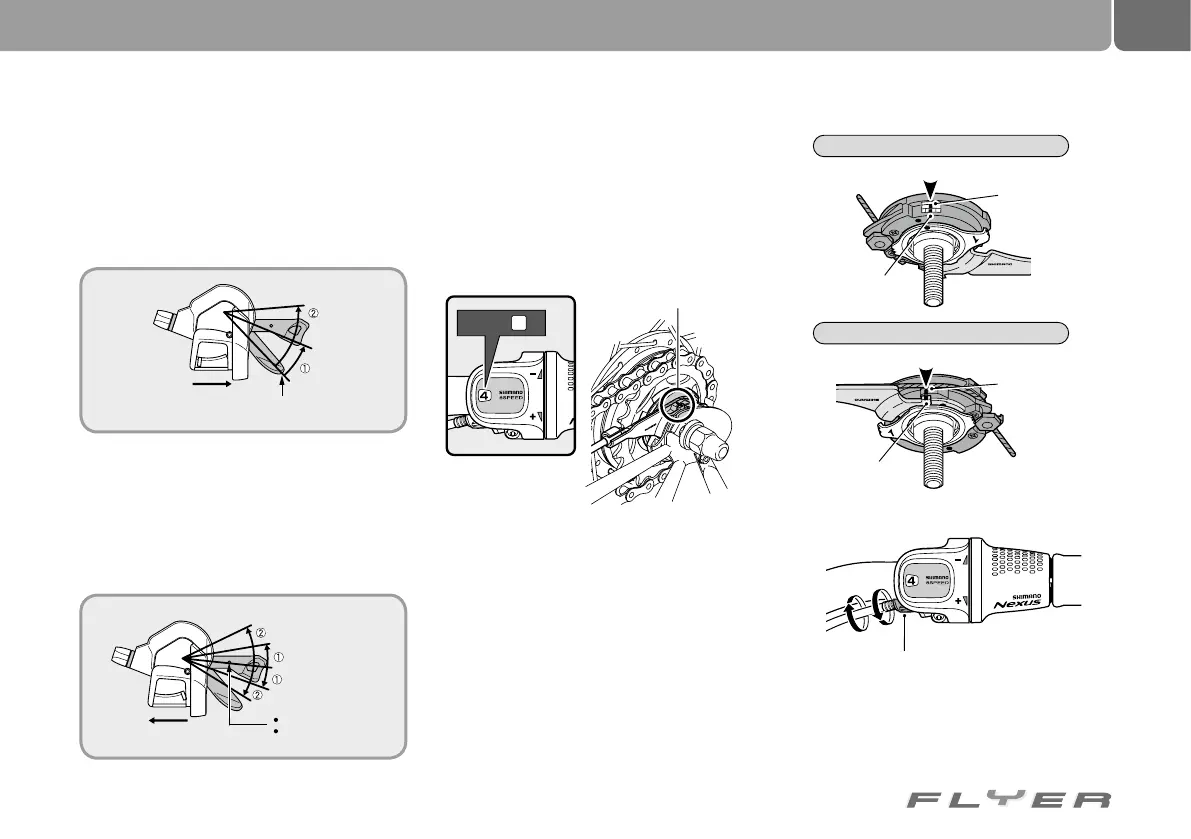

21.2.2 Setting up Shimano hub gears
7 or 8 hear hubs.
• Switch the grip shift into position 4
• Check that the positioning of the yellow
marking on the holder matches that on the
ratchet.
Switching into a higher gear (Lever B)
The number of gears switched is specified by
the lever stroke – for switching just one gear,
push lever (A) to position (1), or into position (2)
to switch two gears. In this way it is possible to
switch a maximum of two gears.
There are two clearly visible yellow markings
on two of the components.
If these yellow marking lines are not
aligned, turn the cable adjustment screw of
the gear lever to align the yellow markings. Af-
ter this, set the gear lever from position 4 to 1
and then back to 4. Check if the yellow marking
lines are still aligned.
Source: Shimano
®
techdocs
C
J
-
8
S
2
0
J
A
P
A
N
L
O
C
K
4
CJ-8S20
JAPAN
L
O
C
K
CJ-8S20
JAPAN
L
O
C
K
Lever (A) starting position
Yellow marking lines
Pulley
Pulley
Bracket
Bracket
Cable adjustment screw
Lever (B) starting position
Set to
Bicycle in normal position
Bicycle in reverse position
Aligned together
Aligned together
1611
1611
2-WAY RELEASE
MULTI RELEASE
