Billy Goat PR550 - Illustrated Parts List

OVERSEEDER/POWER RAKE Owner’s Manual
Part No 350412 350412_E_HI
11

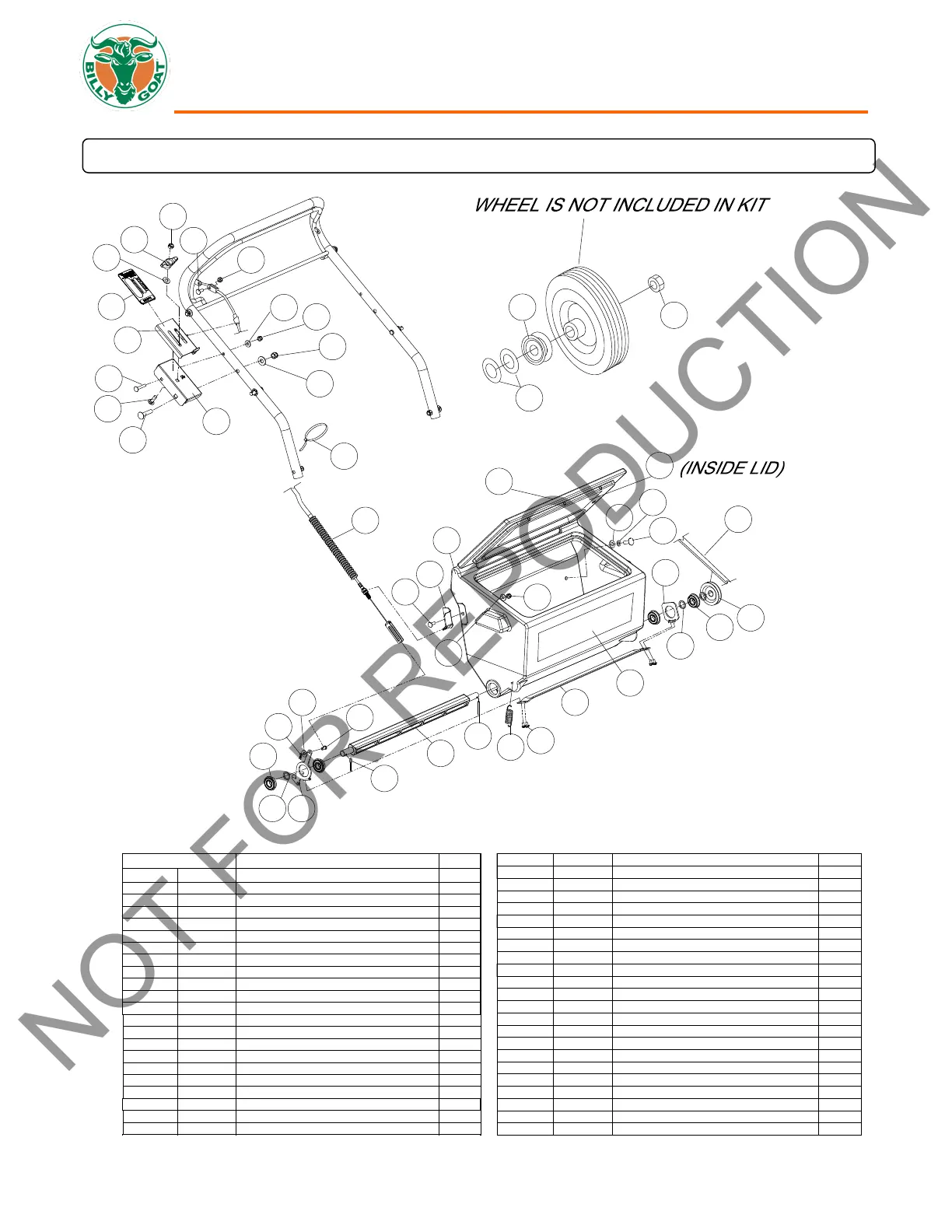

POWER RAKE SEEDER BOX KIT P/N 350395
PARTS LIST
ITEM NO. PART NO. DESCRIPTION QTY
1 350366 BOX AND LID ASSEMBLY 1
2 350390 BRACKET CABLE MOUNTING 1
3 350385 CABLE SEED METERING ASSY 1
4 350378 SHAFT PLASTIC DROP SEEDER 1
5 350271 PLATE DOOR DROP SEEDER 1
6 350272 PLATE DOOR DROP SEEDER END 1
7 350387 PLATE DOOR DROP SEEDER END ARM 1
9 350370 PULLEY 3V GROOVE 0.625" BORE 1
10 8172009 WASHER #10 3/8 SAE 1
11 900321 BEARING CLIP 1.375 OD 4
12 890108 KNOB WING 5/16-18 1
13 400217 SPRING TENSION 2
14 8024040 BOLT CARRIAGE 5/16 - 18 X 1 1
15 8024021 BOLT CARRIAGE 1/4-20 X 3/4" 1
16 8123087 SCREW SELF TAP #10-24 X 3/8" HMS ZP 4
17 8160001 NUT LOCK 1/4 1
18 350389 BRACKET CABLE SEEDER BOX 1
19 8160002 NUT LOCK 5/16 1
20 8177011 WASHER LOCK 5/16 4
21 350369 PULLEY 3V GROOVE 1.530" BORE 1
22 350280 WASHER 0.906 O.D. X 0.656 I.D. X 0.062 7-8
ITEM NO. PART NO. DESCRIPTION QTY
23 8041026 SCREWCAP 5/16-18 x 3/4 4
24 350372 BELT O-RING 5/16 X 15 9/16" 1
25 8197031 PIN COTTER 1/8" X 1" 1
26 9195106 ROLL PIN 1/8 - 1 1/4 1
27 8172020 WASHER 5/16 FENDER 4
28 8172007 WASHER 1/4 SAE 3
29 350392 LABEL SEED METERING 1
30 350386 LABEL DROP SEEDER BOX 1
31 900230 WASHER 1/2 FC 2
32 8161044 NUT LOCK 1/2" THIN HGT 1
33 890456 LABEL HOSE PLUG KD/SV 1
34 350423 LABEL OS BADGING 1
35 8024061 CARRIAGE BOLT 3/8-16 X 1 3/4" 1
36 8024025 CARRIAGE BOLT 1/4-20 X 1 3/4" 1
37 350399 PIN CLEVIS .25 X .61 1
38 900471 PIN HAIR 1/4 ZP 1
39 8160003 NUT LOCK 3/8-16 HEX 1
40 8171004 WASHER 3/8 FC 2
41 350391 BRACKET MOUNTING METERING SEED 1
42 8059135 SCREW MACHINE #10-24 X 5/8 1
43 8164005 NUT LOCK LT #10-24 HEX 1
44 900407 TY-WRAP 1
32
31
21
24
30
23
20
9
22
11
6
33
1
17
5
28
27
34
16
13
4
26
43
17
28
40
39
19
42
12
10
29
41
36
14
3
44
15
28
35
25
38
11
722
37
2
18
