Figure 15: Test the inversion table by hand for
smooth and steady rotation and ensure that all
fasteners are secure.

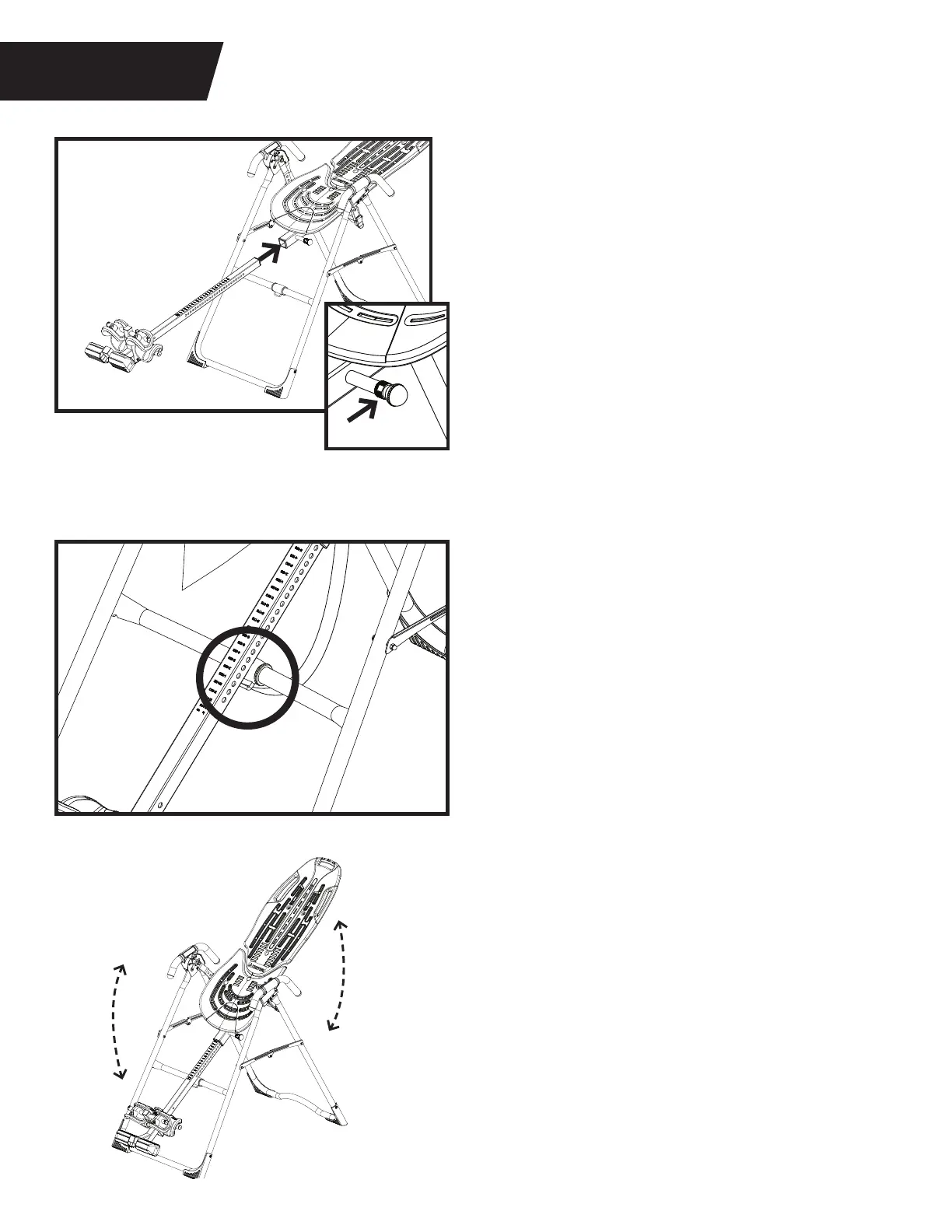

Figure 13: Stand on the LEFT side of the
A-Frame, holding the Main Shaft with the height
markings facing up. Begin to slide the end of the
Main Shaft into the Main Shaft Housing at the
base of the Table Bed.
Figure 13a: With your right hand, pull out the
Height-Selector Locking Pin and slide the
Main Shaft in further. Release in the desired
height setting. Refer to the User Guide for more
information on selecting your height setting.
Figure 14: The Main Shaft MUST REST against the
Crossbar of the A-Frame.
IMPORTANT: The Crossbar prevents the Table Bed
from rotating forward when the user steps on the
Ankle Comfort Dial. If the Main Shaft does not rest
on the Crossbar as shown here, then the Table
Bed has been assembled backwards onto the
A-Frame. This must be corrected before use.
Figure 13
Figure 14
Figure 13a
Figure 15
ASSEMBLE MAIN SHAFT
TO TABLE BED
STEP 4
9
