Bilt Teeter EP-560 - STEP 1 Assemble A-Frame & Handles

5
ASSEMBLE AFRAME & HANDLES

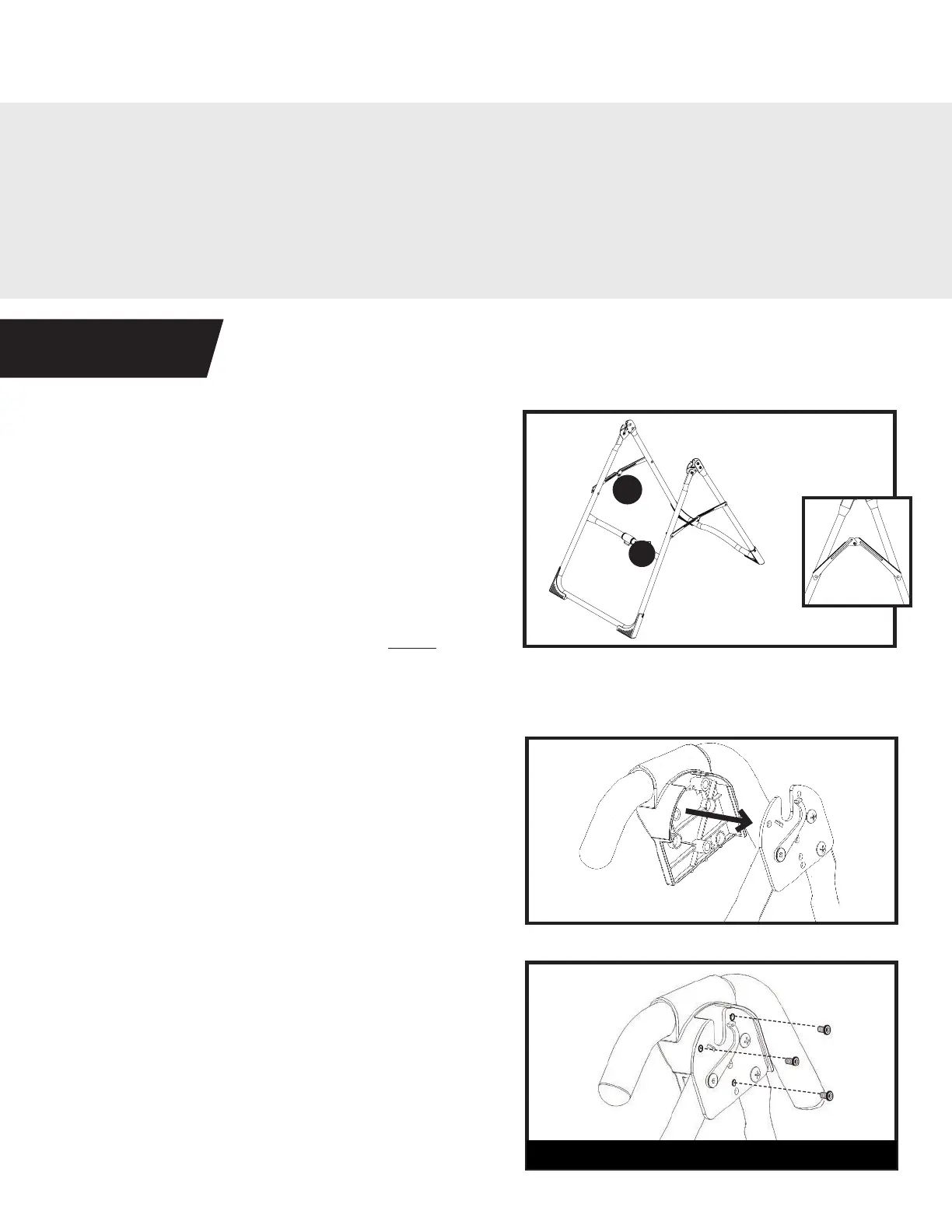

Figure 1: On a level surface, position the A-Frame
so that it is standing upright and the Stability Feet
are on the ground.
Gently push down on the Spreader Arms to
ensure they are fully open and in the “locked”
position as shown.
Look for temporary circular assembly assistance
labels on the A-Frame. RIGHT, LEFT, FRONT,
and REAR indicate your position while using the
equipment, not facing it. These labels can be
removed easily upon completion of assembly.
Figure 2: Use the Handle Assembly Hardware Kit
to assemble the Handles.
Determine the left or right handles, marked with
an embossed L / R on the inside of the black
plastic part of each handle. Align the black plastic
part of the corresponding handle (left / right)
over the outside edge of the Hinge Plate on the
A-Frame.
Figure 3: Insert and hand-tighten 3 × Allen Head
Bolts through the Hinge Plate into the Handle.
Repeat with other Handle. Proceed to tighten
all fasteners with the 5mm Allen Wrench, being
careful not to over-tighten.
Figure 2
Figure 3
3x Allen Head Bolts F50071 per side
Unpack and Prepare Your Workspace
• If possible, assemble the equipment at or near the space in which you intend to use it to avoid moving it later.
• Unpack all parts and support materials. Set aside packing materials and clear your work area.
• Locate the Hardware Kits packaged with the small parts bag. They are labeled to correspond with the
assembly process.
LET’S GET STARTED
STEP 1
A - Spreader Arms B - Crossbar
A
B
UNLOCKED
Figure 1
LOCKED
RIGHT LEFT
REAR
FRONT
A
B
