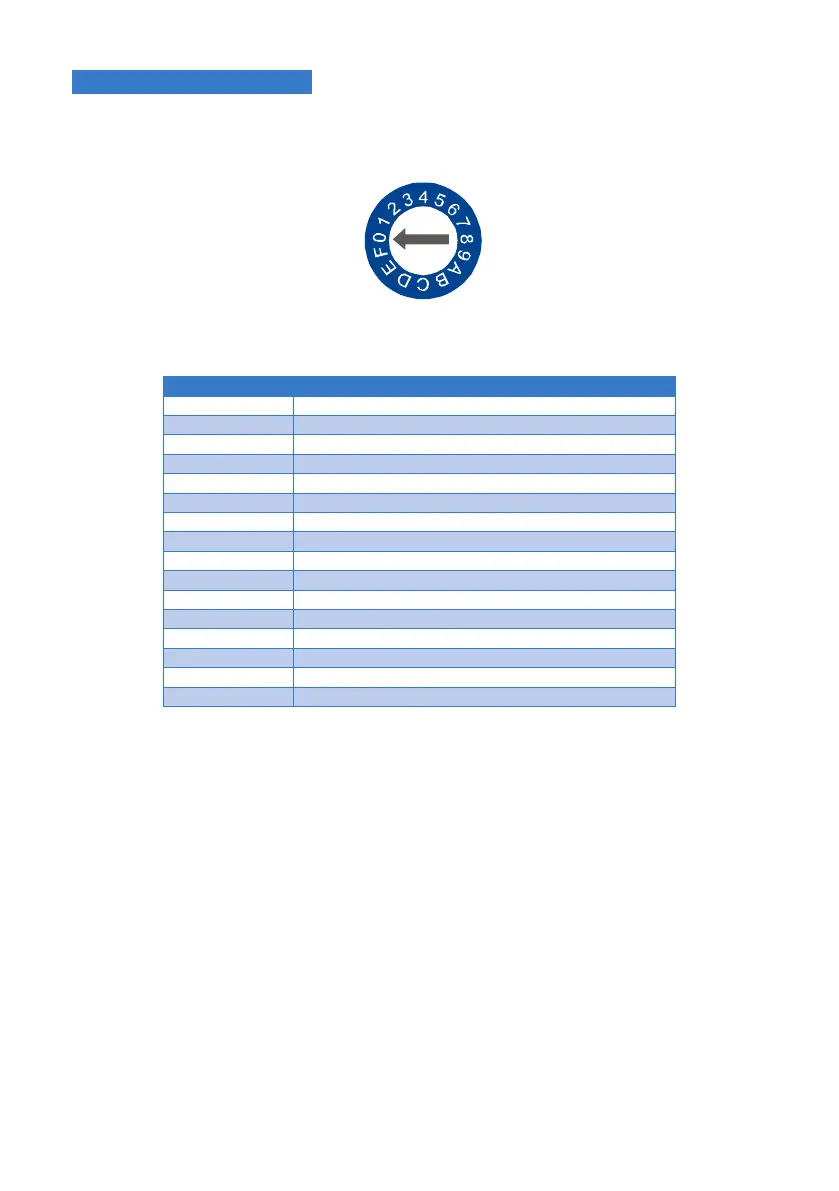

7. EDID MANAGEMENT
EDID (Extended Display Identification Data) is a data structure pr vided by a digital display to
describe its capabilities to a video source. This device features multiple EDID presets which can
be performed using the EDID rotary switch on rear panel.
By default, the EDID switch is set in position 0. Should any compatibility issues occur, please
set EDID using the following table.
Position Description
0 (default)
Copy EDID from HDMI OUT
1 Set 3840x2160@60Hz 2CH as input EDID
2 Set 3840x2160@30Hz 2CH as input EDID
3 Set 1920x1080@60Hz 2CH as input EDID
4 Set 1280x720@60Hz 2CH as input EDID
5 Set 1920x1200@60Hz 2CH as input EDID
6 Set 1680x1050@60Hz 2CH as input EDID
7 Set 1600x1200@60Hz 2CH as input EDID
8 Set 1600x900@60Hz 2CH as input EDID
9 Set 1440x900@60Hz 2CH as input EDID
A Set 1400x1050@60Hz 2CH as input EDID
B Set 1360x768@60Hz 2CH as input EDID
C Set 1280x1024@60Hz 2CH as input EDID
D Set 1280x960@60Hz 2CH as input EDID
E Set 1280x768@60Hz 2CH as input EDID
F Set 1024x768@60Hz 2CH as input EDID
Note:
1. If EDID copy fails, 1920x1080@60Hz with stereo audio will be set as input EDID.
2. You must reboot the device for EDID settings to take effect.
