Binary 260 Series User Manual

7

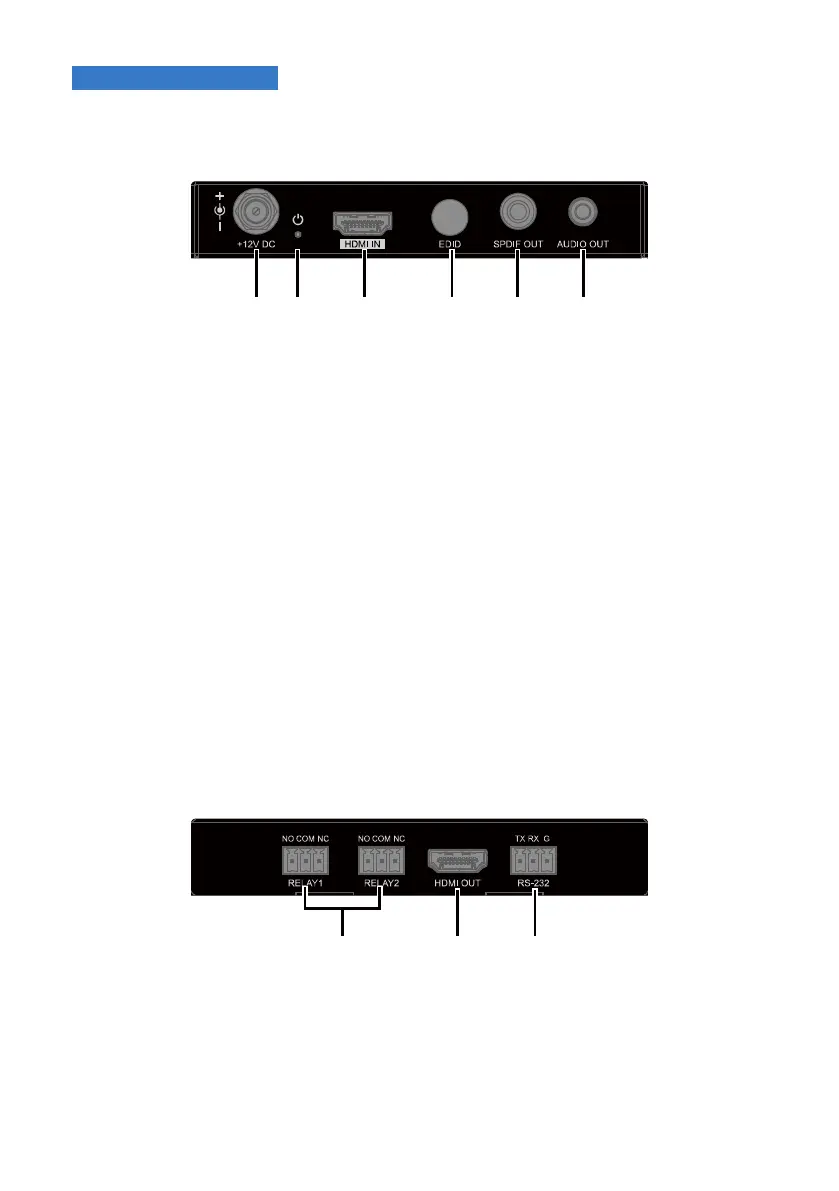

5. DEVICE LAYOUT
5.1. B-260-HDMI-CTRL Front Panel
1. DC 12V
Connect to the power adapter provided.
2. POWER LED
On/Off: The device is powered on/off.
3. HDMI IN
Connect to an HDMI source.
4. EDID
Switch for EDID Management with 15 EDID presets.
5. S/PDIF OUT
RCA coaxial port for HDMI audio de-embedded output. Connect to an audio receiver for
S/PDIF digital audio output.
6. AUDIO OUT
3.5mm audio jack for HDMI audio de-embedded output. Connect to an audio receiver for
stereo audio output.
5.2. B-260-HDMI-CTRL Rear Panel
1. RELAY1-2
Connect to the projector screen for Relay control (turn on or off the screen) when the
change of input signal status is detected.
2. HDMI Out
Connect to an HDMI display.
654321
321
