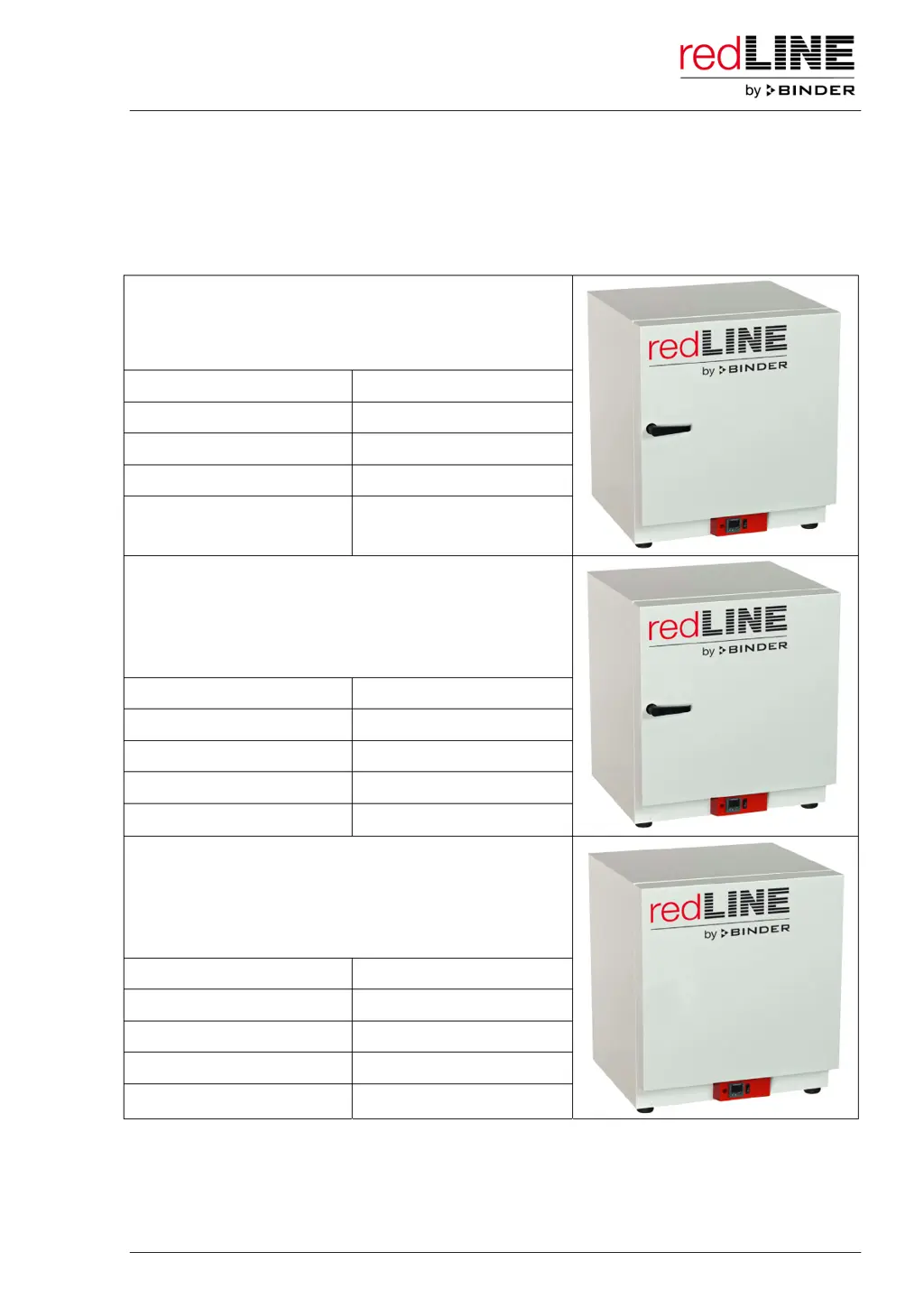

Issue 12/2010 Art. No. 7001-0201

Operating Manual

redLINE RE

Gravity Convection Oven

Model Art. no.

RE 53 (230 V) 9090-0001, 9190-0001

RE 53-UL (100-120 V) 9090-0002, 9190-0002

RE 115 (230 V) 9090-0007, 9190-0007

RE 115-UL (100-120 V)

9090-0008, 9190-0008

redLINE RF

Mechanical Convection Oven

Model Art. no.

RF 53 (230 V) 9090-0003, 9190-0003

RF 53-UL (100-120 V) 9090-0004, 9190-0004

RF 115 (230 V) 9090-0009, 9190-0009

RF 115-UL (100-120 V)

9090-0010, 9190-0010

redLINE RI

Incubator

Model Art. no.

RI 53 (230 V) 9090-0005, 9190-0005

RI 53-UL (100-120 V) 9090-0006, 9190-0006

RI 115 (230 V) 9090-0011, 9190-0011

RI 115-UL (100-120 V)

9090-0012, 9190-0012

www.binder-redline.com

Table of Contents

Questions and Answers

P
Paul LoveAug 14, 2025
What to do if my Binder redLINE RI 53 Convection Oven unit is without function?
- W
  Wendy DorseyAug 14, 2025
  If your Binder Convection Oven is not working, there could be several reasons: * The unit might be turned off. In this case, turn it on at the main power switch. * There might be no power supply. Check the connection to the power supply. * The voltage could be wrong. Verify the power supply for the correct voltage (100-120V or 230V). * The unit fuse may have blown. Inspect the unit fuse and replace it if needed. If it blows again, contact a service technician. * The controller might be defective. In this case, contact a service technician.
T
Timothy ReyesAug 17, 2025
Why is my Binder redLINE RI 53 Convection Oven set-point temperature not reached?
- E
  Erica MaxwellAug 17, 2025
  If the set-point temperature is not reached in your Binder Convection Oven after the specified time, consider the following possibilities: * The unit door may not be properly closed. Ensure the door is fully closed. * The door gasket might be defective. If so, replace the door gasket. * The controller may not be adjusted correctly, or the adjustment interval may have been exceeded. Calibrate and adjust the controller.
K
Kelly HayesAug 21, 2025
What to do if Binder redLINE RI 53 chamber doesn’t heat up and heating pilot lamp OP1 is lit?
- J
  Jared ChanAug 21, 2025
  If the chamber of your Binder Convection Oven isn’t heating up, but the heating pilot lamp OP1 is lit, the heating element might be defective, and you should contact a service technician. Additionally, a semiconductor relay might be defective.
S
Sarah MillsAug 25, 2025
What to do if my Binder redLINE RI 53 chamber is heating permanently?
- S
  Sharon SampsonAug 25, 2025
  If your Binder Convection Oven chamber is heating permanently and the set-point is not being held, it could be due to several reasons: * The controller may be defective. In this case, contact a service technician. * The temperature sensor might be defective. * A semiconductor relay might be defective. * The controller may not be adjusted correctly, or the adjustment interval may have been exceeded. Calibrate and adjust the controller.
R
Robert HallAug 27, 2025
What to do if Binder redLINE RI 53 Convection Oven chamber doesn’t heat up, heating pilot lamp OP1 is not lit, controller shows actual value and set-point value, and the set-point is higher than the actual value?
- M
  michael74Aug 27, 2025
  If the chamber of your Binder Convection Oven isn’t heating up, the heating pilot lamp OP1 is not lit, the controller displays both the actual and set-point values (with the set-point higher), it could be due to a defective semiconductor relay, and you should contact a service technician. It is also possible that the controller is defective.
E
emilyrodgersAug 30, 2025
Why are there deviations from the indicated heating-up times in my Binder redLINE RI 53?
- J
  Jaime JuarezAug 30, 2025
  Deviations from the indicated heating-up times in your Binder Convection Oven can occur if the chamber is fully loaded. To resolve this, either reduce the load in the oven or allow for longer heating-up times.
B
Brandy SimmonsSep 3, 2025
What to do if Binder redLINE RI 53 controller returns to the main menu?
- L
  Laura MeyerSep 3, 2025
  If the controller of your Binder Convection Oven returns to the main menu from any level, it may be because no button was pressed for more than 1 minute. To prevent this, repeat your entries and enter the values more rapidly.
R
Rebecca TurnerSep 6, 2025
What to do if Binder Convection Oven chamber doesn’t heat up, heating pilot lamp OP1 is not lit, controller shows the actual value and “OFF”. Scrolling message “TIMER END”?
- V
  Valerie StevensSep 6, 2025
  If the chamber of your Binder Convection Oven isn’t heating up, the heating pilot lamp OP1 is not lit, the controller displays the actual value and “OFF” with a scrolling message “TIMER END”, the timer has likely expired, and the controller is in stand-by mode. To fix this, repeat the timer programming or start/change to a different operating mode.
H
humphreyjamesSep 9, 2025
What to do if Binder redLINE RI 53 Convection Oven chamber doesn’t heat up, heating pilot lamp OP1 is not lit, controller shows the actual value and “OFF”?
- M
  Michael ArmstrongSep 9, 2025
  If the chamber of your Binder Convection Oven isn’t heating up, the heating pilot lamp OP1 is not lit and the controller shows the actual value and “OFF”, the controller is likely in operating mode stand-by. To resolve this, change to a different operating mode.

Summary

Safety Guidelines

General Installation and Operation Safety

General safety precautions for installation and operation of the chambers.

Unit Description

Control Panel Details

Describes the main control panel and its functions.

Handling and Installation

Safe Lifting and Transportation

Installation Site Requirements

Requirements for the installation site and environmental conditions.

Equipment Installation

Electrical Connection

Guides on connecting the unit to the power supply.

Unit Start-Up

Controller Overview

Powering On the Unit

Operating the Controller

Operating Modes

Description of the different operating modes (Standby, Auto, Manual).

Automatic Mode Set-Point Entry

How to set and manage temperature set-points in Automatic Mode.

Manual Mode Operation

How to manually control heating power.

Timer Operation

Using the built-in timer function for operations.

Temperature Controller Calibration

Calibration Check Procedure

Steps to perform a temperature accuracy check.

Two-Point Adjustment Procedure

Detailed guide for adjusting controller settings.

Cleaning and Decontamination

Maintenance Schedule

Troubleshooting Common Issues

Technical Description

Technical Data

Comprehensive technical specifications for different models.

Summary

Safety Guidelines

General Installation and Operation Safety

General safety precautions for installation and operation of the chambers.

Unit Description

Control Panel Details

Describes the main control panel and its functions.

Handling and Installation

Safe Lifting and Transportation

Installation Site Requirements

Requirements for the installation site and environmental conditions.

Equipment Installation

Electrical Connection

Guides on connecting the unit to the power supply.

Unit Start-Up

Controller Overview

Powering On the Unit

Operating the Controller

Operating Modes

Description of the different operating modes (Standby, Auto, Manual).

Automatic Mode Set-Point Entry

How to set and manage temperature set-points in Automatic Mode.

Manual Mode Operation

How to manually control heating power.

Timer Operation

Using the built-in timer function for operations.

Temperature Controller Calibration

Calibration Check Procedure

Steps to perform a temperature accuracy check.

Two-Point Adjustment Procedure

Detailed guide for adjusting controller settings.

Cleaning and Decontamination

Maintenance Schedule

Troubleshooting Common Issues

Technical Description

Technical Data

Comprehensive technical specifications for different models.
