MAINTENANCE SYMBOLS
ITEM NUMBER
DISASSEMBLY ORDER (Reverse order for assembly)
PETROLEUM JELLY/GREASE
THREAD SEALANT (PTFE tape)
FX4 & FXL4 SEAL ORIENTATION
DETAIL "A" UPPER SEAL DETAIL "B" LOWER SEAL

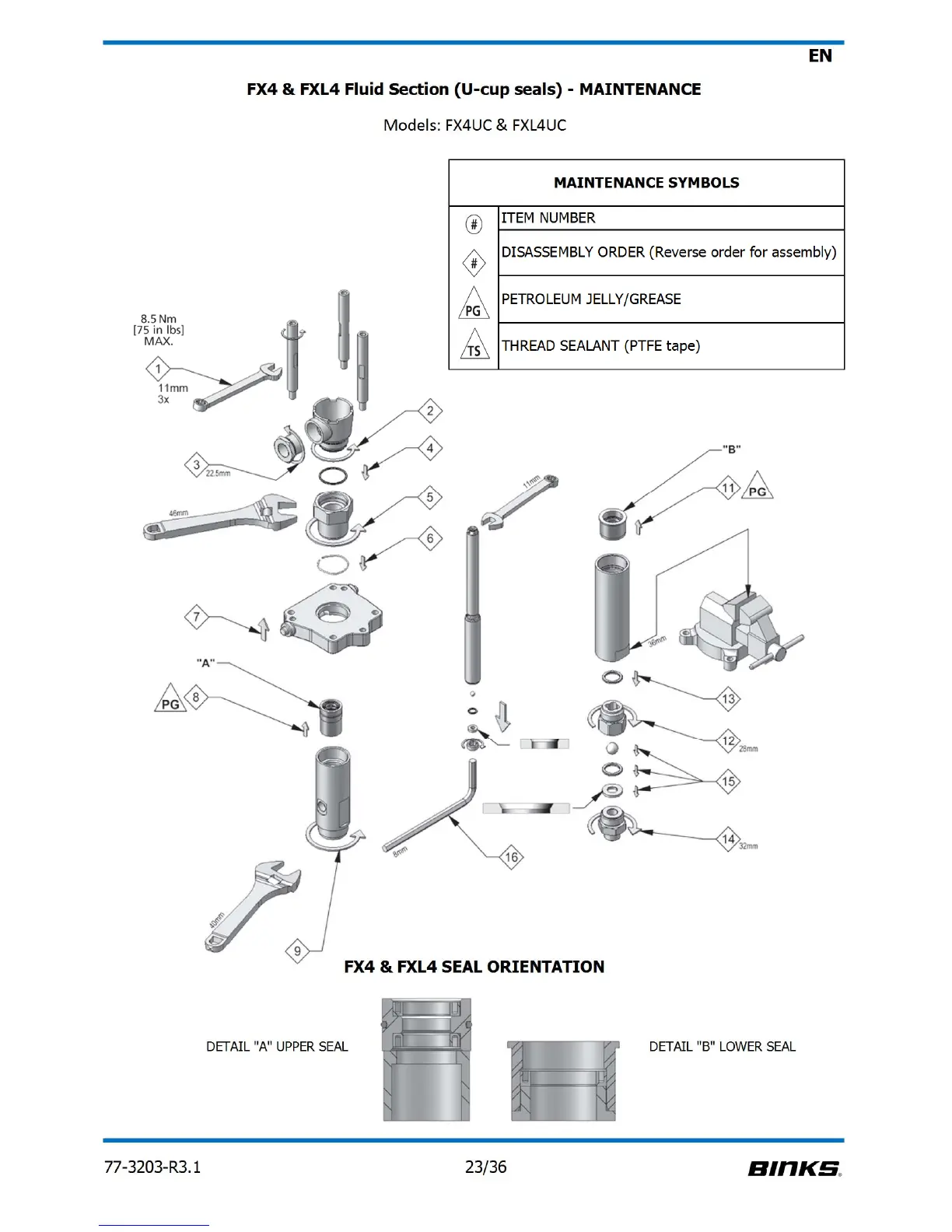

FX4 & FXL4 Fluid Section (U-cup seals) - MAINTENANCE
Models:FX4UC&FXL4UC
