EN
MAINTENANCE SYMBOLS
ITEM NUMBER
DISASSEMBLY ORDER (Reverse order for assembly)
PETROLEUM JELLY/GREASE
THREAD SEALANT (PTFE tape)

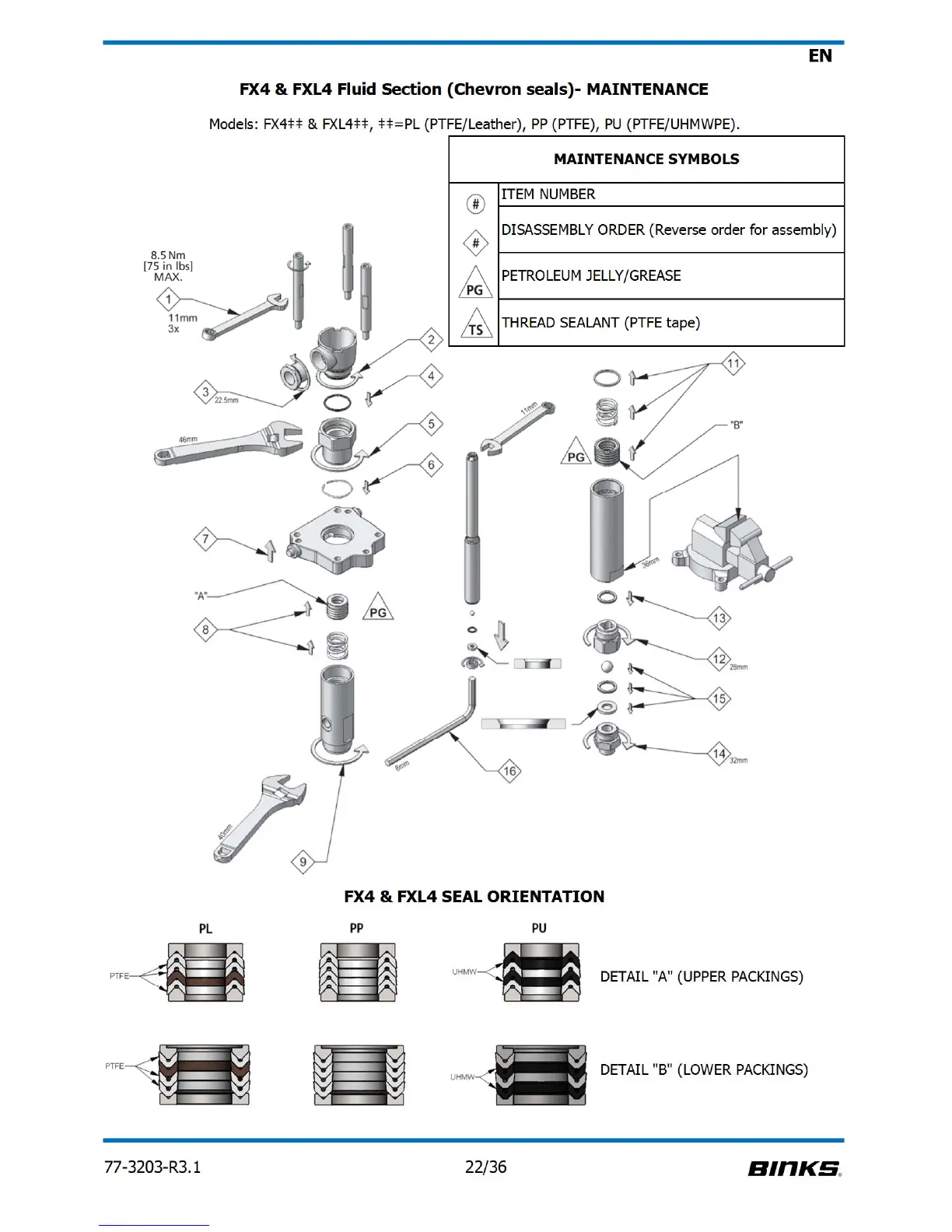

FX4 & FXL4 Fluid Section (Chevron seals)- MAINTENANCE
Models: FX4‡‡ & FXL4‡‡, ‡‡=PL (PTFE/Leather), PP (PTFE), PU (PTFE/UHMWPE).
FX4 & FXL4 SEAL ORIENTATION
DETAIL "A" (UPPER PACKINGS)
DETAIL "B" (LOWER PACKINGS)
