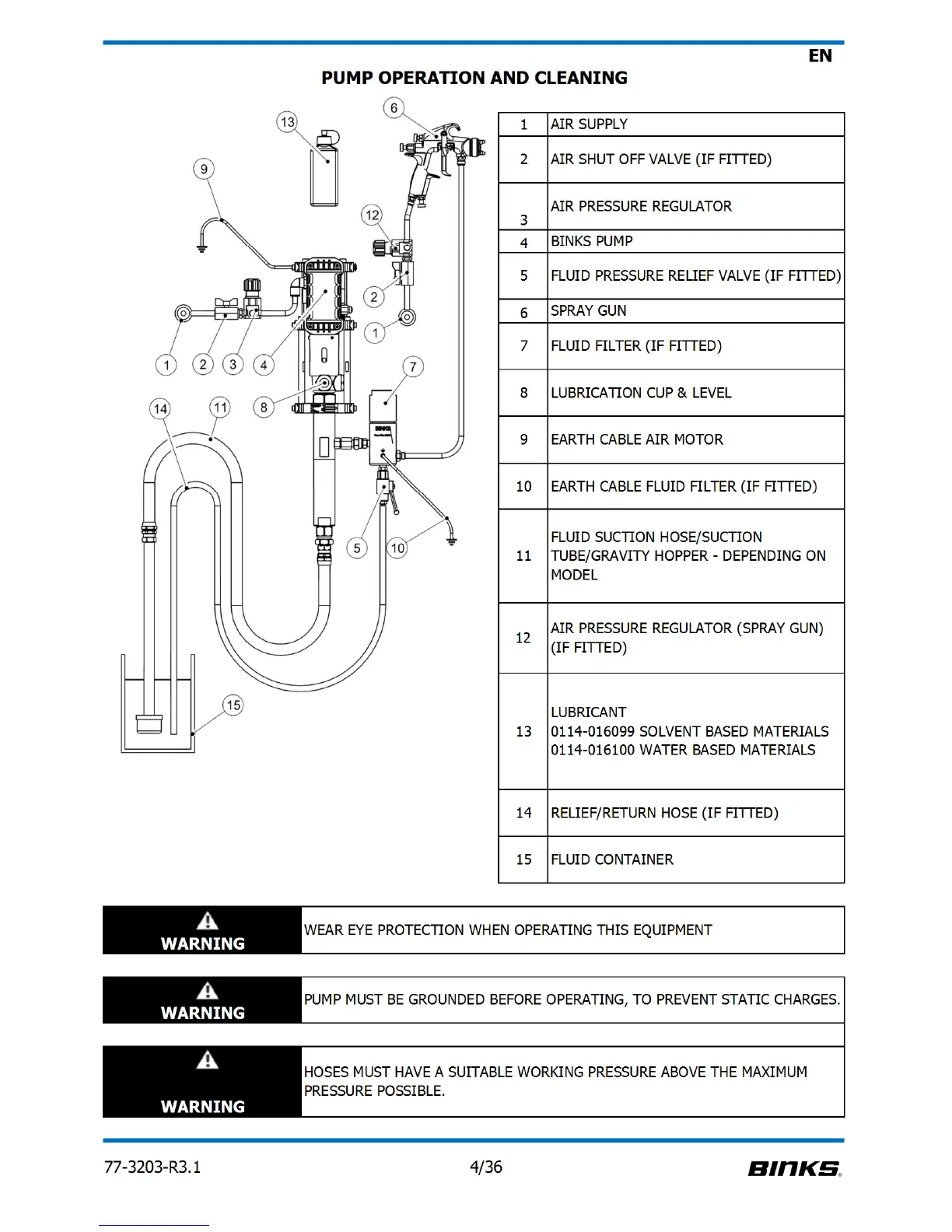

PUMP OPERATION AND CLEANING
AIR SUPPLY
2 AIR SHUT OFF VALVE (IF FITTED)
3
AIR PRESSURE REGULATOR
BINKS PUMP
5 FLUID PRESSURE RELIEF VALVE (IF FITTED)
SPRAY GUN
7 FLUID FILTER (IF FITTED)
8 LUBRICATION CUP & LEVEL
9 EARTH CABLE AIR MOTOR
10 EARTH CABLE FLUID FILTER (IF FITTED)
11
FLUID SUCTION HOSE/SUCTION
TUBE/GRAVITY HOPPER - DEPENDING ON
MODEL
12
AIR PRESSURE REGULATOR (SPRAY GUN)
(IF FITTED)
13
LUBRICANT
0114-016099 SOLVENT BASED MATERIALS
0114-016100 WATER BASED MATERIALS
14 RELIEF/RETURN HOSE (IF FITTED)
15 FLUID CONTAINER
WARNING
WEAR EYE PROTECTION WHEN OPERATING THIS EQUIPMENT
WARNING
PUMP MUST BE GROUNDED BEFORE OPERATING, TO PREVENT STATIC CHARGES.
WARNING
HOSES MUST HAVE A SUITABLE WORKING PRESSURE ABOVE THE MAXIMUM
PRESSURE POSSIBLE.
