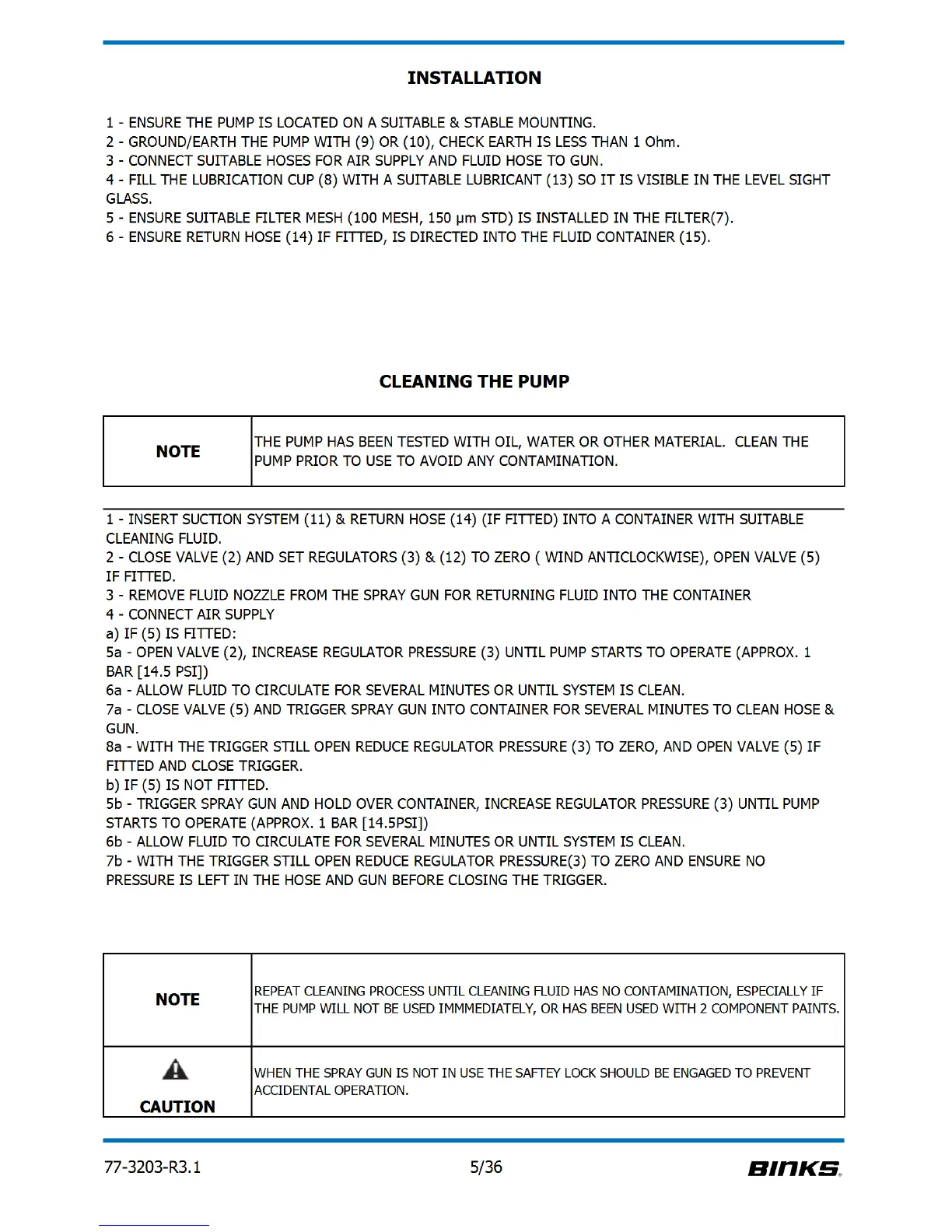

INSTALLATION
1 - ENSURE THE PUMP IS LOCATED ON A SUITABLE & STABLE MOUNTING.
2 - GROUND/EARTH THE PUMP WITH (9) OR (10), CHECK EARTH IS LESS THAN 1 Ohm.
3 - CONNECT SUITABLE HOSES FOR AIR SUPPLY AND FLUID HOSE TO GUN.
4 - FILL THE LUBRICATION CUP (8) WITH A SUITABLE LUBRICANT (13) SO IT IS VISIBLE IN THE LEVEL SIGHT
GLASS.
5 - ENSURE SUITABLE FILTER MESH (100 MESH, 150 µm STD) IS INSTALLED IN THE FILTER(7).
6 - ENSURE RETURN HOSE (14) IF FITTED, IS DIRECTED INTO THE FLUID CONTAINER (15).
CLEANING THE PUMP
NOTE
THE PUMP HAS BEEN TESTED WITH OIL, WATER OR OTHER MATERIAL. CLEAN THE
PUMP PRIOR TO USE TO AVOID ANY CONTAMINATION.
1 - INSERT SUCTION SYSTEM (11) & RETURN HOSE (14) (IF FITTED) INTO A CONTAINER WITH SUITABLE
CLEANING FLUID.
2 - CLOSE VALVE (2) AND SET REGULATORS (3) & (12) TO ZERO ( WIND ANTICLOCKWISE), OPEN VALVE (5)
IF FITTED.
3 - REMOVE FLUID NOZZLE FROM THE SPRAY GUN FOR RETURNING FLUID INTO THE CONTAINER
4 - CONNECT AIR SUPPLY
a) IF (5) IS FITTED:
5a - OPEN VALVE (2), INCREASE REGULATOR PRESSURE (3) UNTIL PUMP STARTS TO OPERATE (APPROX. 1
BAR [14.5 PSI])
6a - ALLOW FLUID TO CIRCULATE FOR SEVERAL MINUTES OR UNTIL SYSTEM IS CLEAN.
7a - CLOSE VALVE (5) AND TRIGGER SPRAY GUN INTO CONTAINER FOR SEVERAL MINUTES TO CLEAN HOSE &
GUN.
8a - WITH THE TRIGGER STILL OPEN REDUCE REGULATOR PRESSURE (3) TO ZERO, AND OPEN VALVE (5) IF
FITTED AND CLOSE TRIGGER.
b) IF (5) IS NOT FITTED.
5b - TRIGGER SPRAY GUN AND HOLD OVER CONTAINER, INCREASE REGULATOR PRESSURE (3) UNTIL PUMP
STARTS TO OPERATE (APPROX. 1 BAR [14.5PSI])
6b - ALLOW FLUID TO CIRCULATE FOR SEVERAL MINUTES OR UNTIL SYSTEM IS CLEAN.
7b - WITH THE TRIGGER STILL OPEN REDUCE REGULATOR PRESSURE(3) TO ZERO AND ENSURE NO
PRESSURE IS LEFT IN THE HOSE AND GUN BEFORE CLOSING THE TRIGGER.
NOTE
REPEAT CLEANING PROCESS UNTIL CLEANING FLUID HAS NO CONTAMINATION, ESPECIALLY IF
THE PUMP WILL NOT BE USED IMMMEDIATELY, OR HAS BEEN USED WITH 2 COMPONENT PAINTS.
CAUTION
WHEN THE SPRAY GUN IS NOT IN USE THE SAFTEY LOCK SHOULD BE ENGAGED TO PREVENT
ACCIDENTAL OPERATION.
