Binks MX432 - High Pressure Filter Assemblies

77-2915R-1
page 10 of 16
SPECIFICATIONS
Max working pressure: 272 bar [3945 psi]
Fluid inlet connection: 3/8" BSP (f)
Fluid outlet connection: 1/4" NPS (m)
Wetted parts materials of
construction:
Stainless Steel, PTFE

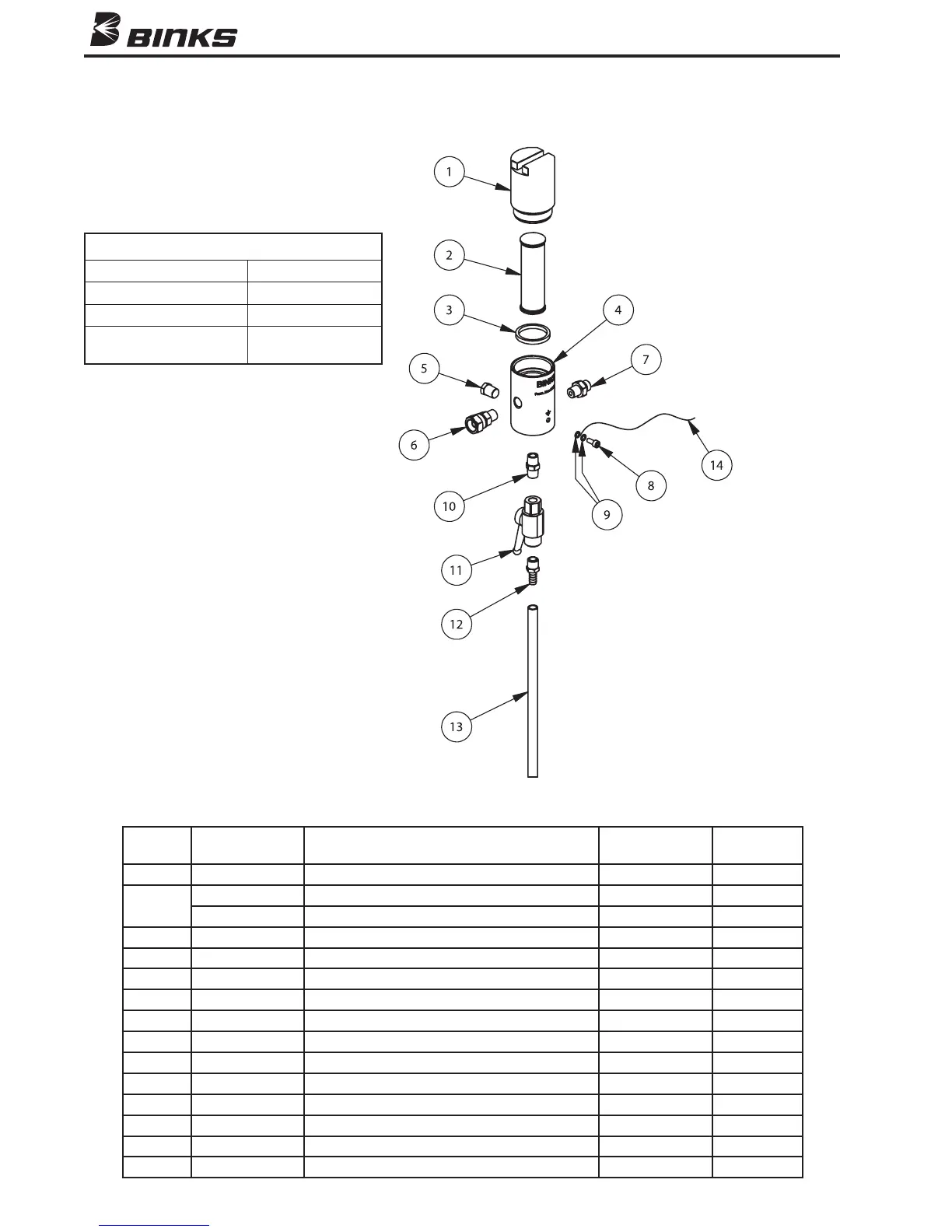

STAINLESS STEEL HIGH PRESSURE FILTER ASSEMBLIES
0115-010326 (100 MESH FILTER ELEMENT)
0115-010630 (200 MESH FILTER ELEMENT)
PARTS LIST
ITEM NO. PART NUMBER DESCRIPTION
0115-010326
QTY
0115-010630
QTY
1 0115-010399 FILTER CAP 1 1
2
0110-009134 200 MESH FILTER ELEMENT 0 1
0110-009132 100 MESH FILTER ELEMENT 1 0
3 0114-016061 GASKET 1 1
4 0115-010398 FILTER HOUSING 1 1
5 0115-010600 PLUG 1 1
6 0114-016058 SWIVEL CONNECTING NIPPLE 1 1
7 0114-016059 OUTLET SCREW 1 1
8 0114-014179 GROUND SCREW 1 1
9 0114-009743 GROUND WASHER 2 2
10 0114-019090 OUTFLOW FITTING 1 1
11 0114-019091 HIGH PRESSURE BALL VALVE 1 1
12 0114-019985 HOSE CONNECTION 1 1
13 0115-010327 FILTER DRAIN HOSE 1 1
14 0114-011798 GROUNDING WIRE 1 1
Additional filter mesh sizes (sold separately):
For 50 mesh order: 0110-009131
For 150 mesh order: 0010-009133
