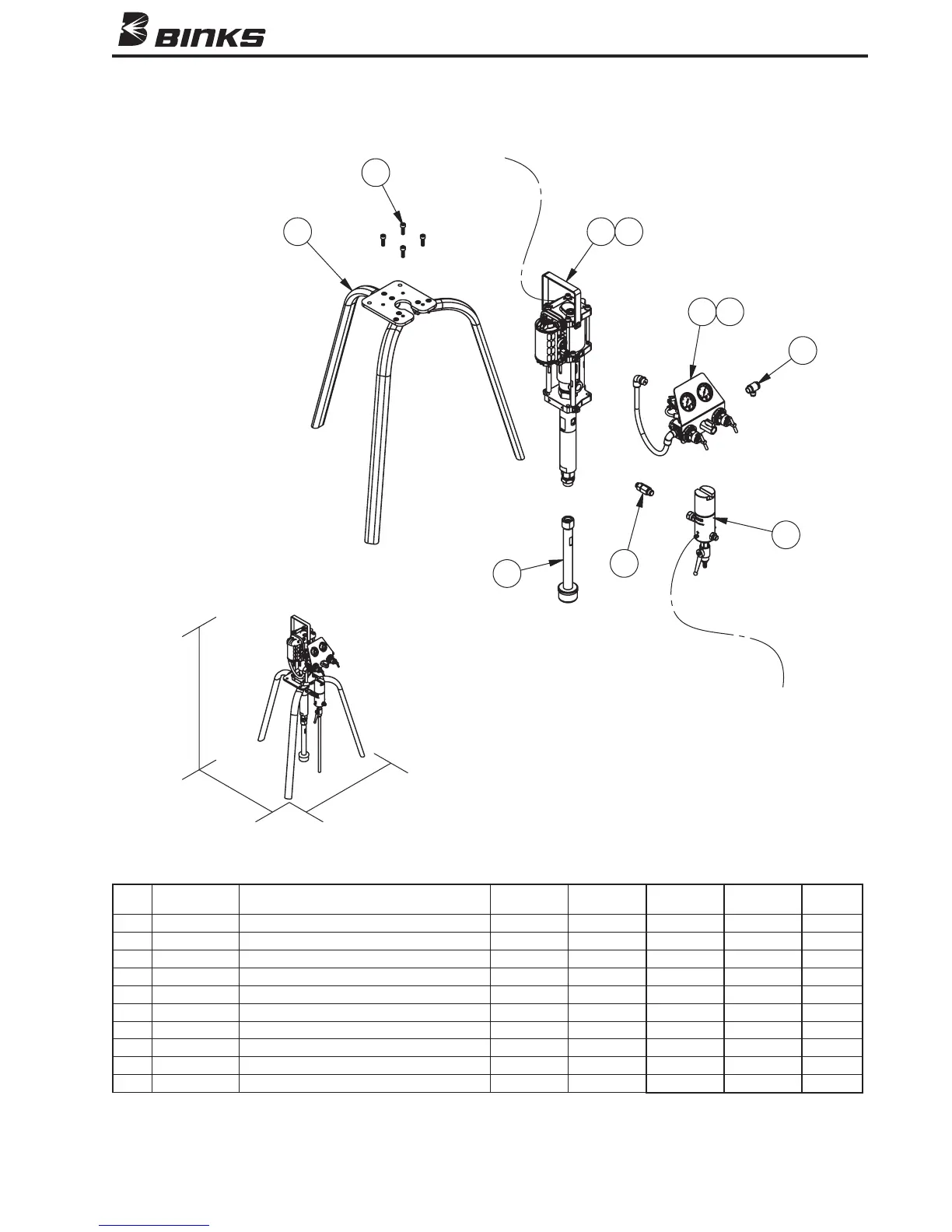

MX432 TRIPOD MOUNTED ASSEMBLIES
1
2
7
8
5
3 4
9
Earth wire
Earth wire
6
10
600mm
[23 5/8 in]
970mm
[38 1/4 in]
543mm
[21 3/8 in]
SYSTEM COMPONENTS LIST
ITEM
NO.
PART NUMBER DESCRIPTION
0015-0432D-AC 0015-0432D-AC-P 0015-0432D-AL 0015-0432D-AL-P
SERVICE
BULLETIN
1 0115-010100 TRIPOD ASSEMBLY 1 1
1 1
2 0115-010227 SOCKET HEAD CAP SCREW 4 4 4 4
3 MX432PL MX432 BARE PUMP ASSEMBLY (PTFE/LEATHER) 1 0 1 0
77-2907-EU
4 MX432PP MX432 BARE PUMP ASSEMBLY (PTFE) 0 1 0 1 77-2907-EU
5 0115-010180 AIR ASSIST AIR CONTROL 1 1 0 0
6 0115-010198 AIRLESS AIR CONTROL 0 0 1 1
7 0115-010106 INLET SUCTION TUBE ASSEMBLY (50 mesh) 1 1 1 1
8 0110-009130 HP FILTER ASSEMBLY (100 mesh) 1 1 1 1
9 0114-009164 ELBOW FITTING 1 1 0 0
10 0115-010256 CHECK VALVE 1 1 1 1
