Binks MX432 - Wall Mounted Assemblies

77-2915R-1
page 8 of 16

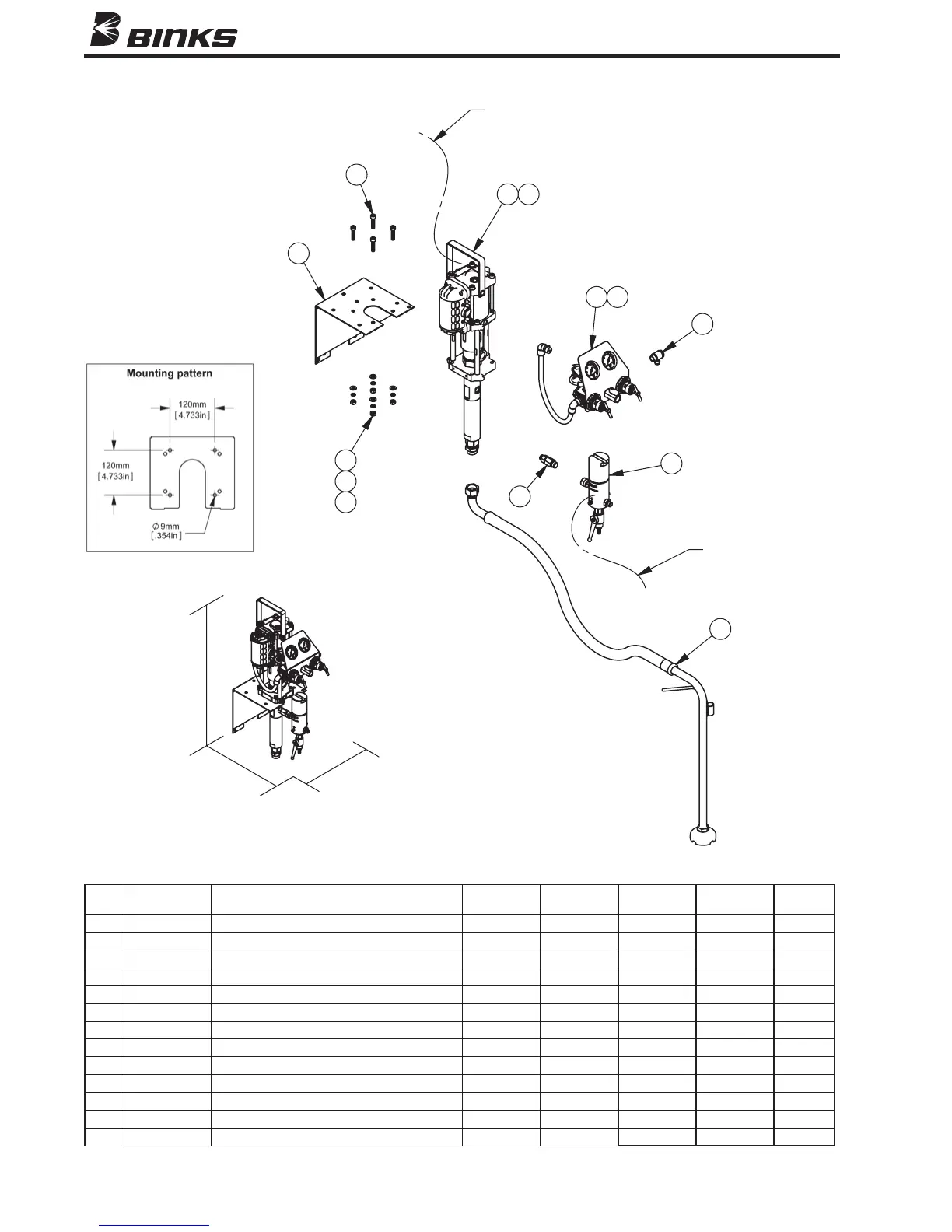

MX432 WALL MOUNTED ASSEMBLIES
1
2
10
8
6 7
4
5
6
11
9
12
Earth wire
Earth wire
13
330mm
[13 in]
230mm
[9 in]
760mm
[30 in]
SYSTEM COMPONENTS LIST
ITEM
NO.
PART NUMBER DESCRIPTION
0015-0432W-AC 0015-0432W-AC-P 0015-0432W-AL 0015-0432W-AL-P
SERVICE
BULLETIN
1 0115-010179 MX WALL BRACKET 1 1
1 1
2 0115-010001 SOCKET HEAD CAP SCREW 4 4 4 4
3 0115-010030 M8 HEX NUT 4 4 4 4
4 0115-010031 M8 LOCKWASHER 4 4 4 4
5 0115-010035 M8 PLAIN WASHER 4 4 4 4
6 MX432PL MX432 BARE PUMP ASSEMBLY (PTFE/LEATHER) 1 0 1 0
77-2907-EU
7 MX432PP MX432 BARE PUMP ASSEMBLY (PTFE) 0 1 0 1 77-2907-EU
8 0115-010180 AIR ASSIST AIR CONTROL 1 1 0 0
9 0115-010198 AIRLESS AIR CONTROL 0 0 1 1
10 0110-009130 HP FILTER ASSEMBLY (100 mesh) 1 1 1 1
11 0114-009164 ELBOW FITTING 1 1 0 0
12 0115-010236 SUCTION HOSE ASSEMBLY (20 mesh) 1 1 1 1
13 0115-010256 CHECK VALVE 1 1 1 1
