Binks MX432 - System Assemblies and Components; Cart Mounted Assemblies

77-2915R-1
page 7 of 16
SYSTEM COMPONENTS LIST
ITEM
NO.
PART NUMBER DESCRIPTION
0015-0432F-AC 0015-0432F-AC-P 0015-0432F-AL 0015-0432F-AL-P
SERVICE
BULLETIN
1 0115-010186 TROLLEY ASSEMBLY 1 1
1 1
2 0115-010179 MX WALL BRACKET 1 1 1 1
3 0115-010001 SOCKET HEAD CAP SCREW 4 4 4 4
4 0115-010030 M8 HEX NUT 4 4 4 4
5 0115-010031 M8 LOCKWASHER 4 4 4 4
6 0115-010035 M8 PLAIN WASHER 4 4 4 4
7 MX432PL MX432 BARE PUMP ASSEMBLY (PTFE/LEATHER) 1 0 1 0
77-2907-EU
8 MX432PP MX432 BARE PUMP ASSEMBLY (PTFE) 0 1 0 1 77-2907-EU
9 0115-010180 AIR ASSIST AIR CONTROL 1 1 0 0
10 0115-010198 AIRLESS AIR CONTROL 0 0 1 1
11 0110-009130 HP FILTER ASSEMBLY (100 mesh) 1 1 1 1
12 0114-009164 ELBOW FITTING 1 1 0 0
13 0115-010236 SUCTION HOSE ASSEMBLY (20 mesh) 1 1 1 1
14 0115-010256 CHECK VALVE 1 1 1 1

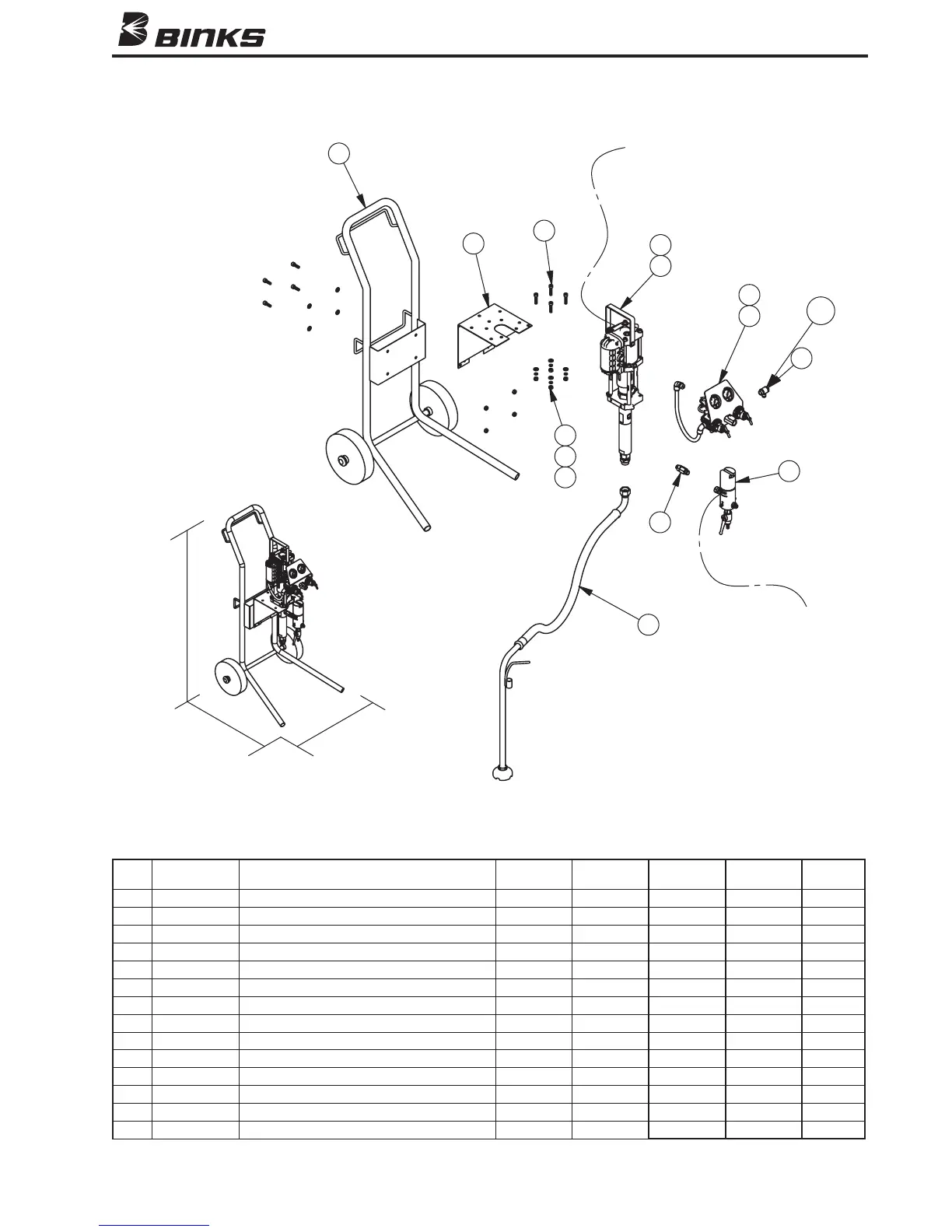

MX432 CART MOUNTED ASSEMBLIES
1
2
3
11
10
9
8
7
4
5
6
10
13
Earth wire
Earth wire
12
14
575mm
[22 5/8"]
522 mm
[20 1/2"]
1030mm
[40 1/2"]
