• It is forbidden to install flues with a downward slope.
• The smoke duct must allow the cleaning of the soot or be easily accessible.
• The duct section must be constant.
• It is forbidden to pass any others air ducts or pipes inside the smoke channels. It is not allowed to fit devices to control manually the
draw in equipments with a forced draw.
D8
All boilers that send smoke to the exterior should have their own chimney.
Never use the same chimney for several equipments at the same time.
It is necessary to install a “T” with hermetic cover at the boiler exit smoke
that allows the regular inspection or the heavy dust discharge.

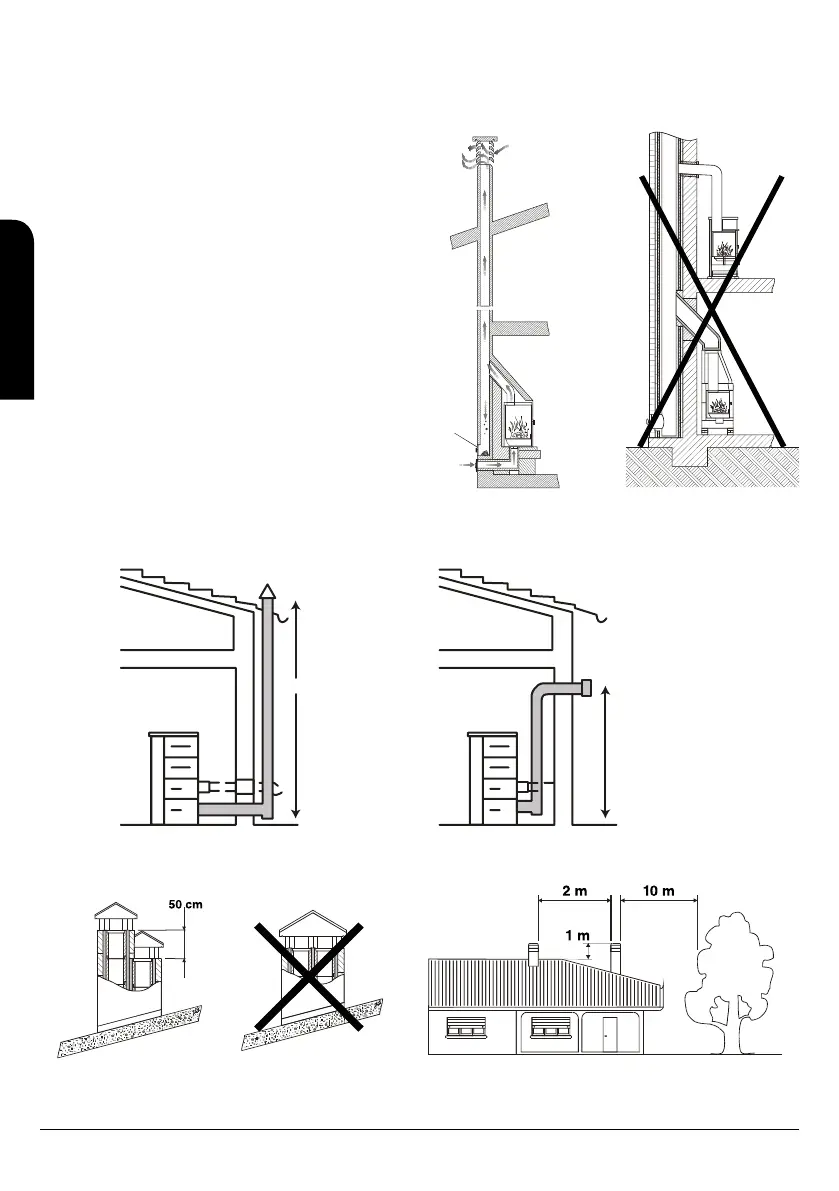

Drawing shows the basic requirements for the chimney installation of a
boiler:
The flue must be away from flammable or combustible materials through an appropriate insulation or an air chamber. Inside it, it is forbidden
the pipes of installations or air abduction channels. It is also prohibited to do mobile or fixed openings for connecting other different
equipments.
Minimum heig 5m
Minimum heig 5m
The lack of sealing of the connection may cause the malfunction of the equipment.
In drawing you can see the requirements for a correct installation.
