1) AMBER LIGHTED “ON / OFF” PUMP SWITCH
2) PRESSURE ADJUSTMENT KNOB, LOCKING
To prevent against involuntary changes in the pressure setting due to inadvertent movement of the
Pressure Adjustment Knob, a new “locking” Pressure Adjustment Knob has been implemented on
all model pumps to provide for safer, more effective therapy. After the pressure has been set,
simply by turning the smaller “inner locking knob” clockwise to tighten, the pressure adjustment
knob will now remain secure in place. Turning the “inner knob” counter -clockwise will enable the
“pressure adjustment knob” to again turn free without resistance.
CAUTION: CARE MUST BE TAKEN NOT TO “OVER-TIGHTEN” THE INNER LOCKING
KNOB AS ONLY MINIMAL FORCE IS REQUIRED TO LOCK PRESSURE SETTING IN
PLACE.
NOTE: CHANGING THE INNER KNOB TO A 1/2” x 8/32” ALLEN HEAD SET SCREW
WILL UPGRADE THIS FEATURE TO TO TAMPER
3) PRESSURE GAUGE (mmHg)
4) AIR SUPPLY PORTS
5) RECEPTOR PORTS FOR LEFT & RIGHT LOCKING PINS LOCATED ON EITHER
SIDE OF TUBING PLUG
6) “CAPPED” AUXILIARY AIR SUPPLY PORTS (For Use with Secondary Garment)
7) ADJUSTABLE GRADIENT PRESSURE “OVERRIDE”(Model # 3004 Only)
Located on underside of pump
3
2
1

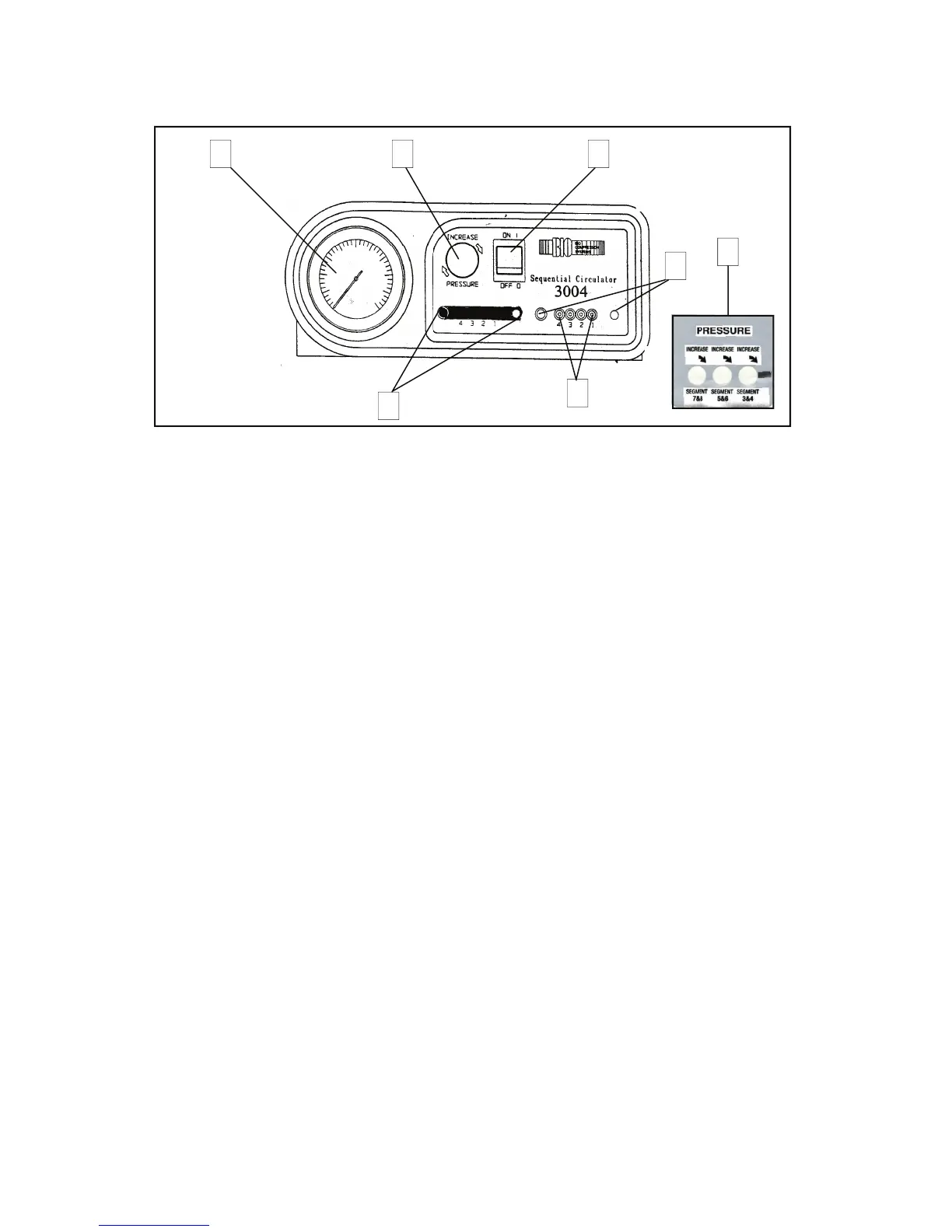

CONTROLS AND INDICATORS
6
5
7
4
5
