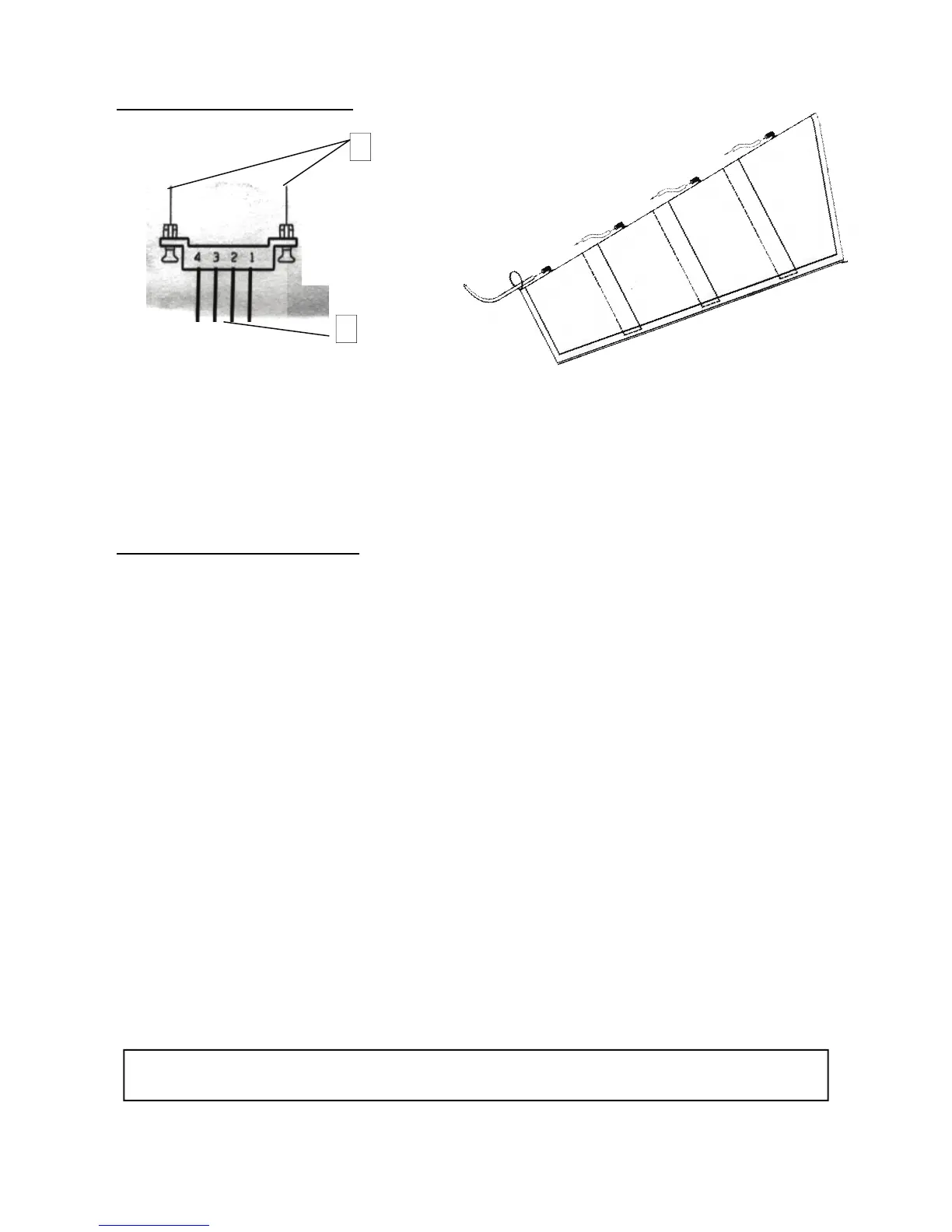

8) TUBING PLUG/S
9) LEFT (black) AND RIGHT (white) LOCKING PINS
ADJUSTABLE GRADIENT PRESSURE
NOTE: When a pressure adjustment is made to any Individual chamber, one must be conscious of the overall
Gradients across all chambers so as not to create reverse Gradients
UPPER EXTREMITY GARMENT
WITH TUBING PLUG/CONNECTOR
9
8
ELECTRICAL SPECIFICATIONS
The Models 2004 and 3004, Sequential Circu tor’s electrical pumps and components are “double insulated”
and thus do not require a “protective ground.” As a result, the pumps are equipped with an 18 gauge, 2-
wire, 10 ft. power cord, secured through the pump casing with a “Heyco” strain relief bushing.
Affixed to the rear exterior of the pump is a 3”x 3” Foil Label containing the “Electrical Specifications”
printed in contrasting black type. These specifications are printed in both English and French and contain
the following:
ELECTRICAL RATING: 120 VAC, 60Hz, 0.5 A
CARACTERISTIQUES ELECTRIQUES: 120 V c.a., 60 Hz, 0, 5 A
When servicing, use only identical replacement parts. Do not remove cover. Refer to qualified service per-
sonnel.
Lors des reparations, utilisez, exclusivement des pieces de re change identiques. No retirez pas le couvercle.
Consultez un techniciaen qualifie.
WARNING: REPLACE FUSE WHERE MARKED
ADVERTISSEMENT: REMETTRE LE FUSIILE A L’ENDROIT INDIQUE
Fuse rated 3 Amps Time Delay, 250 VAC
Fusible de 3 A a retardemente, 250 V c.a.
Continuous Operation with Intermittent Loading
TYPE B—APPLIED PART CLASS II
Pie’ce Applique’e—Type B CLASSE II
ETL 9801681 CONFORMS TO
CONFROM A
CE UL Std 60601-1
Authorized service personnel, in addition to possessing proper tools and testing equipment have access
to electrical schematics, calibration criteria and an inventory of identical replacement parts.
6
