MODULE INSTALLATION
FEET INSTALLATION
1. Determine length of pipe needed for legs.
Note: Build legs using 4” [10 cm] PVC schedule 40 pipe. If legs are longer than 18” [46 cm], then schedule 80
PVC or stronger pipe must be used. Consult factory to extend legs longer than 36” [90 cm].
2. Glue the pipe to the bottom and top leg pieces. Attach the leg extensions to the liner using supplied self-tapping
screws. Stainless Steel hardware is required for installation.
3. Carefully lower liner into tank using a jib crane or other approved method that meets the lifting weight of the
liner. Secure foot bottom to the base of the tank with stainless steel anchor bolts (not provided).
4. At least three anchor wedges are required per leg extension.

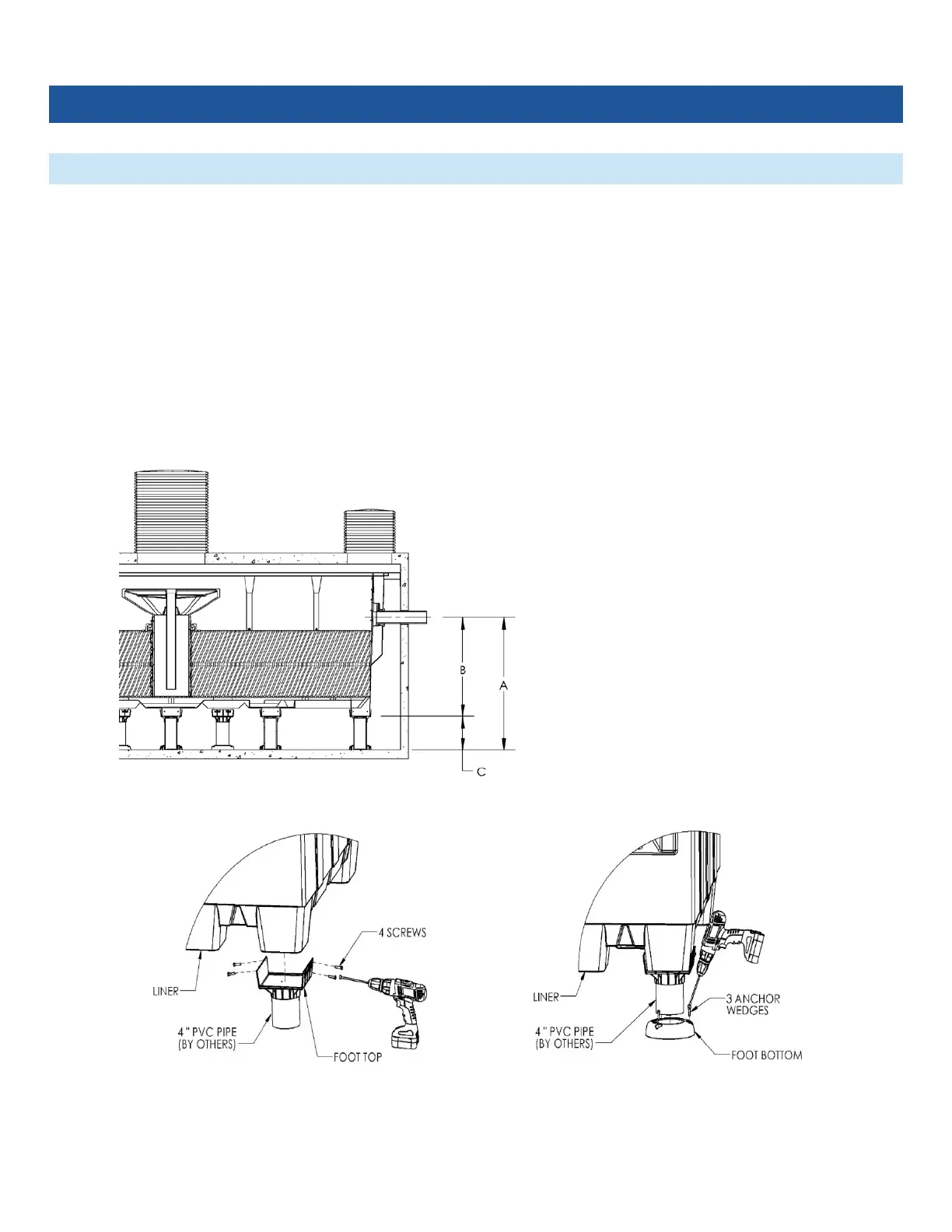

To determine pipe length for legs
(dimension C):
A – B – ¼ in [0.64cm] = C
Where ¼ in [0.64cm] is the
thickness of foot top and foot
