4.3.1 Tube Holders: (each set includes 4 piston tips and disposable piston tip seals, tube holder, tube locking cap and cursor,
box of 50 Seton centrifuge tubes)
151-125 25 mm dia. tubes for SW28 and like rotors.
151-116 16 mm dia. tubes for SW28.1 and like rotors
151-114A 14 mm tubes for SW41 and like rotors
151-114B 14 mm tubes for SW40 and like rotors
151-113 13 mm tubes for SW55 and like rotors.
151-111A 11 mm tubes for SW60 and like rotors (comes with a different narrow piston/valve assembly and spare)
151-111B 11 mm tubes for TLS-55 and like rotors
4.3.2 Tubes: (Seton PolyClear™ required for use with the fractionator)
151-525 25 x 89 mm tubes for SW28 and like rotors.
151-516 16 x 102 mm tubes for SW28.1 and like rotors
151-514A 14 x 89 mm tubes for SW41 and like rotors
151-514B 14 x 95 mm tubes for SW40 and like rotors
151-513 13 x 51 mm tubes for SW55 and like rotors
151-511A 11 x 60 mm tubes for SW60 and like rotors
151-511B 11 x 34 mm tubes for TLS-55 and like rotors
4.3.3 Spares:
151-2XX-4 (XX is the mm diameter of the tube) 4 Piston tips with seals
151-902 12V 20W Spot light with dichroic reflector
151-905 check valve assembly for piston air/rinse/sample
151-905-11 check valve assembly for piston air/rinse/sample for 11 mm tip
151-931 Bag of 50 mist filter discs
151-919 2 each 1/16” ø stainless ball and 002/003 silicone Orings for check valve assembly
151-925 1 m of replacement tubing for piston 1/16”ø Teflon
151-926 1 m of replacement tubing for rinse system 1/8”ø polyester
SECTION 5. INSTRUMENT SET-UP
5.1 INSPECT THE SHIPPING BOX. If there is any damage to the outside that corresponds to
damage to the instrument, CALL BIOCOMP IMMEDIATELY.
To unpack the instrument, first open the top of the box and remove all the small parts and loose
foam. Then pull out the 4 pieces of foam from the sides of the carton. Pushing down on the box and
pulling up on the sides of the top plate, remove the instrument from the carton. It is attached to a piece
of plywood at the bottom that will pull out with the instrument. Use an adjustable wrench to remove
the 4 bolts holding the plywood to the base of the fractionator.

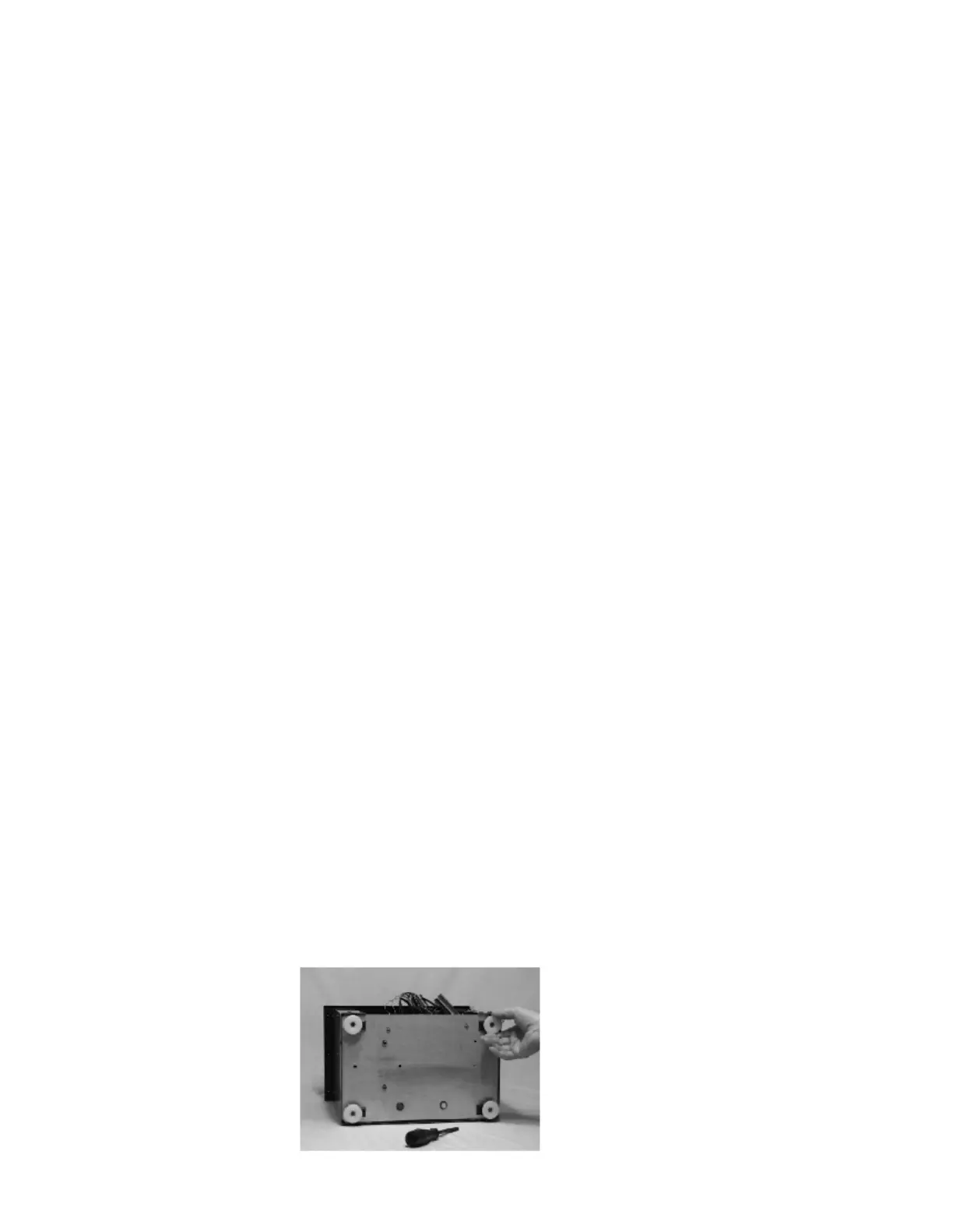

Locate the 4 feet in the accessory pack and screw them into the holes left by the bolts. Level the
instrument on the bench where it will be used by screwing the feet in or out as needed. Be sure that all
the parts listed on the shipping papers are present.
!
