35 Biodex Medical Systems, Inc. © 2018
In case the actual rpm is 15% (or more) lower than set rpm, medBike will assist user to reach
the set rpm. The sensing frequency is modulated in accordance with EXERCISE TIME and SET
RPM.
Press <+> or <-> to adjust rpm.

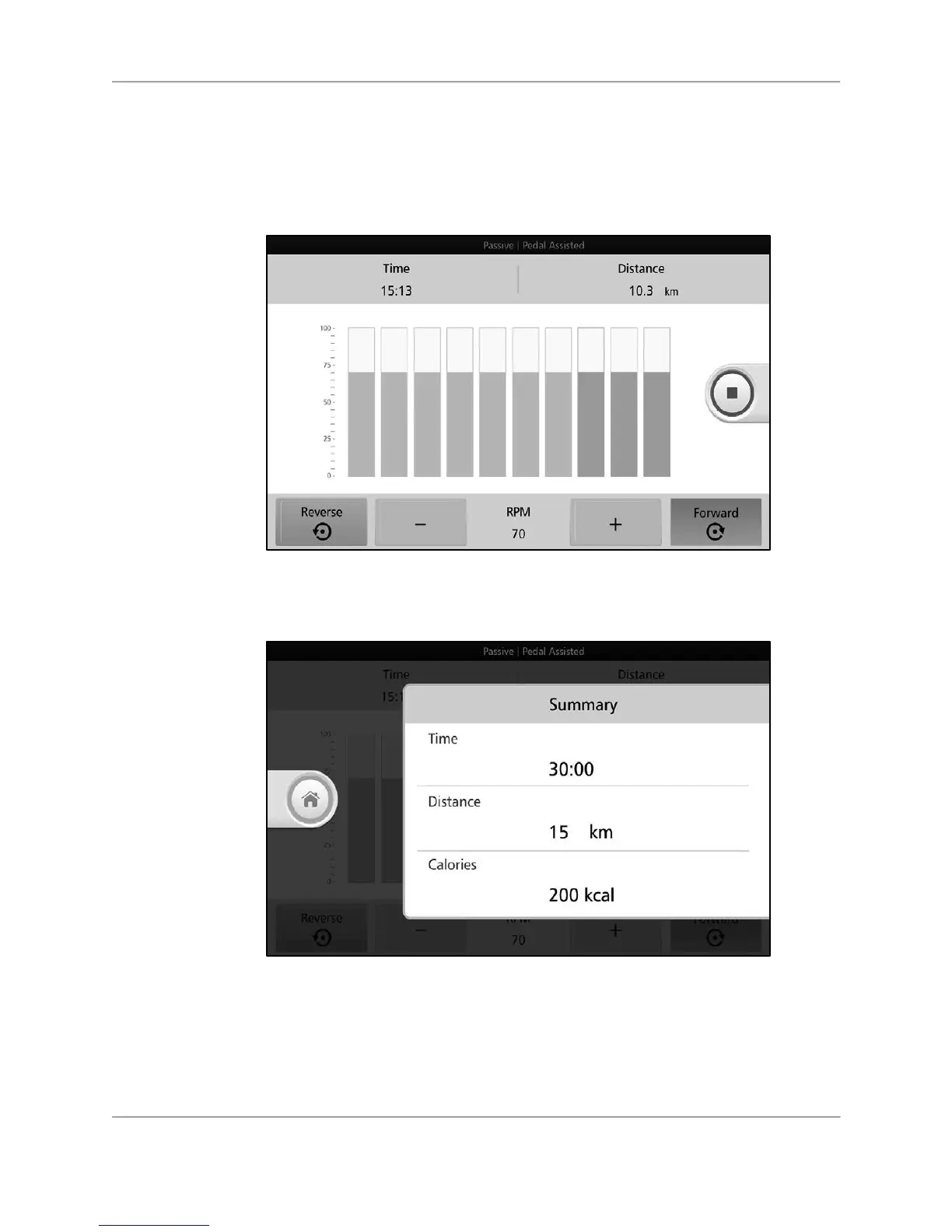

Figure 5.13. Passive Pedal/Arm Crank Assisted Mode—in-progress exercise screen.
If the<Red Square> is pressed to stop the exercise, the results data from the workout is
displayed.
Figure 5.14. Passive Manual Mode Results.
Press <Home> to return to the Home screen.
