Biostar A770E3 User Manual

A770E3
3
SPEC
S/PDIF Out Connector x1 Supports digital audio out function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x1 System Fan Power supply
CMOS Clear Header x1 Restore CMOS data to factory default
USB Connector x2 Each connector supports 2 front panel USB ports
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Printer Port Connector x1 Each connector supports 1 Printer port
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
Serial Port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connects to RS-232 Port
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size 205 mm(W) x 305 mm(L) ATX
Special
Features
RAID 0 / 1 / 1+0 support
OS Support
Windows XP / Vista 32 / 64 / 7
Biostar reserves the right to add or remove support
for any OS With or without notice.

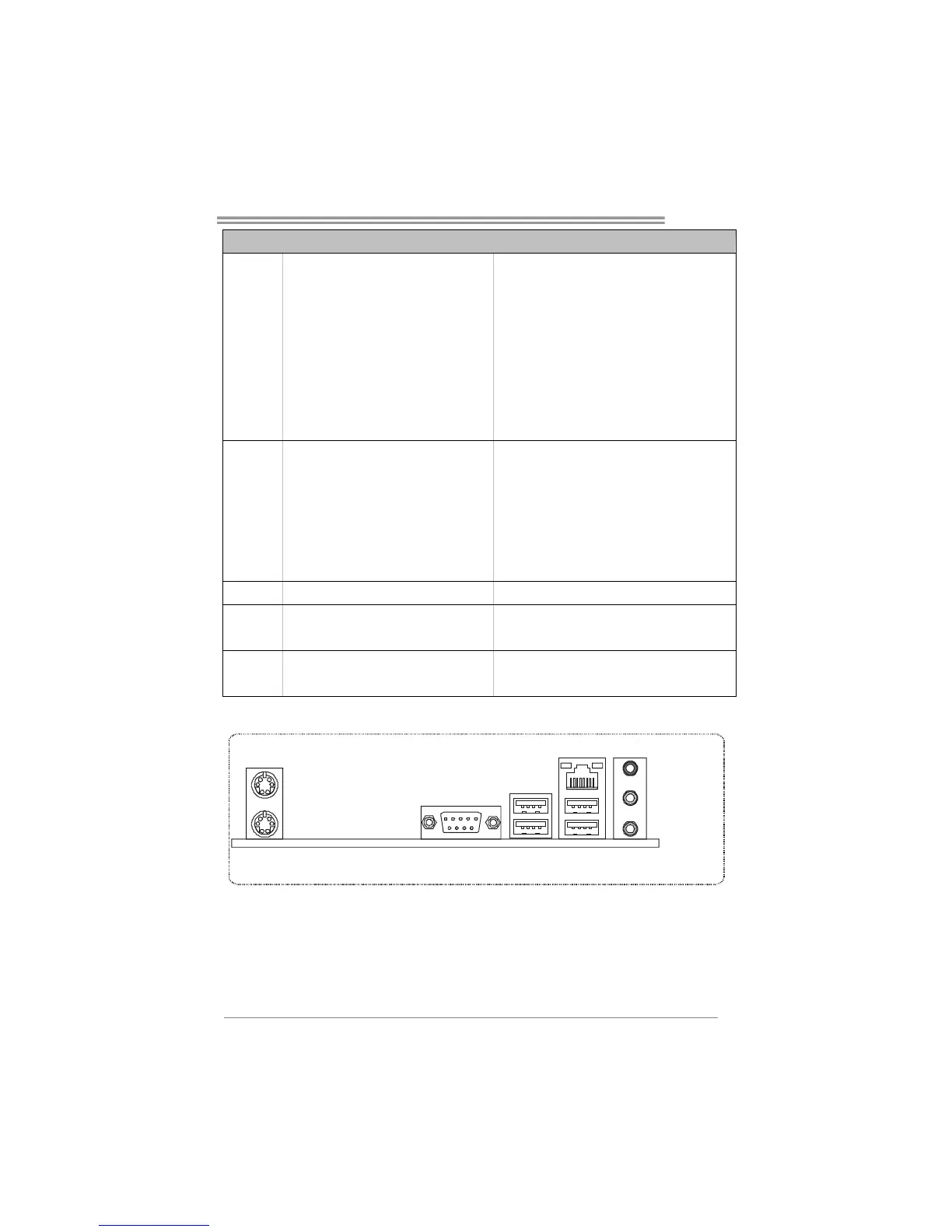

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
COM1 USBX2USBX2
LAN
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center

Biostar A770E3 Specifications

General

Brand	Biostar
Model	A770E3
Category	Motherboard
Language	English
