14 | Chapter 2: Hardware installaon

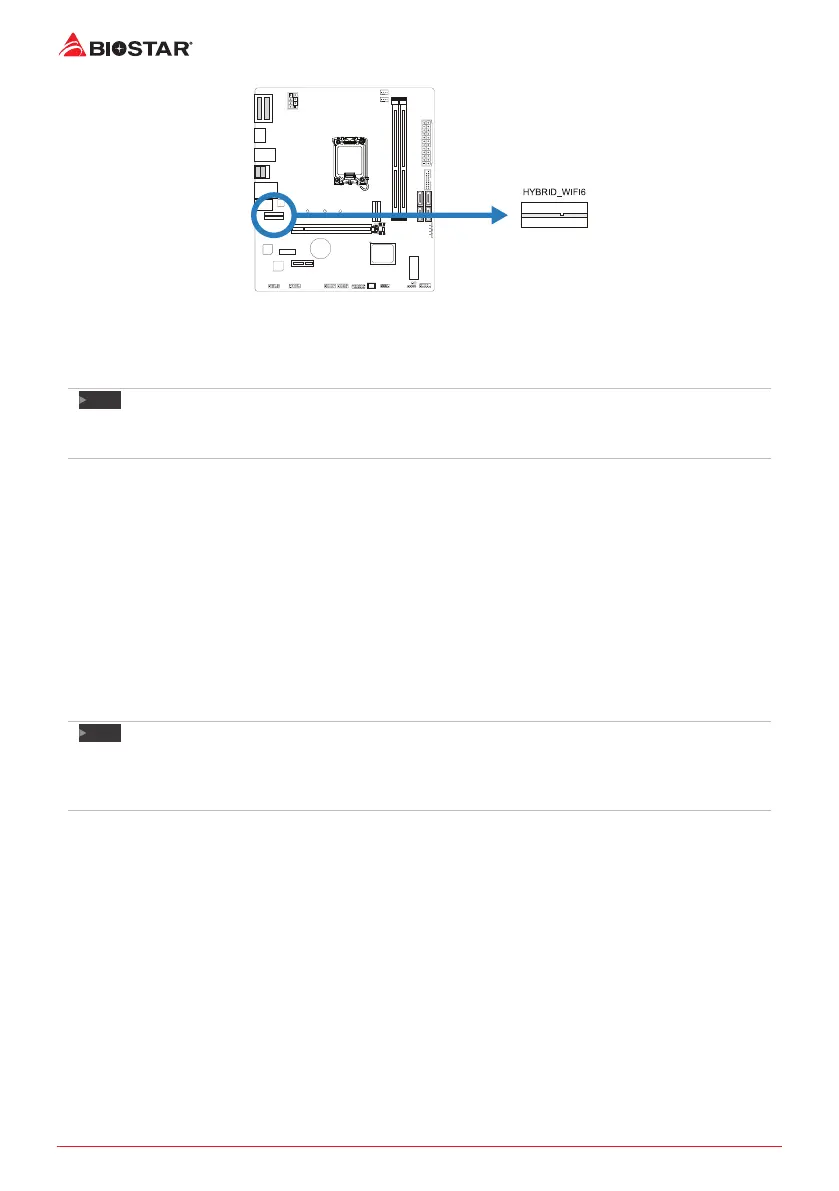

HYBRID_WIFI6: M.2 (E Key) Socket (M.2 (E key) Wi-Fi card is not provided)

• Support M.2 socket 2230 type module.

• Supports WiFi/ Bluetooth module and Intel® CNVi (Integrated WiFi/ BT).

Note



WhenusingSATASSDmoduleonM.2slot(M2_PCIEG3_32G_SATA),theSATA_4connectorwillbe

disabled.

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card’s instrucon document before install the expansion card into the

computer.

• Remove your computer’s chassis cover, screws and slot bracket from the computer.

• Place a card in the expansion slot and press down on the card unl it is completely seated in the

slot.

• Secure the card’s metal bracket to the chassis back panel with a screw. (This step is only

for installing a VGA card.).

• Replace your computer’s chassis cover.

• Power on the computer, if necessary, change BIOS sengs for the expansion card.

• Install related driver for the expansion card.

Note



PleasebenotethatyouwillneedtouseM2typescrewdriverifyouwanttoinstalloruninstallthe

screw.Itisrecommendednottouseascrewdriverthatdoesnotmeetthespecicaons,otherwise

thescrewmaybedamaged.

Biostar B660MX-E User Manual
