8 | 第二章: 硬體安裝

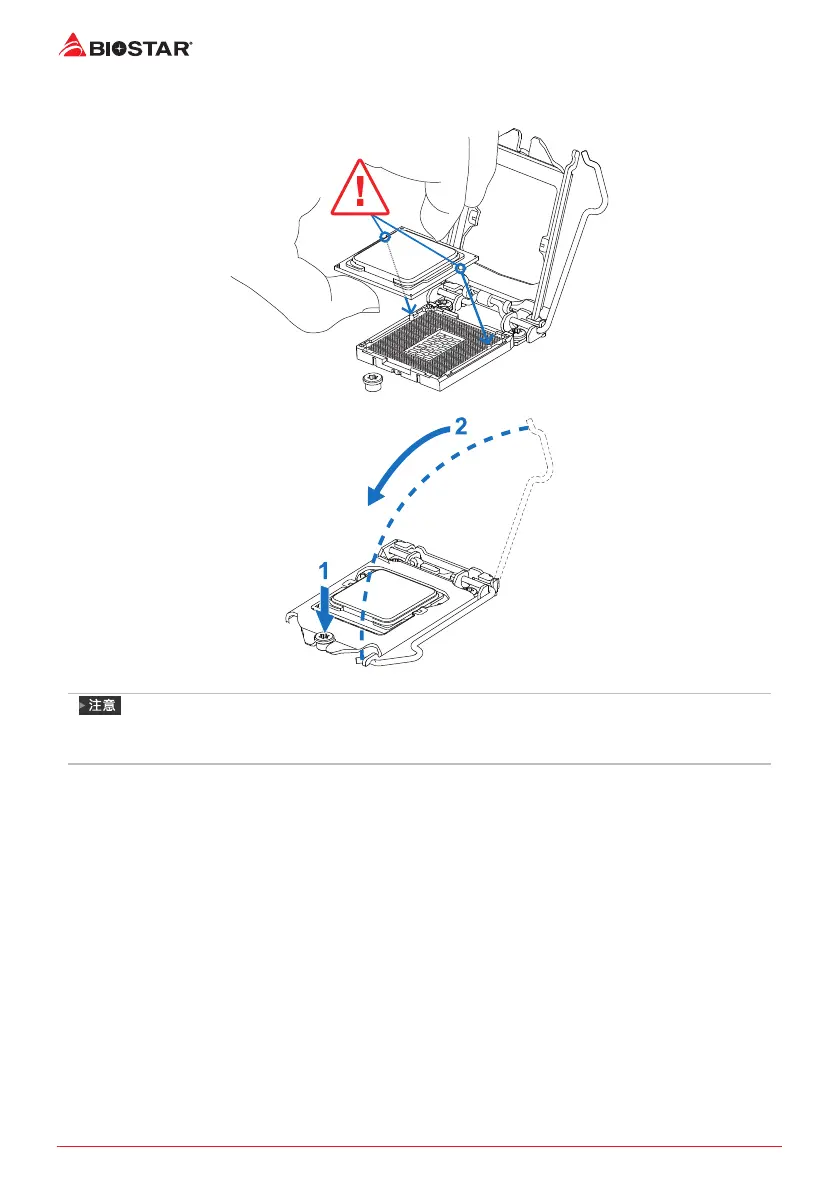

步驟4: 按照箭頭的指示方向,將CPU上的切口對準插槽上相對應的位置,然後將CPU放
入插槽處。
步驟5: 固定CPU,將拉桿閉合。
»
請確保安裝為LGA1150插座設計的CPU
»
CPU必須按正確的方向放入請勿強行將CPU放進插槽以免造成CPU損壞
