Hi-Fi Z77X UEFI BIOS Manual
24

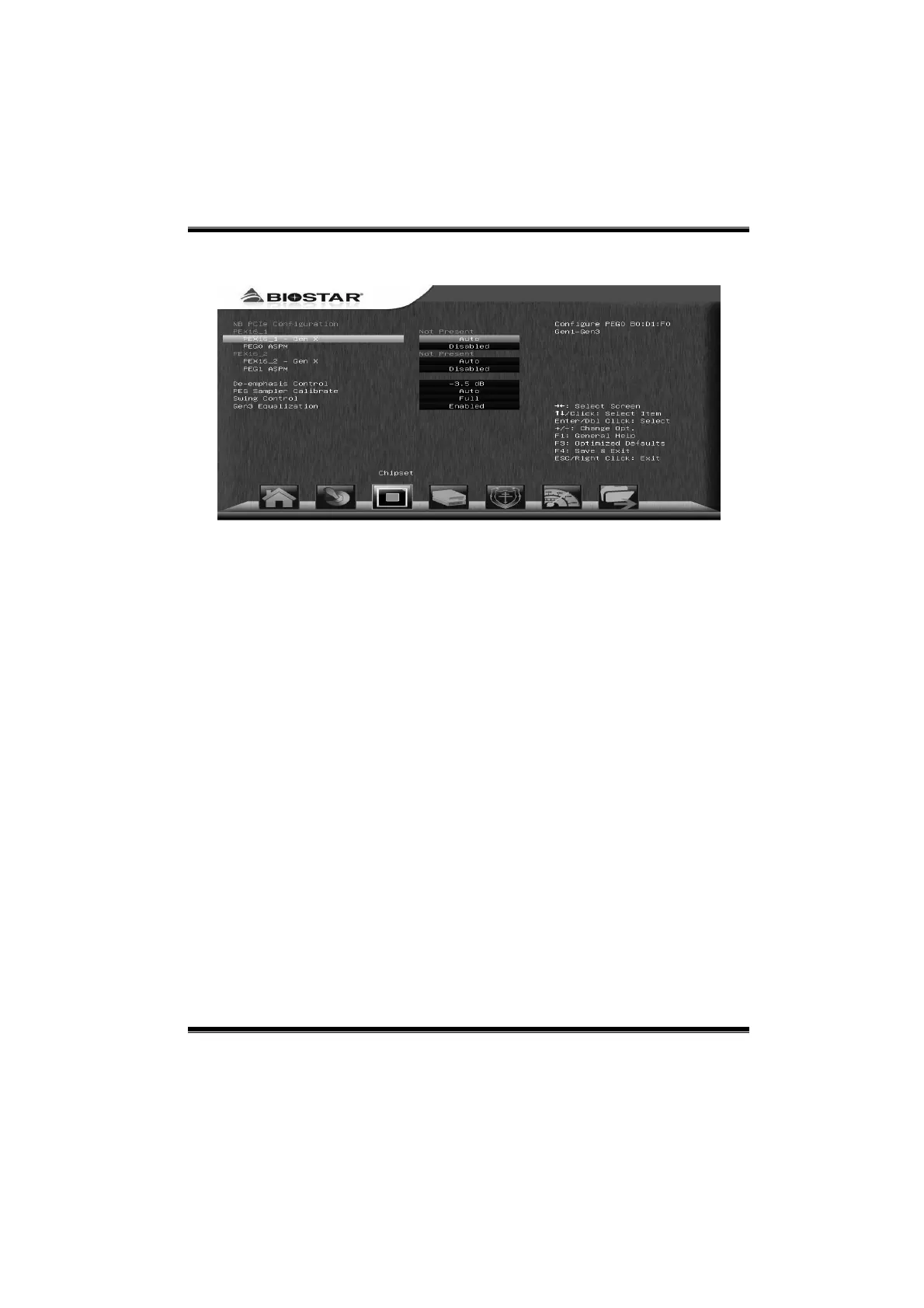

NB PCIe Configuration
PEX16_1 – Gen X / PEX16_2 – Gen X
This item configures PEG0 B0:D1 :F0 Gen1-Gen3.
Options: Auto (Default) / Gen1 / Gen2 / Gen3
PEG0 ASPM / PEG1 ASPM
This item controls ASPM support for the PEG: Device 1 Funtion0. This has
no effect if PEG is not the currently active device.
Options: Disabled (Default) / Auto / ASPM L0s / ASPM L1 / ASPM L0sL1
De-emphasis Control
This item configures the De-emphasis control on PEG.
Options: -3.5 dB (Default) / -6 dB
PEG Sampler Calibrate
This item enables or disables PEG Sampler Calibrate. Auto means Disabled
for SNB MB/DT, Enabled for IVB A0 B0.
Options: Auto (Default) / Enabled / Disabled
Swing Control
This item performs PEG Swing Control, on IVB C0 and Later.
Options: Full (Default) / Reduced / Half
Gen3 Equalization
This item performs PEG Gen3 Equalization steps.
Options: Enabled (Def ault) / Disabled
