Biostar Hi-Fi Z87S3+ User Manual

Hi-Fi Z87S3+/Hi-Fi H87 S3+/Hi-Fi B85 S3+
15

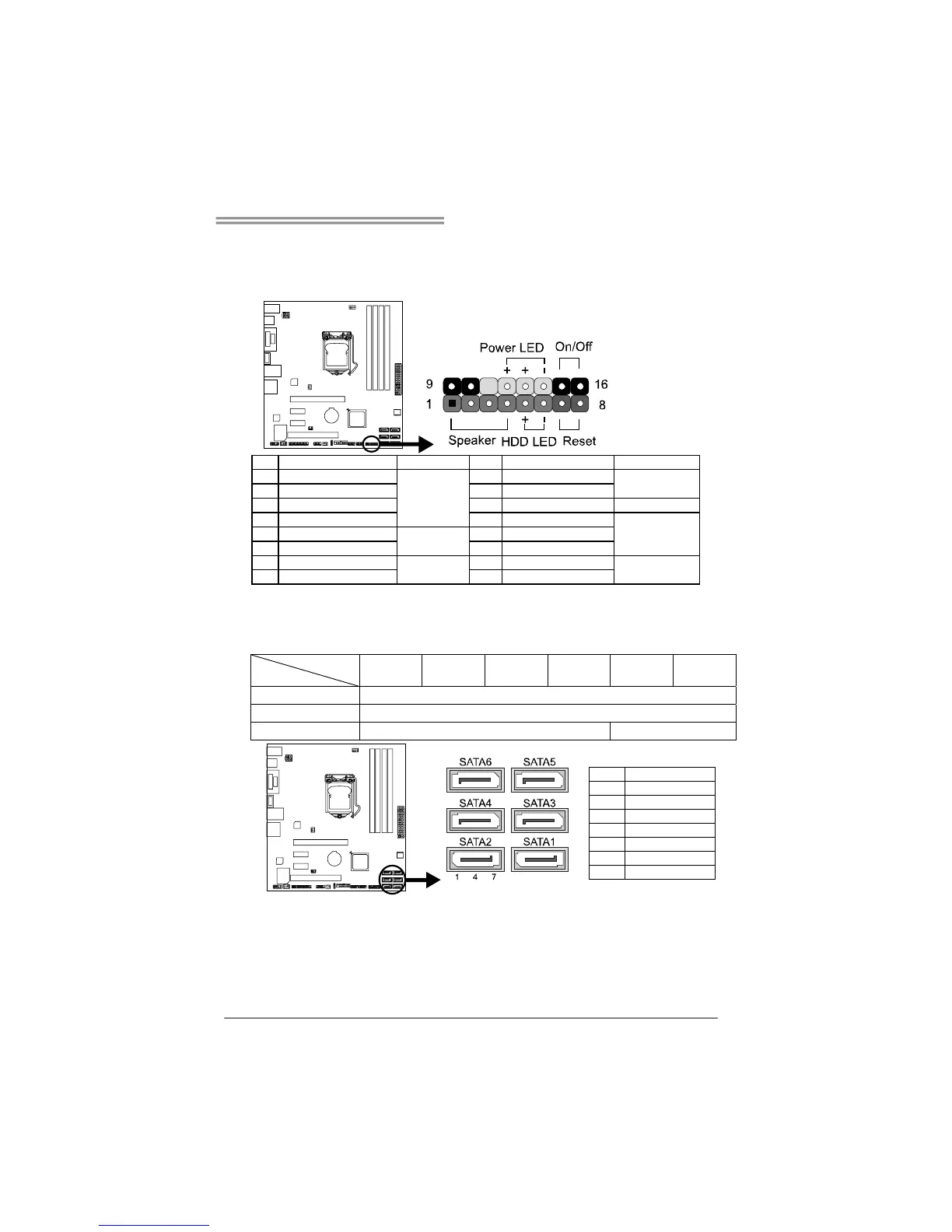

PANEL1: Front Panel Header
This 16-pin header includes Power-on, Reset, HDD LED, Power LED, and speaker
connection. It allows user to connect the PC case’s front panel switch functions.
Pin Assignment Function Pin Assignment Function
1 +5V 9 N/A
2 N/A 10 N/A
N/A
3 N/A 11 N/A N/A
4 Speaker
Speaker
Connector
12 Power LED (+)
5 HDD LED (+) 13 Power LED (+)
6 HDD LED (-)
Hard drive
LED
14 Power LED (-)
Power LED
7 Ground 15 Power button
8 Reset control
Reset button
16 Ground
Power-on button
SATA1~SATA6: Serial ATA Connectors
These connectors connect to SATA hard disk drives via SATA cables. Please refer
below table for SATA data transfer rates.
Connectors
Models
SATA1 SATA2 SATA3 SATA4 SATA5 SATA6
Hi-Fi Z87S3+ SATA 6Gb/s
Hi-Fi H87S3+ SATA 6Gb/s
Hi-Fi B85S3+ SATA 6Gb/s SATA 3Gb/s
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
