K8M800 Micro AM2 BIOS Setup
17
AGP & P2P Bridge Control
If you highlight the literal “Press Enter” next to the “AGP & P2P Bridge Control” label and then
press the enter key, it will take you a submenu with the following options:

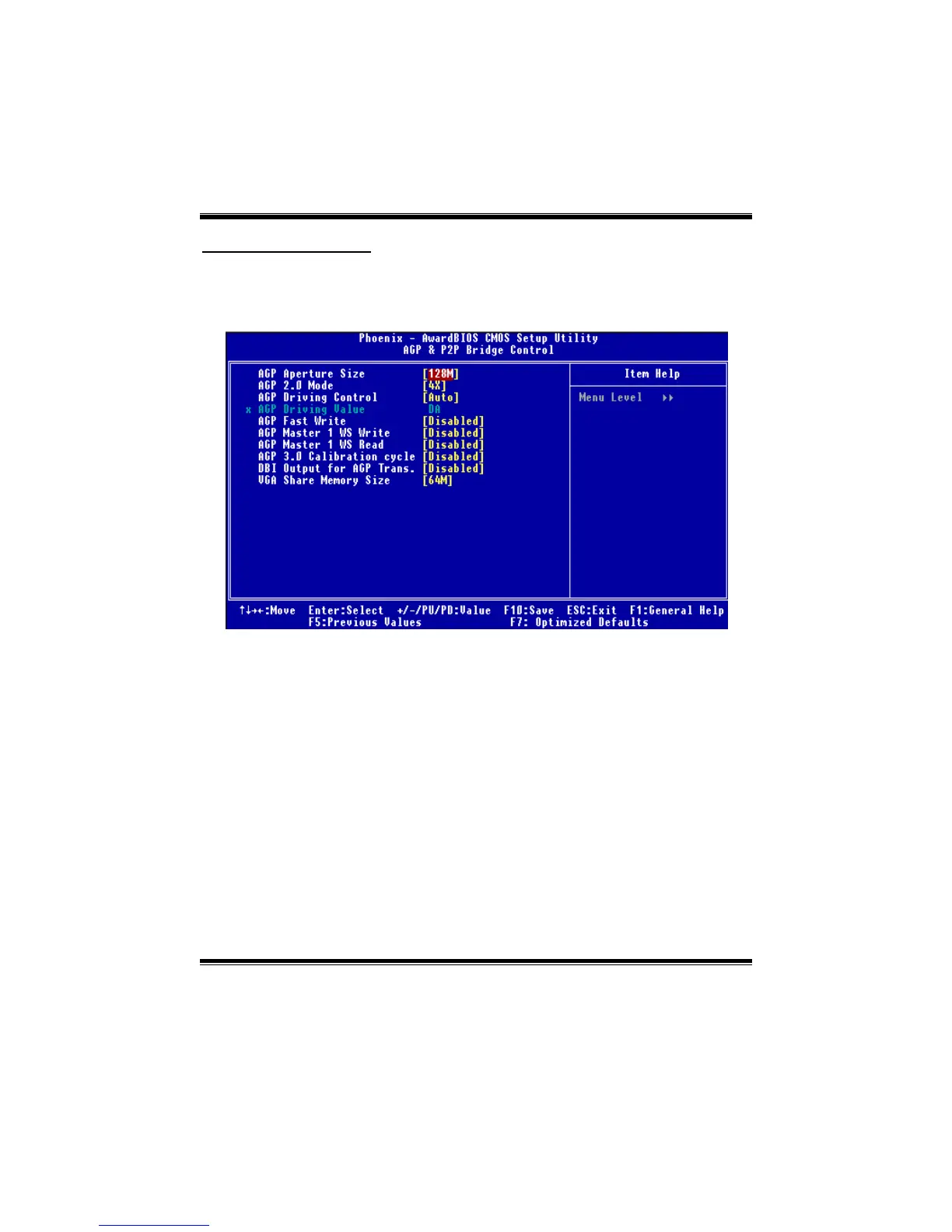

Figure 4.1: AGP & P2P Bridge Control
AGP Aperture Size
Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture is a portion
of the PCI memory address range dedicated for graphics memory address space. Host
cycles that hit the aperture range are forwarded to the AGP without any translation.
The Choices: 1G,512M,256M, 128M (default), 64M ,32M.
AGP 2.0 Mode
This item allows you to select the AGP Mode.
The Choices: 4X (default), 2X, 1X.
AGP Driving Control
By choosing “Auto” the system BIOS will the AGP output Buffer Drive strength P Ctrl by
AGP Card. By choosing “Manual”, it allows user to set AGP output Buffer Drive strength P
Ctrl by manual.
The Choices: Auto (default), Manual.
To Next Page
