Motherboard Manual
18

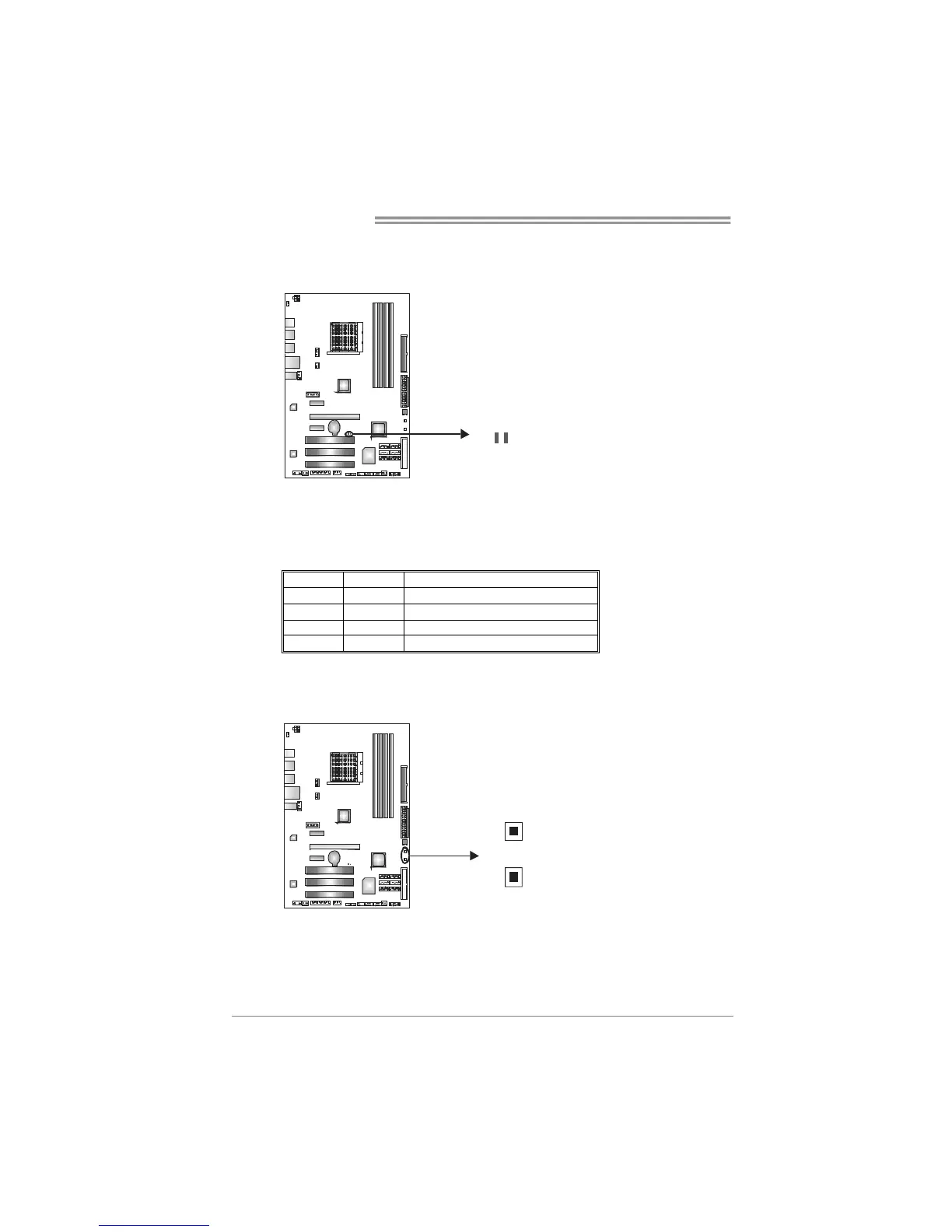

On-Board LED Indicators
There are 2 LED indicators on the motherboard to show system status.
LED_D1
LED_D2
LED_D1 and LED_D2:
These 2 LED indicate system power on diagnostics.
Please refer to the table below for different messages:
LED_D2 LED_D1 Message
OFF OFF Abnormal: CPU / Chipset error.
OFF ON Memory Error
ON OFF VGA Error
ON ON Normal
On-Board Buttons
There are 2 on-board buttons.
PWRSW1
RSTSW1
PWRSW1:
This is an on-board Power Switch button.
RSTSW1:
This is an on-board Reset button.
