Biostar TA785 A2+ User Manual

TA790GXBE/TA785 A2+
3
SPEC
Floppy Connector x1 Each connector supports 2 Floppy drives
IDE Connector x1 Each connector supports 2 IDE device
SATA Connector x6 Each connector supports 1 SATA devices
Front Panel Connector x1 Supports front panel facilities
Front Audio Connector x1 Supports front panel audio function
CD-in Connector x1 Supports CD audio-in function
S/PDIF out Connector x1 Supports digital audio out function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x2 System Fan Power supply
CMOS clear Header x1 Restore CMOS data to factory default
USB Connector x3 Each connector supports 2 front panel USB ports
Serial Port Connector (optional) x1 Connects to RS-232 Port
Power Connector (24pin) x1 Connects to Power supply
On Board
Connectors
Power Connector (4pin) x2 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
VGA port x1
DVI-D port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to D-SUB monitor
Connect to DVI monitor
Connect to RJ-45 ethernet cab le
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size
225 mm (W) x 305 mm (L) ATX
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove support
for any OS With or without notice.

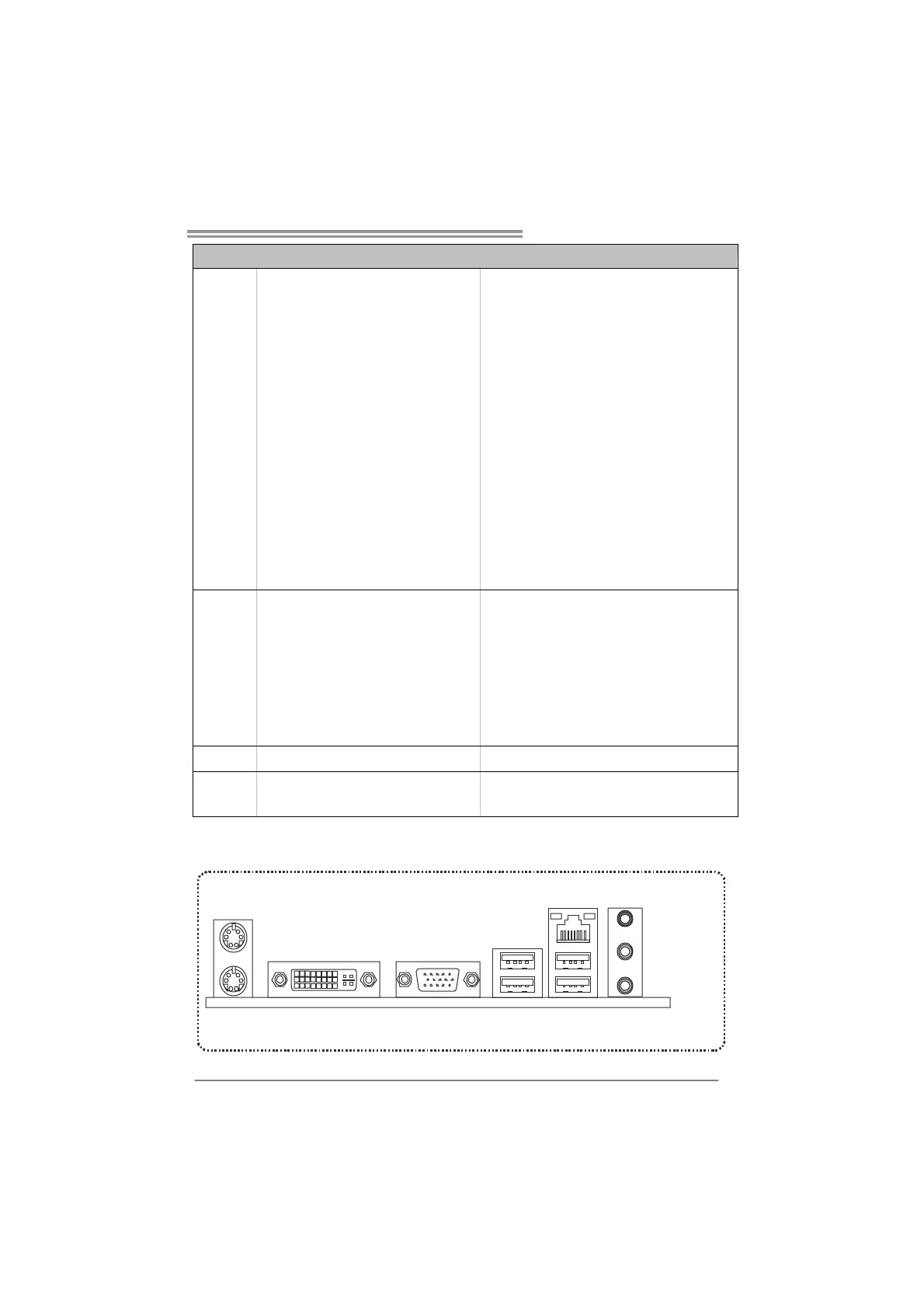

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
USBX2USBX2
LAN
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
DVI-D

Biostar TA785 A2+ Specifications

General

Brand	Biostar
Model	TA785 A2+
Category	Motherboard
Language	English
