TA890FXE
17

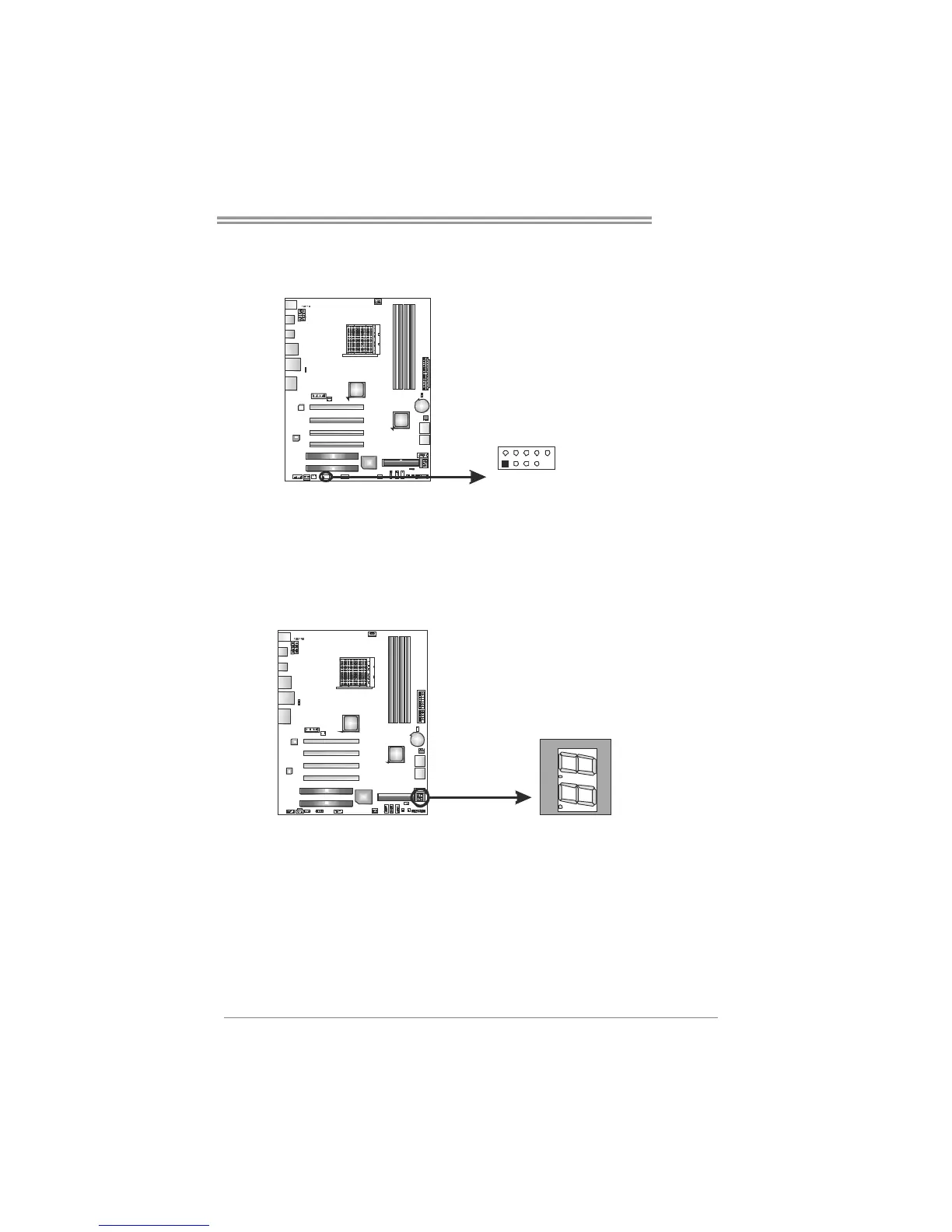

F_1394A1: IEEE 1394 Header
This header allows user to connect IEEE 1394 device.
Pin
Assignment
1 TPA1+
2 TPA1-
3 GND
4 GND
5 TPB1+
6 TPB1-
7 VCC
8 VCC
9 N/A
1
2
9
10
10 KEY
BIOS POST Code/CPU Temperature Indicator
This indicator will show POST code while booting. After the booting sequence,
it will show current CPU temperature through hexadecimal figure. Please
refer to Chapter 7.4 for all the BIOS POST codes, and Chapter 7.5 for
conversion of hexadecimal and decimal system.
