Manual Overclock System (M.O.S.)
MOS is designed for experienced overclock users.
It allows users to customize personal overclock settings.

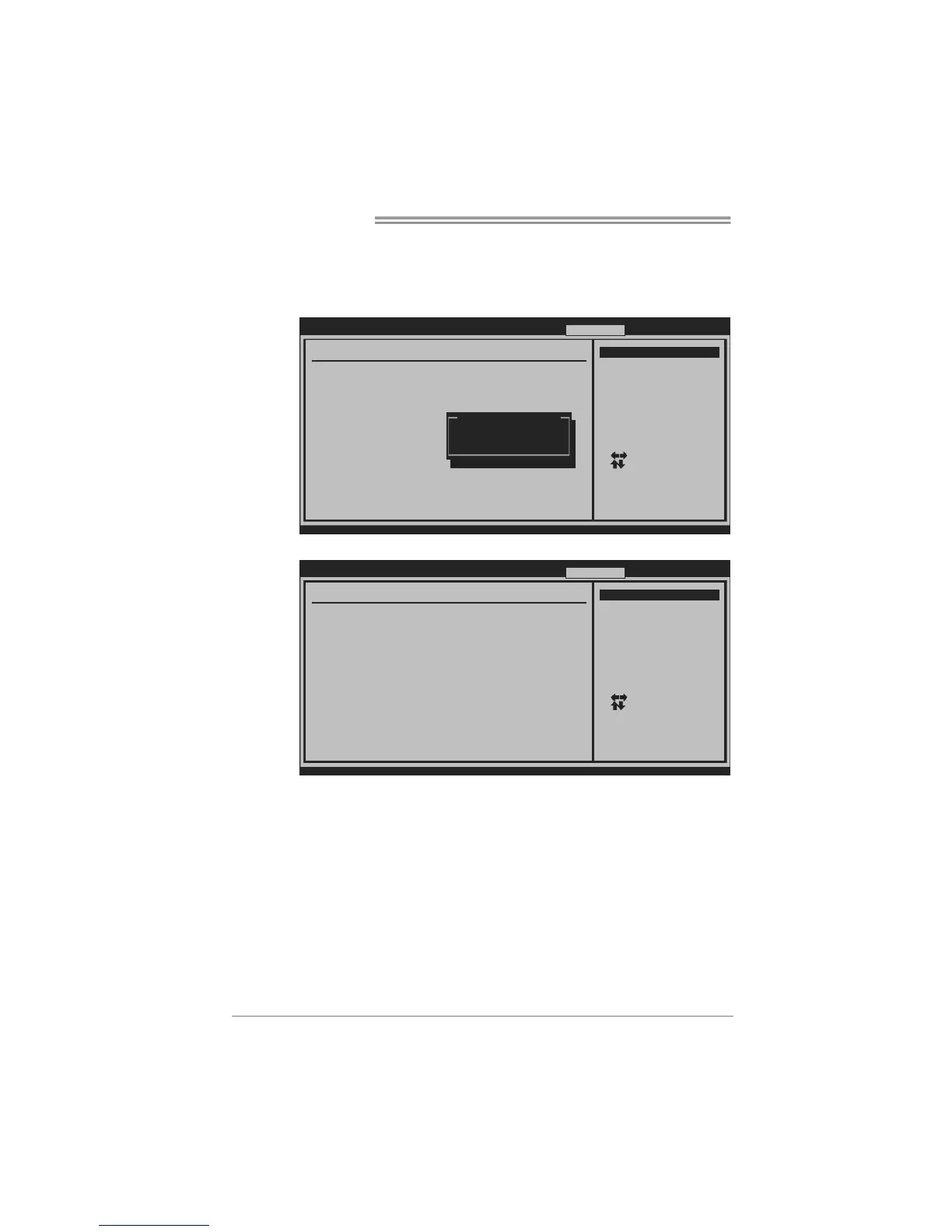

BIOS SETUP UTILITY
Main Advanced
PCIP nP Boo t
Chip set T-Series
vxx. xx (C)Cop yright 1 985-200x , American Me gatrends, In c.
Select Screen
Select Item
Change Option
General Help
Sav e and Exit
Exit
+-
F1
F10
ESC
T-Series Settings
=========== Automate OverClock System ===========
============ Manual OverClock System ============
Notice: Please Clear CMOS if system no display
after overclocking.
> G.P.U Phase Control
Integrated Memory Test [Disabled]
OverClock Navigator [Normal]
Aut o OverCloc k System [ V6-Tech Engi ne]
CPU/HT Reference Clock (MHz) [200]
Spread Spectrum [Disabled]
> Over-Voltage Configuration
> CPU FID/VID Control
> Hyper Transport Configuration
> D RAM Timi ng Configur ation
Exit
Op tions
Normal
Automate OverClock
Man ual OverCl ock
Options
Norm al
Auto mate Ove rClock
Manual OverClock
↓
BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset T-Series
vxx. xx (C)Cop yright 1985-200x , American Me gatrends , Inc.
Select Screen
Select Item
Change Option
General Help
Sav e and Exit
Exit
+-
F1
F10
ESC
T-Series Settings
=========== Automate OverClock System ===========
============ Manual OverClock System ============
Notice: Please Clear CMOS if system no display
after overclocking.
CPU/HT Reference Clock (MHz) [200]
Spread Spectrum [Disabled]
> Over-Voltage Configuration
> CPU FID/VID Control
> Hyper Transport Configuration
> D RAM Timi ng Configur ation
> G.P.U Phase Control
Integrated Memory Test [Disabled]
OverClock Navigator [Manual OverClock]
Aut o OverCloc k System [ V6-Tech Engi ne]
Exit
Op tions
Normal
Automate OverClock
Man ual OverCl ock
CPU/HT Reference Clock (MHz)
This item allows BIOS to select CPU Over Clock.
Spread Spectrum
This item allows you to control Spread Spectrum function.
Over-Voltage Configuration
Enter this function for more advanced voltage settings.
CPU FID/VID Control
Enter this function for more advanced CPU settings.
