Biostar TZ68A Setup Manual

TZ68A+
3
SPEC
Clear CMOS Header x1 Restore CMOS data to factory default
USB2.0 Connector x3 Each connector supports 2 front panel USB2.0 ports
Consumer IR Connector x1 Supports infrared function
Printer Port Connector x1 Each connector supports 1 Printer port
Serial Port Connector x1 Connects to RS-232 Port
S/PDIF out Connector x1 Supports digital audio out function
Power Connector (24pin) x1 Connects to Power supply
Power Connector (8pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard / Mouse x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN port x1
USB2.0 Port x2
USB3.0 Port x2
Audio Jack x3
Connects to PS/2 Keyboard / Mouse
Connects to HDMI cable
Connect to D-SUB monitor
Connect to DVI monitor
Connect to RJ-45 ethernet cab le
Connect to USB2.0 devices
Connect to USB3.0 devices (by ASM1042) and
USB2.0/USB1.X devices (by Z68)
Provide Audio-In/Out and Mic. connection
Board Size
230 (W) x 305 (L) mm
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove support
for any OS with or without notice

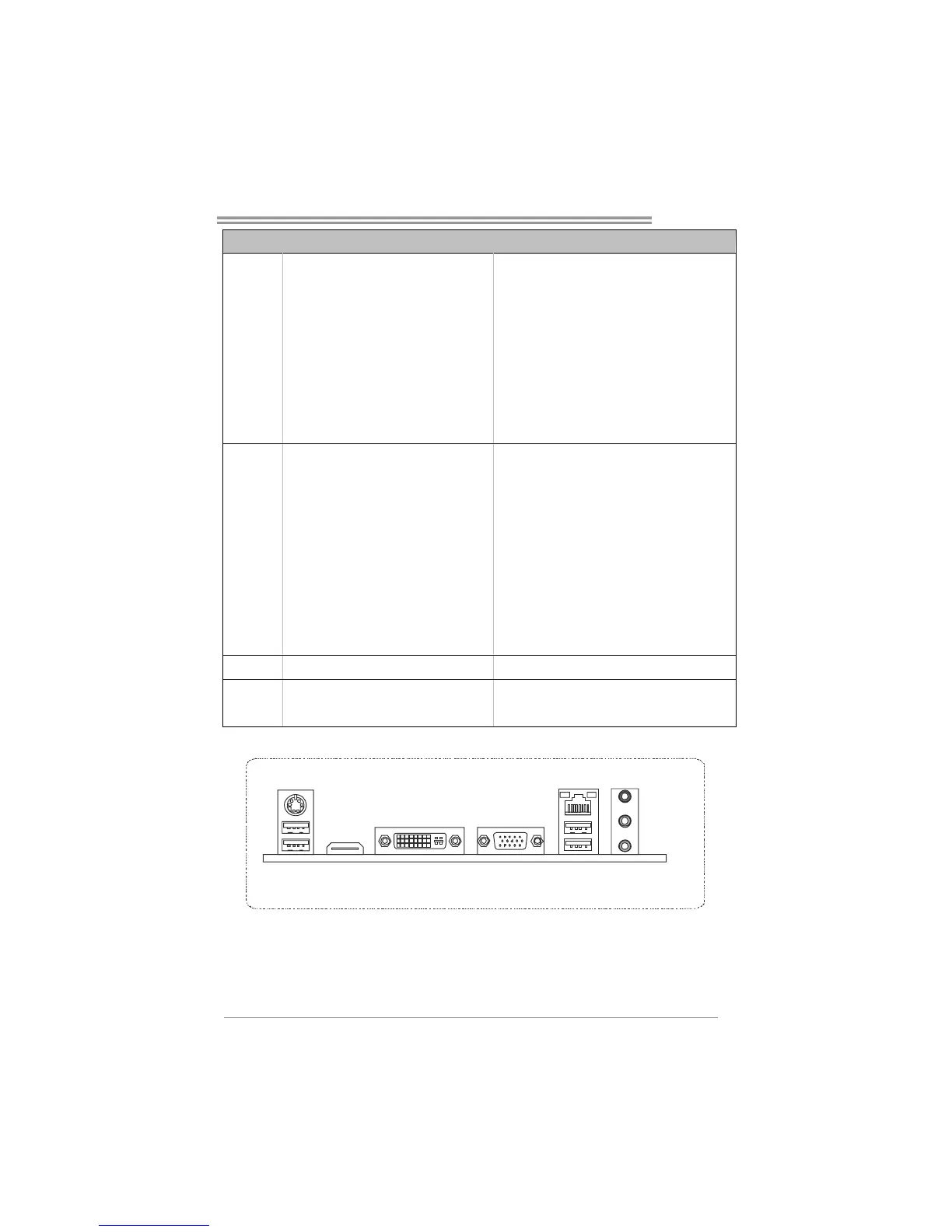

1.4 REAR PANEL CONNECTORS
USB3.0X2
LAN
HDMI VGADVI-D
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
PS/2
Keyboard / Mouse
USB2.0X2
NOTE: Any of 2 HDMI / DVI-D / VGA can provide video signals out-put function.
NOTE: USB3.0 ports are backward compatible with USB2.0/USB1.X devices. USB3.0 is
controlled by ASM1042, but, USB2.0/USB1.X is controlled by Z68.

Biostar TZ68A Specifications

General

Brand	Biostar
Model	TZ68A
Category	Motherboard
Language	English
