M2M _SB_1: M.2 (M Key) Socket

• Supports M.2 Type 2260/2280 SSD module

• Supports PCI-E 4.0x 4 (64Gb/s) - NVMe/ AHCI SSD

M2M _SB_2: M.2 (M Key) Socket

• Supports M.2 Type 2280 SSD module

• Supports PCI-E 4.0x 4 (64Gb/s) - NVMe/ AHCI SSD

M2E-WIFI: M.2 (E Key) Socket (M.2 (E key) Wi-Fi card is not provided)

• Support M.2 (E Key) socket module.

• Supports WiFi/ Bluetooth module.

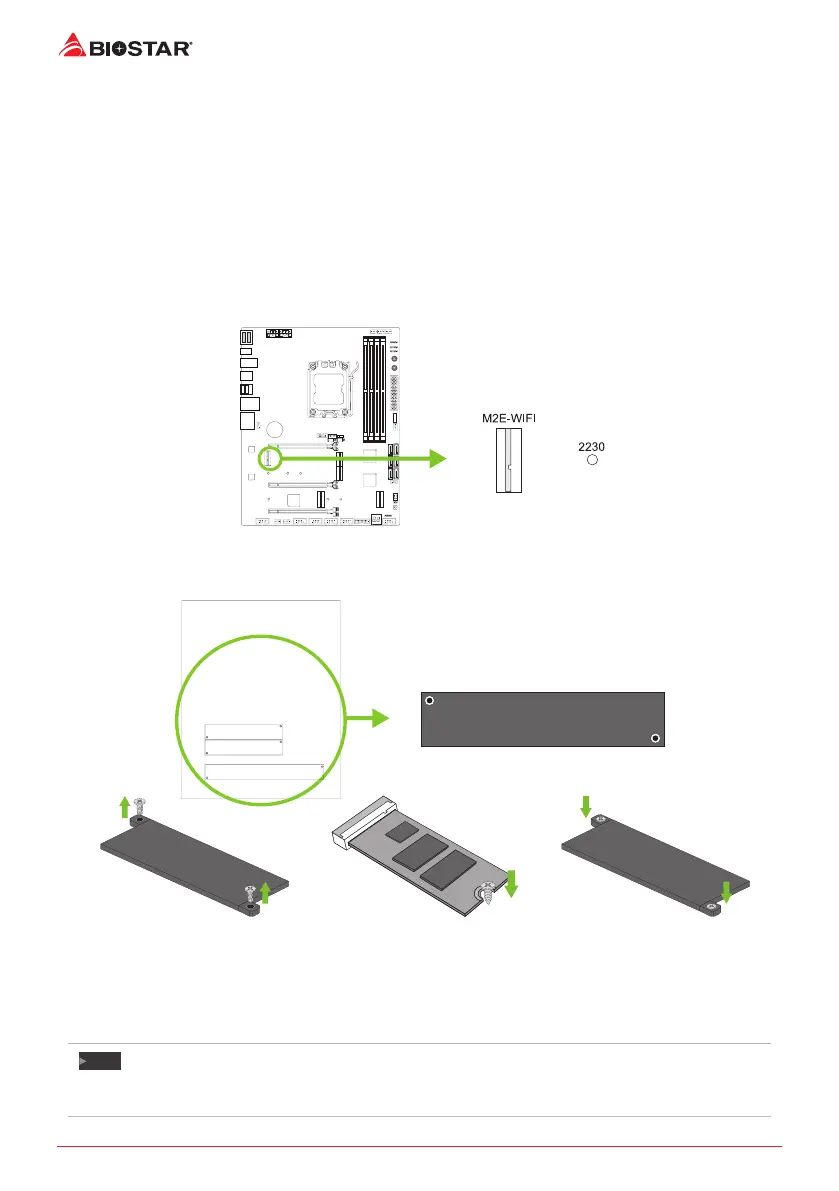

Install M.2 COOLING Heatsink

Steps of Removing the M.2 COOLING Heatsink:

Step 1:

Before installing the M.2 SSD

card, remove the two screws on

the heat sink, and then remove

the heat sink.

Step 2:

Insert M.2 SSD card onto the

M.2 slot and screw it onto the

motherboard.

Step 3:

Aer installing the M.2 SSD card,

place the M.2 COOLING Heatsink

over the M.2 slot and fasten the

screws to x the heatsink onto

the motherboard.

Note

Please follow the installaon instrucons of M.2 COOLING Heatsink and remove the M.2 COOLING

Heatsink to install the M.2 SSD card onto your motherboard.
