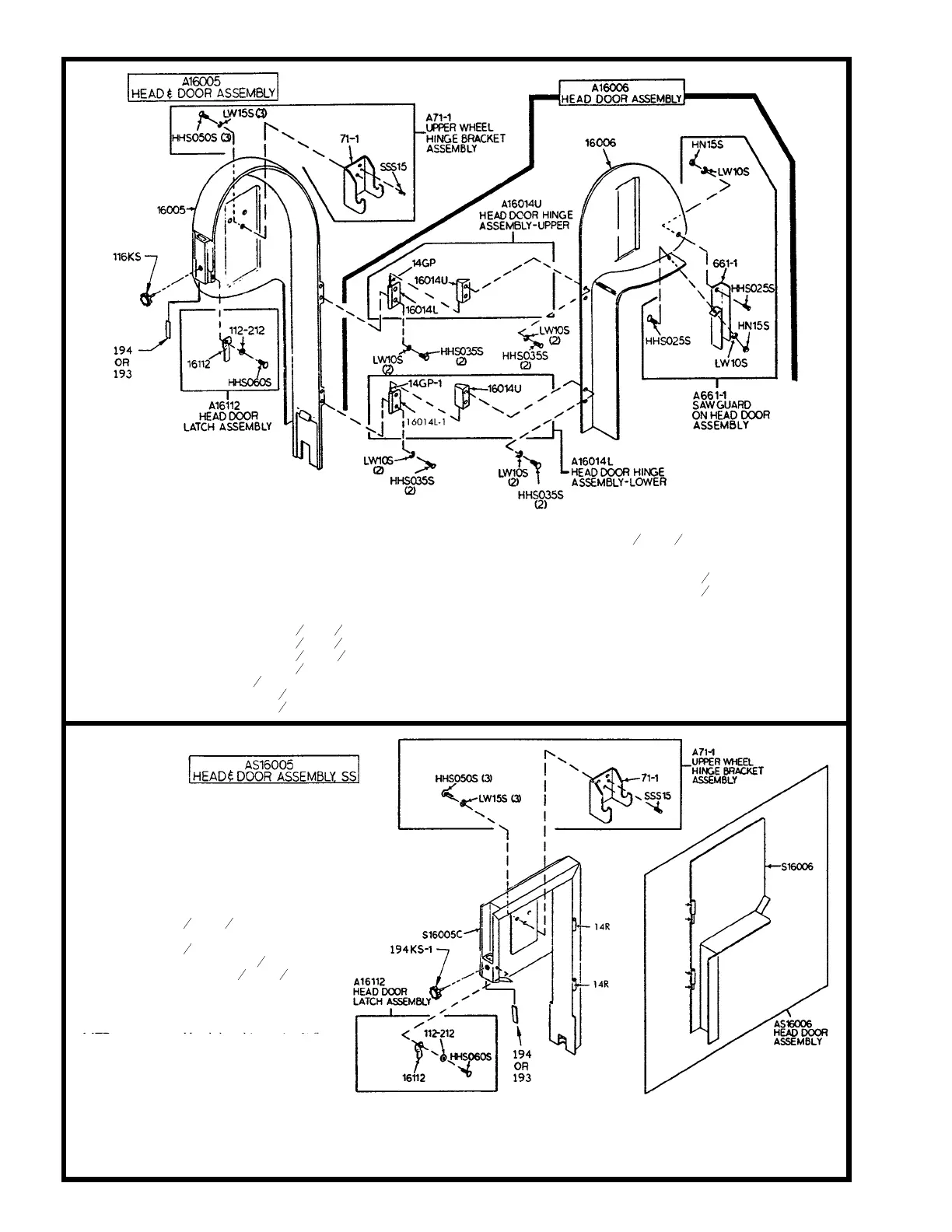

BIRO 3334 - Page 18

16
Item No. Description
A16005 Head & door assembly
A16006 Head door assembly
A16014L Head door hinge assembly, lower
16014L-1 Head door hinge – short pin
A16014U Head door hinge assembly, upper
A16112 Head door latch assembly
A661-1 Saw guard on head door assembly
A71-1 Upper wheel hinge bracket assembly
HHS025S Hex head screw,
1
4
-20
´
1
2
SS
HHS035S Hex head screw,
1
4
-20
´
5
8
SS
HHS050S Hex head screw,
5
16
-18
´
5
8
SS
HHS060S Hex head screw,
5
16
-18
´
1SS
HN15S Hex nut,
1
4
-20 SS
LW10S Lock washer,
1
4
SS
LW15S Lock washer,
5
16
SS
Item No. Description
SSS15 Set screw
5
16
-18
´
5
16
cup point
112-212 Waved washer
116KS Saw guide bar lock knob – aluminum head
14GP Head door hinge pin, 1
1
2
"
14GP-1 Head door hinge pin, 1
1
4
"
16005 Head, aluminum
16006 Head door, aluminum
16014L Head door hinge, lower half *NSS
16014U Head door hinge, upper half *NSS
16112 Head door latch
193 Guide bar spring
194 Locking knob pad
661-1 Saw guard to head door
71-1 Upper wheel hinge bracket
Item No. Description
A16112 Head door latch assembly
AS16005 Head & door assembly SS
AS16006 Head door assembly SS
A71-1 Upper wheel hinge bracket
assembly
HHS050S Hex head screw,
5
16
-18
´
5
8
SS
HHS060S Hex head screw,
5
16
-18
´
1SS
LW15S Lock washer,
5
16
SS
SSS15 Set screw
5
16
-18
´
5
16
cup point
S16005C Head SS
S16006 Head door SS
14R Head door hinge, welded
14TP Head door hinge pin, 1
1
2
"
14TP-1 Head door hinge pin, 1
1
4
"
112-212 Waved washer
16112 Head door latch
193 Guide bar spring
194 Locking knob pad
194KS-1 Saw guide bar lock knob –
stainless head
71-1 Upper wheel hinge bracket
14P Head door hinge 1
1
⁄2”
14P-1 Head door hinge 1
1
⁄4”
14P
14P-1
