17

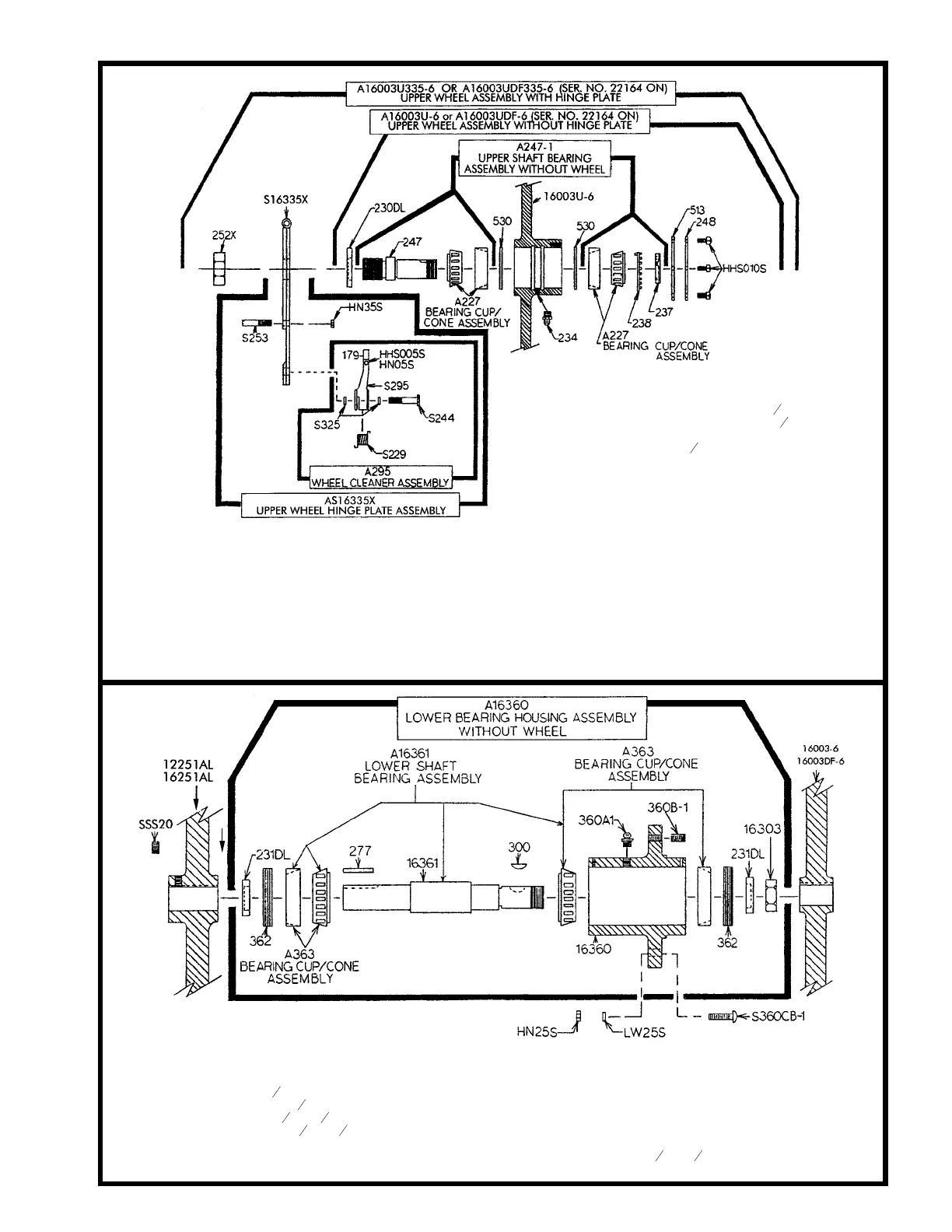

Item No. Description
A16003U-6 Upper wheel assembly without hinge plate
A16003U335-6 Upper wheel assembly with hinge plate
A16003UDF-6 Upper double flange wheel assembly without hinge plate
A16003UDF335-6 Upper double flange wheel assembly with hinge plate
A247-1 Upper shaft bearing assembly
AS16335X Upper wheel hinge plate assembly
A227 Bearing cup/cone assembly
A295 Wheel cleaner assembly
Item No. Description
HHS005S Hex head screw, 8-32
´
1
2
SS
HHS010S Hex head screw, 10-32
´
3
8
SS
HN05S Hex nut 8-32 SS
HN35S Hex nut
3
8
-16 SS
S16335X Upper wheel hinge plate, SS
S229 Wheel cleaner arm torsion spring, SS
S244 Wheel cleaner arm stud, SS
S253 Upper wheel aligning screw, SS
S295 Wheel cleaner arm, SS
S325 Wheel cleaner washer, SS
16003U-6 Upper wheel, 16", 6 spoke
179 Wheel cleaner
230DL Upper shaft seal, double lip
234 Grease fitting, upper wheel
237 Upper shaft castellated lock nut
238 Upper shaft castellated lock nut washer
247 Upper shaft
248 Upper wheel hub cap
252X Shaft lock nut
513 Upper wheel hub gasket
530 Retaining ring (2 req.)
Item No. Description
A16360 Lower bearing housing assembly without
wheel
A16361 Lower shaft bearing assembly
A363 Bearing cup/cone assembly
HN25S Hex nut,
3
8
-16 SS
LW25S Lock washer,
3
8
SS
SSS20 Set screw,
3
8
-16
´
3
8
cup point
S360CB-1 Carriage bolt,
3
8
-16 1
1
4
SS
12251AL Upper V-belt pulley 9
´
1AL
16003-6 Lower wheel 16", 6 spoke
16003DF-6 Lower double flange wheel 16², 6-spoke
16251AL Upper v-belt pulley, 11.4
´
1AL
16303 Lower shaft nut
16360 Lower bearing housing
16361 Lower shaft
231DL Lower shaft seal, double lip
277 Lower shaft key
300 Lower shaft Woodruff key
360A1 Grease fitting
360B-1 Set screw,
1
2
-13
´
1
2
flat point
362 Lower bearing housing adj. cap
