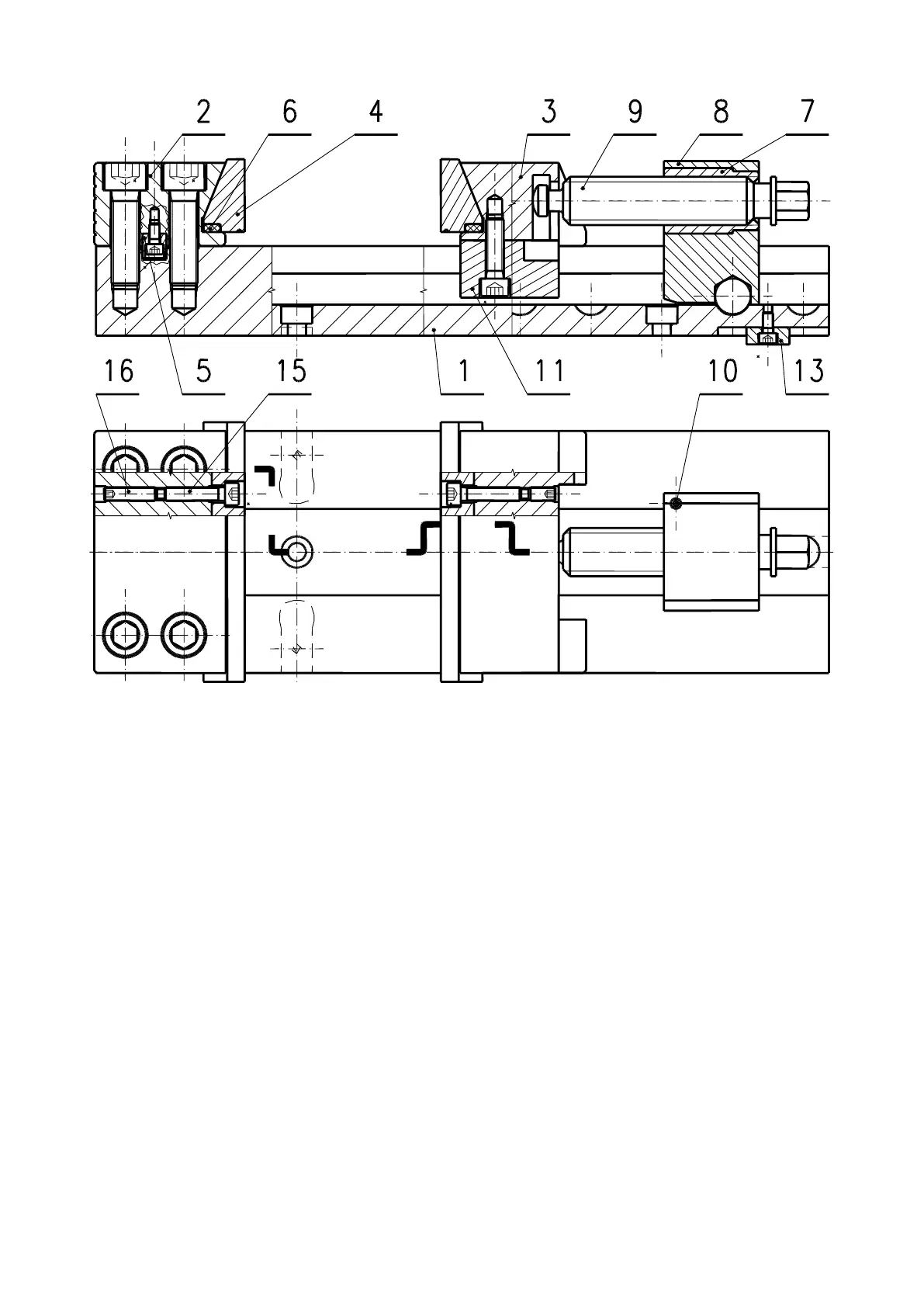

The cross-section of precision machine vise of 6620 type is shown at Fig. 2.
Fig. 2. Cross-section of precision machine vise of 6620 type
1. Base
2. Fixed jaw
3. Movable jaw
4. Clamping insert
5. Key
6. Thrust plate
7. Sleeve
8. Holder
9. Lead screw
10. Screw
11. Guide plate
12. Self-aligning guide plate
13. Fixture key
14. Clamping lug
15. Bolt
16. Screw
