P A R T S L I S T
Item Qty Description Item Qty Description
A 4 1/4” X 1 1/4” Special Bolt B 4 1/4” Flange Nut
Note!!!
This hardware must be used to properly mount this acrylic backboard to your pole system.
Disregard any hardware that was provided with the pole system that applies to other
non-acrylic style backboards. Your pole system will require either 2 or 4 of the special bolts
enclosed. Disregard the excess hardware. Failure to use the appropriate hardware will invalidate
the warranty for this acrylic backboard.
TOOLS/MATERIALS REQUIRED
1 Each 7/16” combination wrench or socket
♦ Inspect all contents prior to installation. Report any missing parts to dealer immediately.
♦ Read all instructions before proceeding.
Date: 10.4.01 Rev: 9 B.A. N.J.C. File: \ BAACRYLIC.MSP Ref#: 940088
—— Instruction Manual ——
BAACRYLIC
Special Acrylic Hardware
Customer Service
(800) 247 7668

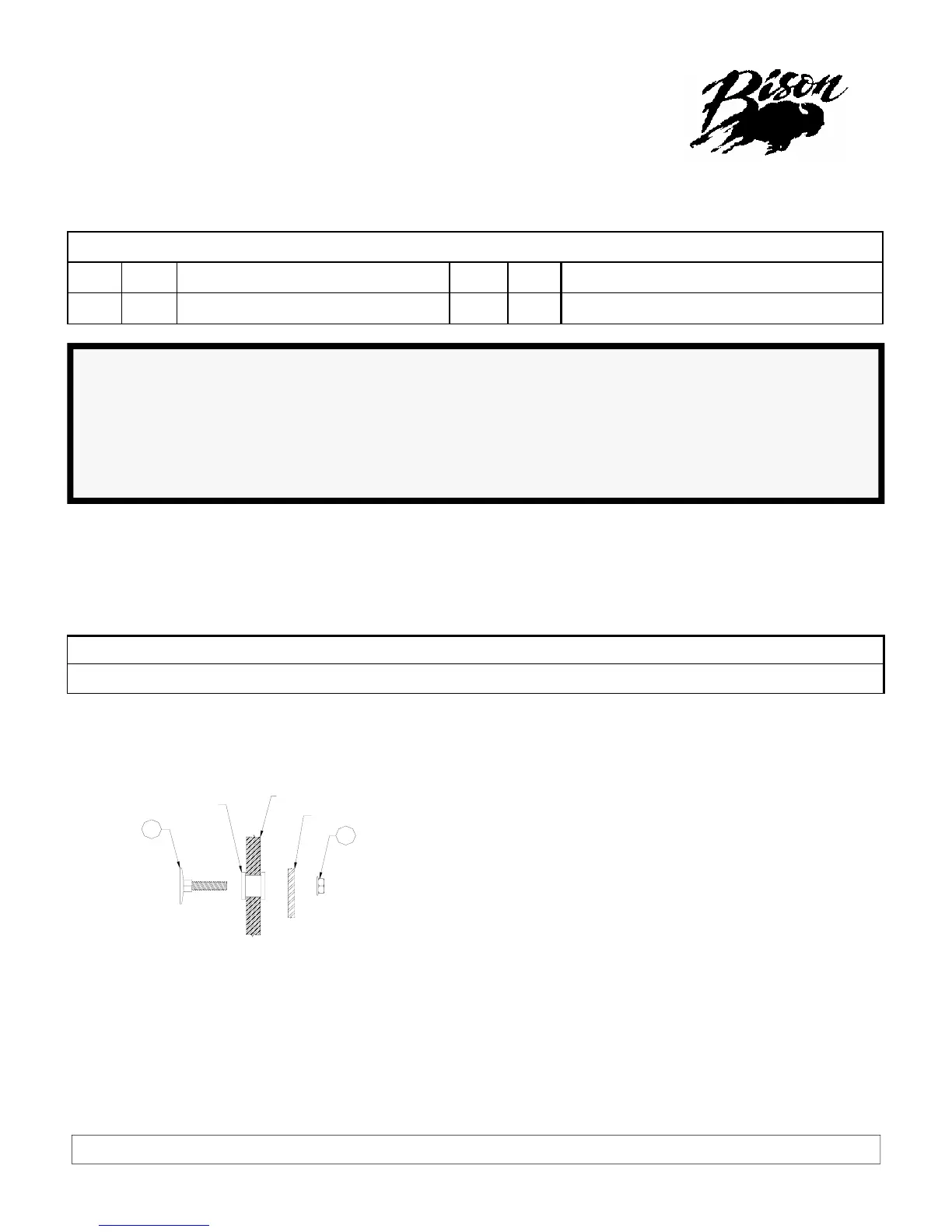

1. Determine whether your pole system will require
mounting braces to all 4 brace mount holes in the
acrylic backboard or only the top 2.
2. Remove the factory installed vibration
dampening bushings from the 2 bottom holes if
they are not to be used.
3. Following the adjacent illustration mount the
backboard to the pole system braces making sure
the hardware is used in the proper sequence to
insure that all steel components are isolated from
the acrylic by the vibration dampening bushings.
4. When everything is level, tighten the brace mounting hardware until the vibration dampening bushing
compresses to the approximate diameter of the head of the special bolt (A). See illustration on back
page.
Factory Installed
Vibration Dampening Bushing
A
Steel Support Brace/Bracket
Acrylic Backboard
B
