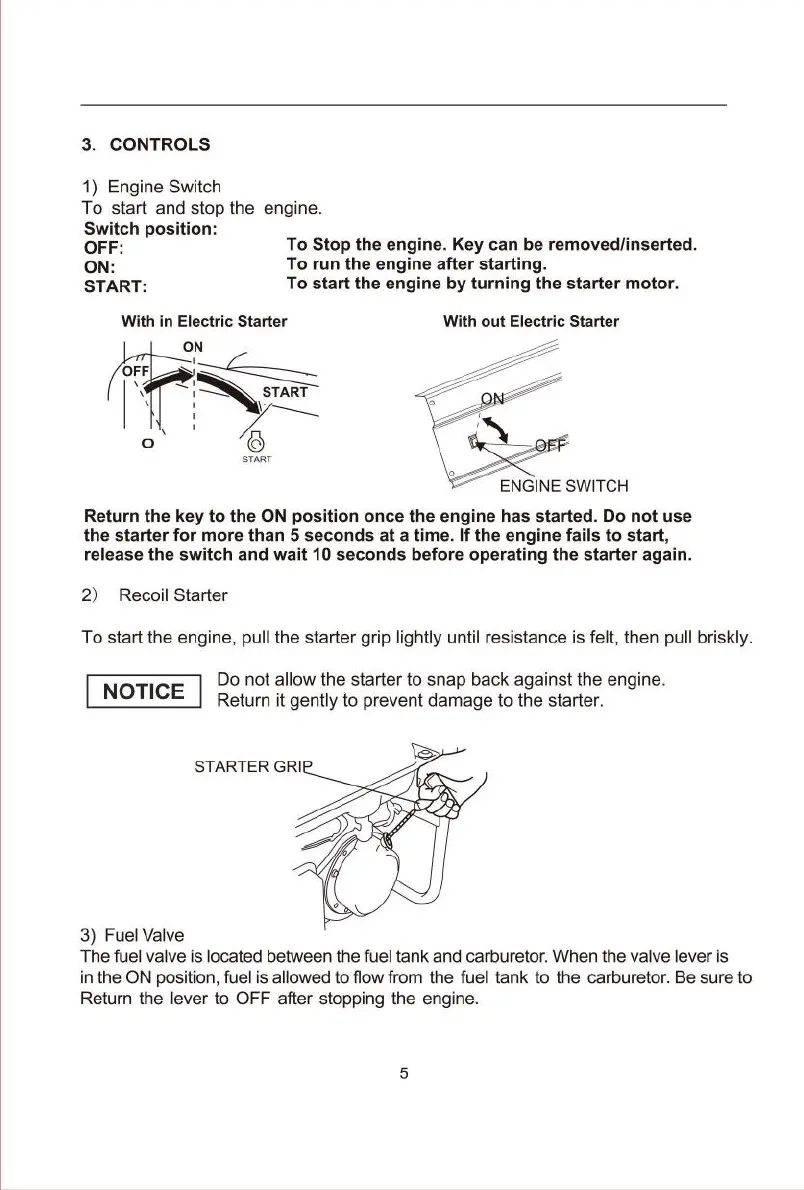

3. CONTROLS
1)
Engine Switch
To start and stop the engine.
Switch
position
:
OFF:
ON:
START:
To Stop the engine. Key can be removed/inserted.
To run the engine after starting.
To start the engine
by
turning
the starter motor.
With
in
Electric Starter
\
。
With
out Electric Starter
START
Return the key
to
the
ON
position
once the engine has started. Do
not
use
the starter
for
more than 5 seconds
at
a time.
If
the engine fails
to
start,
release the
switch
and
wait
10 seconds before operating the starter again.
2) Recoil Starter
To start the engine, pull the starter grip lightly until resistance is felt, then pull briskly.
| NOTlCE | Do not a||ow the
starterto
snap back againstthe engme.
Return
it
gently to prevent damage to the starter.
3) Fuel Valve
The fuel valve
is
located between the fuel tank and carburetor. When the valve lever
is
in
the
ON
position, fuel
is
allowed
to
flow from the fuel tank to the carburetor.
Be
sure to
Return the lever to OFF after stopping the engine.
5
