Bison HangTime - Backboard Assembly and Mounting

To Next Page

To Previous Page

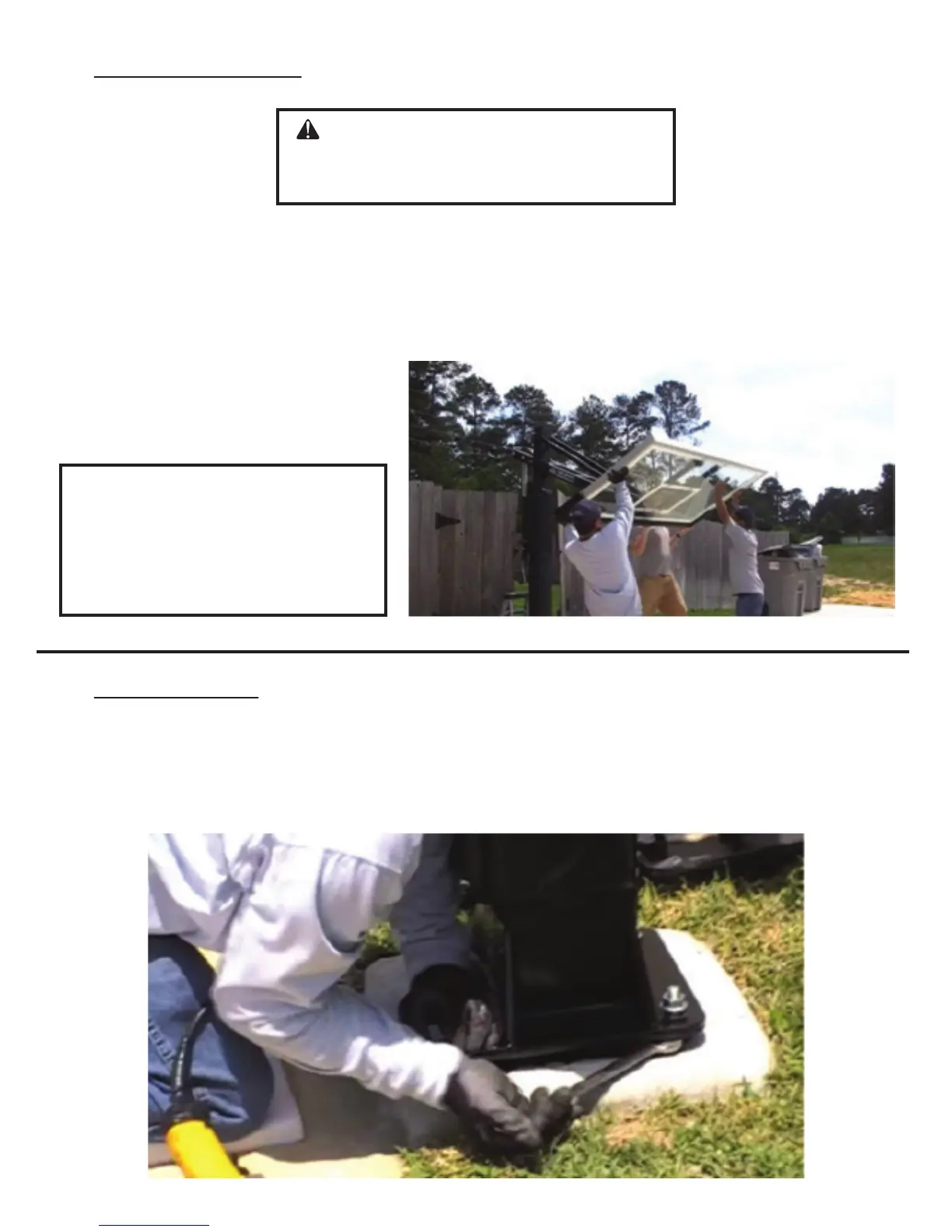

CAUTION: ATTACHING THE

BACKBOARD REQUIRES AT

LEAST FOUR CAPABLE ADULTS.

10) Backboard Assembly

Mount the lower Backboard Assembly (D) mounting tube first to the Main

Extension Arm (B) using one 3/4” X 12 1/2” Hex Bolt (P) and one 3/4” Lock Nut

(Q). Next, attach the upper Backboard Assembly (D) mounting tube to the Parallel

Linkages (C) using one 3/4” x 11 1/4” Hex Bolt (O) and one 3/4” Lock Nut (Q).

11) Level Backboard

Check face and top of backboard to see if it is level and plumb. If not, correct by

adjusting the 5/8” J-Bolt Hex Nuts (L) located both below and above the Vertical

Post (A) base plate.

NOTE: Tighten the lock nuts

down and then back off a 1/4

turn to allow the joint to pivot

when adjusting the system up

and down.

REV. 10/10/17
