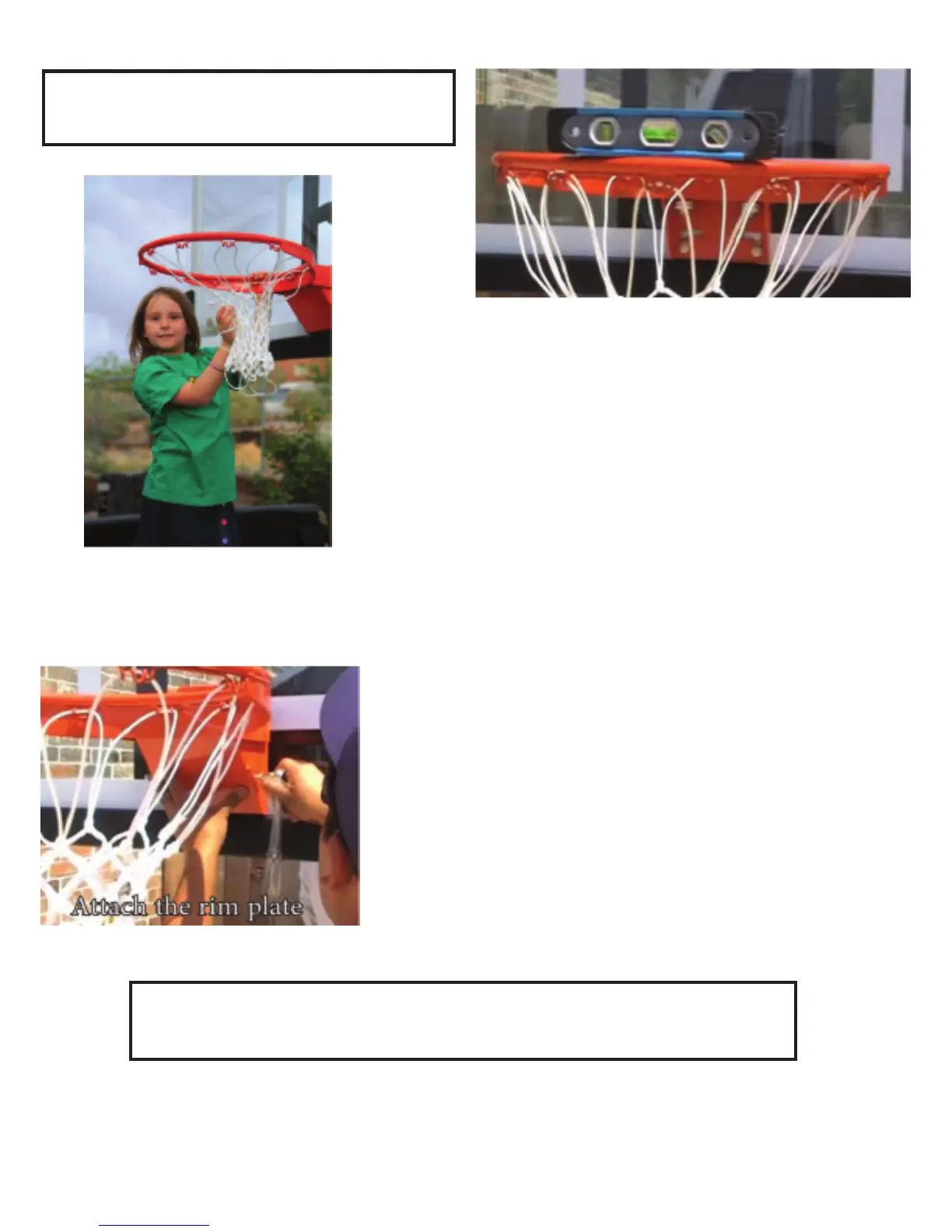

NOTE: Use a level to make sure rim is
level side to side before tightening nuts.
NOTE: Do not over tighten. If unit is excessively difficult to crank up
and down, the Lock Nuts that secure all moving parts are too tight.
Attach the Net (HH) to the Breakaway Rim (II).
Using (2) Screws (FF) attach the Rim Cover Plate (GG) to the Breakaway Rim (II). The Rim
Cover Plate (GG) covers the springs in the Breakaway Rim (II) as shown below.
If not already done, remove the spring assist spacer. Cut off the spring assist spacer
that is attached to the Spring-Assist Cartridges (E) using a sharp knife.
Make sure all nuts on the system have been tightened.
REV. 10/10/17
