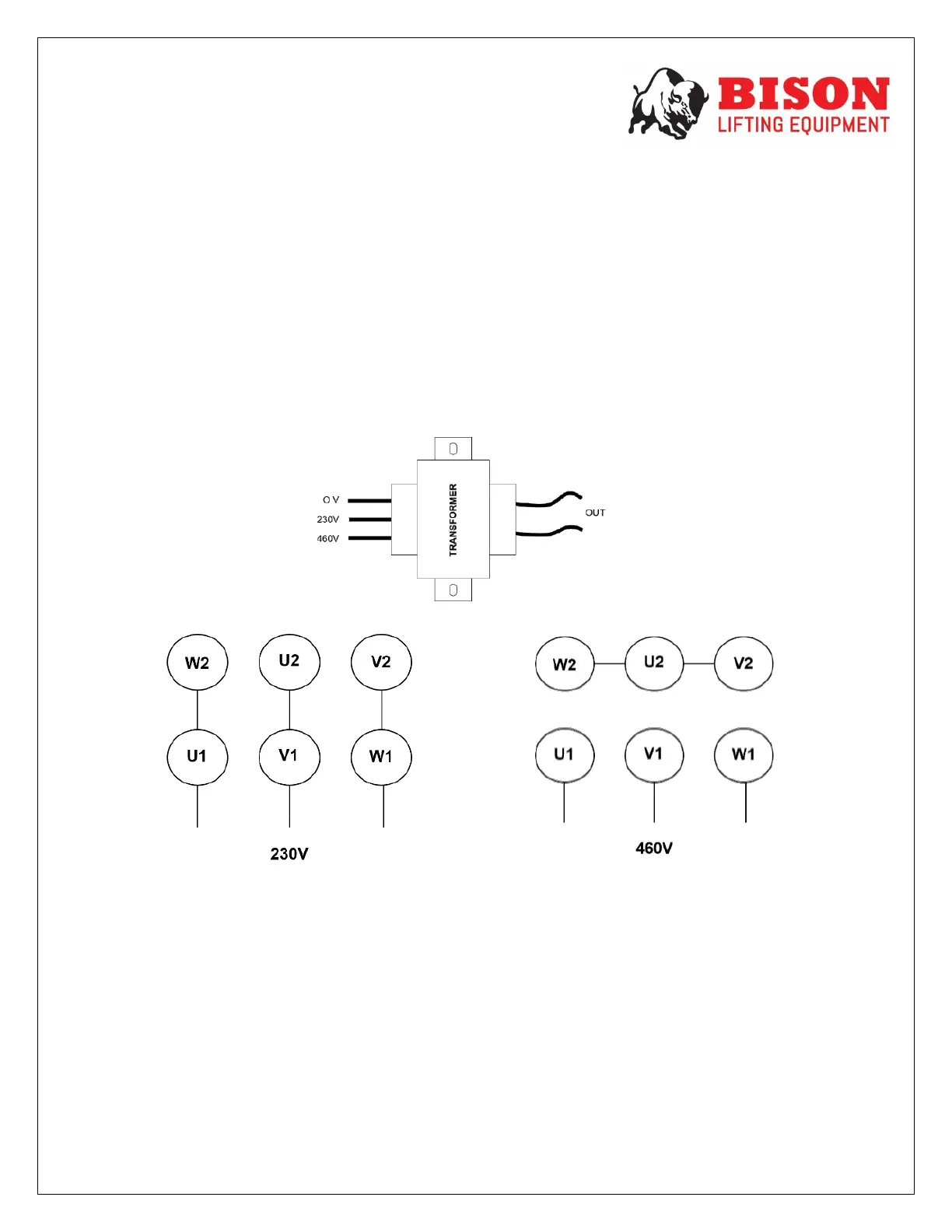

Dual Speed: For Dual speed 230V connection look for the 2 sets of 3 cables that come
from the motor stator that have a cable nut or crimp connecting them together. They are
normally tucked behind the contactor backing plate to the left of the hoist panel. 1 set
will be red wires and the other set will be black wires. The red wires will be for slow and
the black wires will be for fast.
Connect each set as you would a single speed motor as explained above, make sure
you connect the red wires to the red wires on the bottom of the slow contactor terminals
T1-T2-T3 and the same with the black wires onto the fast contactor terminals T1-T2-T3
