37
ASSEMBLY

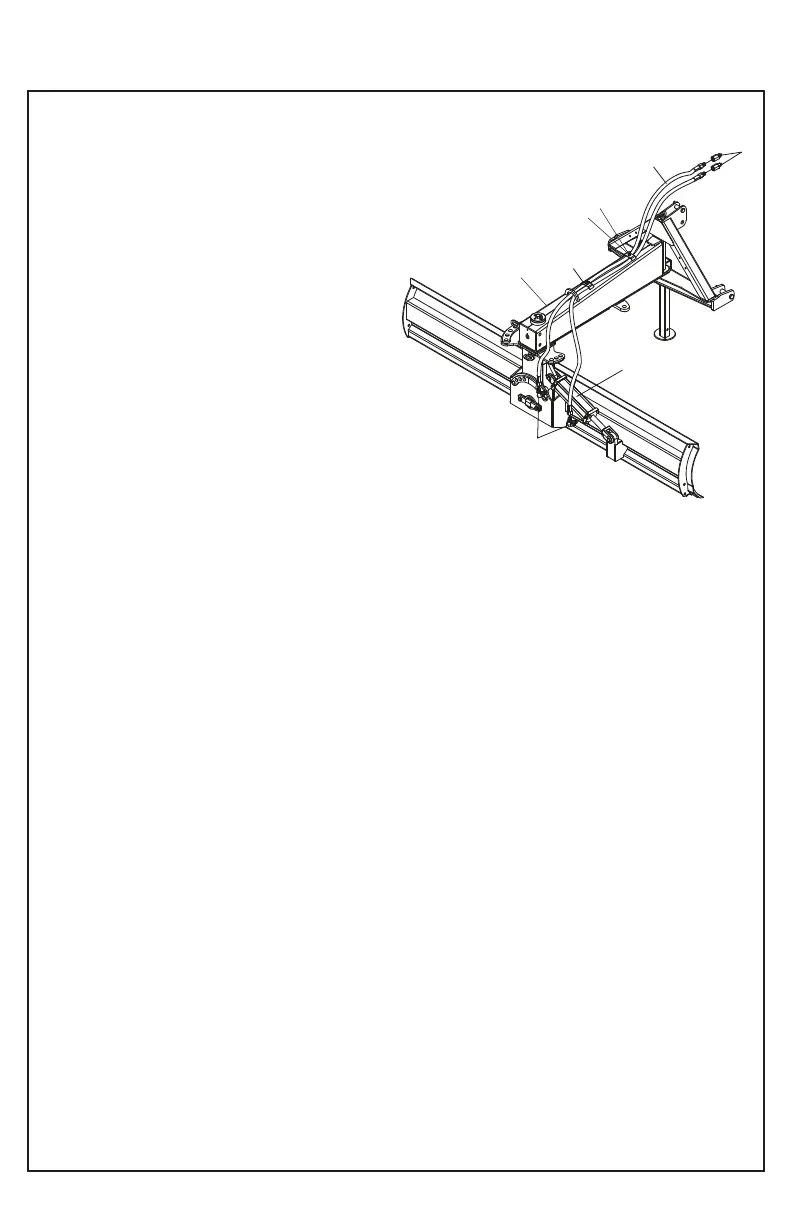

Tilt cylinder kit hose assemlby (KHCN105)
1. Install both elbows (42) to the tilt cylinder (37).
2. Install the two hoses (46) on the elbows (42) of the tilt
cylinder (37).
3. Secure hoses (46) to the top of the mainframe (2) by
hose clamp (18), nut (25) and lock washer (29).
4. Install the quick connectors (41) to tubing (46).
2. Plane
18. Hose holder
25. Hex, 3/8 - 16 UNC butterfly
29. Lock washer 3/8"
37. Tilt Cylinder
41. Couplers
42. Elbows
46. Hoses
Inclinación
37
NB80-034
42
18
46
41
2
25
29
