A. Hook the rear blade to the tractor.
B. Raise the rear blade 5 cm. above ground operating
the elevation control valve.
C. Support the rear blade on blocks correctly during
the installation of the end plates to prevent accidents in
case the rear blade drops due to loss of hydraulic
pressure.
D. Assemble the end plates (1) to moldboard using
screws (5), spacers (3), hex nuts (7) and lock washers
(8) by aligning the holes in the end plates with the
holes on the edge of the moldboard while the upper
and lower edge of the side plates (1) insure plate is
flush with the top and bottom of the moldboard.
E. Place the left and right braces (2 and 4) and secure
the modlboard and end plates (1) with four screws (6),
lock washers (8), and hex nuts (7).
F. Lower the rear blade to the floor.
1. End Plates
2. Tensor Left
3. Spacer
4. Tensor Right
5. Screw 5/8 x 3 1/2 - 11 UNC G5
6. Screw 5/8 x 1 1/2 - 11 UNC G5
7. Hex, 5/8
8. Lock washer, 5/8

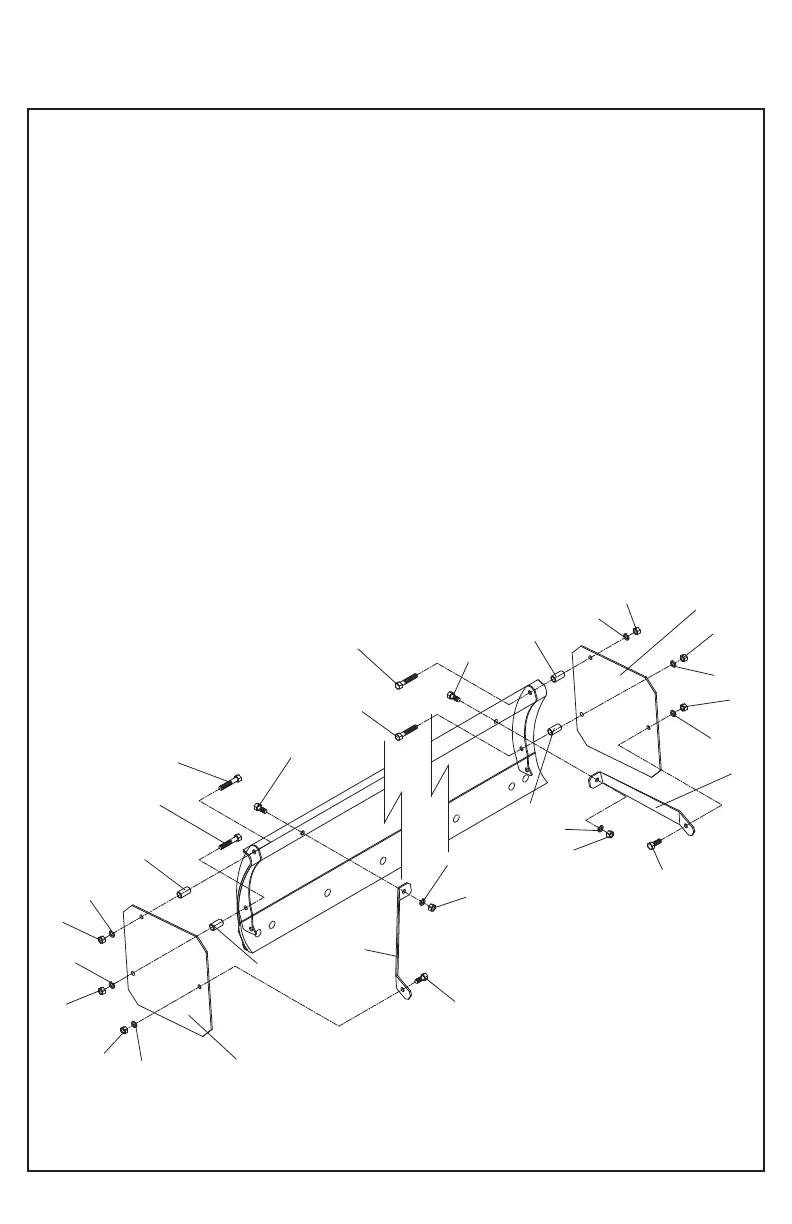

END PLATES ASSEMBLY C6200003 (OPTIONAL)
