A. Attach the rear blade to the tractor and level the
mainframe.
B. Raise rear blade 5cm. from ground operating tractor
lift control.
C. Support rear blade on blocks correctly when
installing the skid shoes to prevent accidents if the rear
blade drops due to loss of hydraulic pressure.
D. Remove the two plow blots from both ends of the
rear blade.
E. Mount the two skid shoes (1) to the moldboard with
two additional plow bolts (5), lock washer (7) and hex
nuts (6).
F. Insert the stand of the the skid (2) through the skid
shoe (1) and stack the fifteen flat washers (3) on top of
each stand of skid shoe (2) and secure with lynch pin
(4) . To adjust the height the skid shoe, you must place
the flat washers (3) from the top to the bottom of the
stand of the skid shoes (2) to the desired height part.
G. Lower the rear blade to the floor.
1. Skid Shoe
2. Skid Shoe Stand
3. Flat Washer, 1
4. Agricultural lock, 3/8
5. Plow Bolt, 5/8 x 2 1/2 -11 UNC G5
6. Hex, 5/8
7. Lock Washer, 5/8

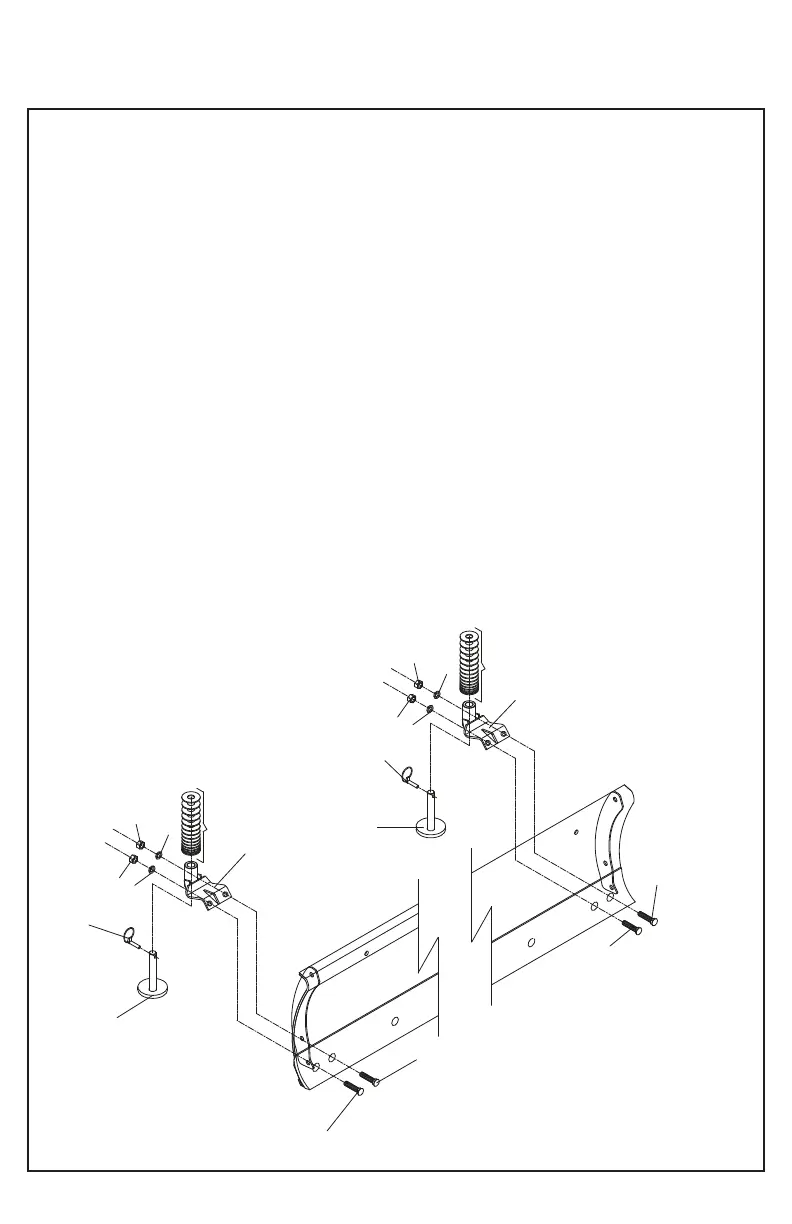

SKID SHOES ASSEMBLY C6100002 (OPTIONAL)
2
5
5
7
6
4
7
6
1
3
1
5
2
5
4
7
6
6
7
3
NB80-036
