KB-206-110
operated under extreme conditions (e.g. aggressive at-
mosphere, low outdoor temperatures, etc.).
Ensure good accessibility for maintenance and service
work!
If the ECOLITE condensing unit is mounted on mount-
ing brackets, the installation surface under the four fix-
ing points must be at least 6 x 6 cm. Use three mount-
ing brackets (on the right, in the middle and on the left).
It is not necessary to screw the bracket in the middle to
the device.
!
!
NOTICE
When installing the condensing unit in areas
where extreme wind loads may occur, screw it
always firmly to the ground!
If installed on a roof, provide sufficient lightning
protection!
CAUTION
The fins of the condenser have sharp edges!
Risk of lacerations.
Before performing any work on the condensing
unit: Wear protective gloves.
50 cm
50 cm30 cm
50 cm
200 cm
30 cm

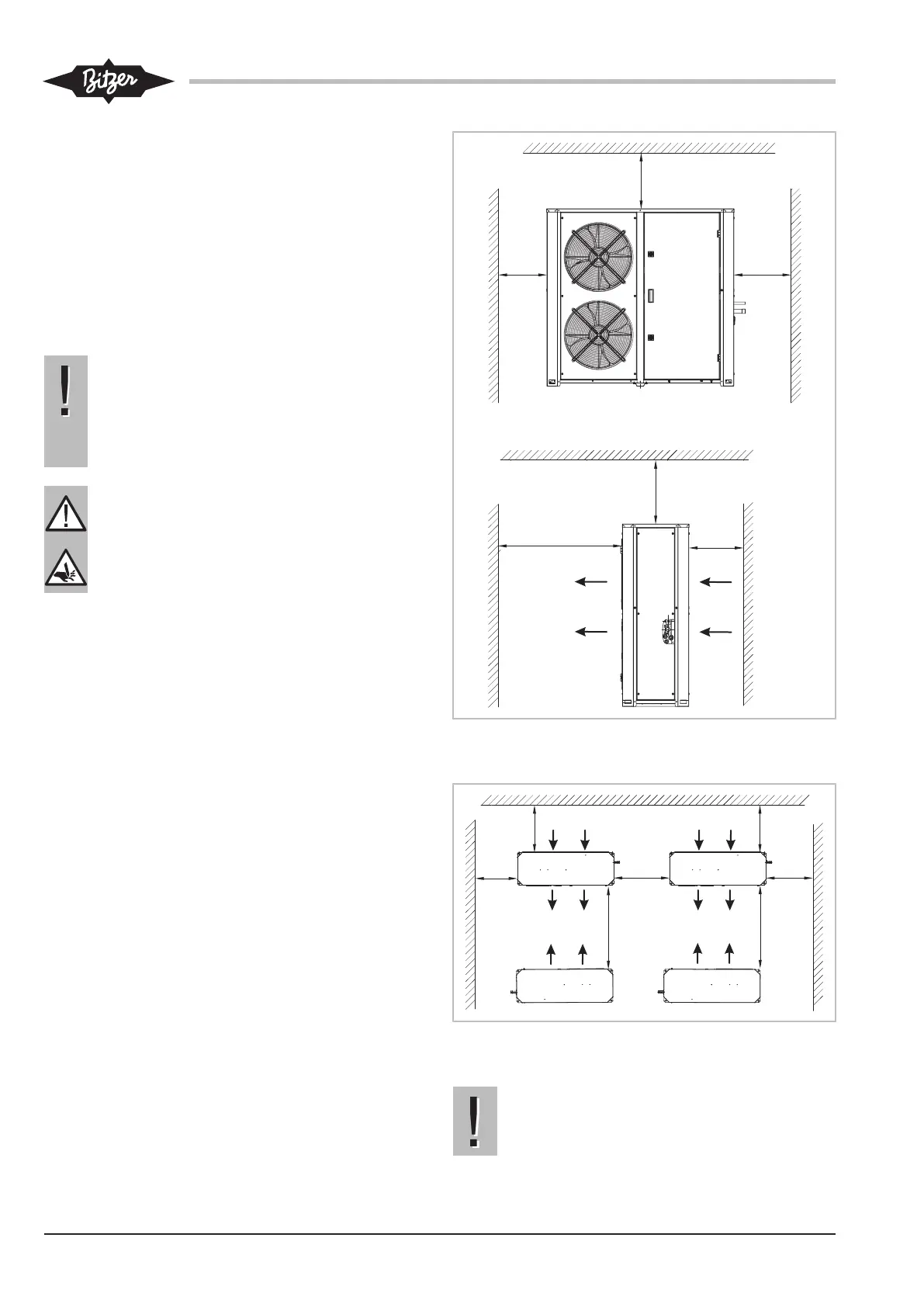

Fig.6: Minimum distances to the wall and ceiling (example shows
LHL5E/ .. )
100 cm
30 cm
30 cm
50 cm
30 cm
300 cm
300 cm
Fig.7: Minimum distances when installing several condensing units
(example shows LHL5E/ .. )
!
!
NOTICE
Avoid a short-circuit of the air flow or obstacles
in the air flow of the condenser fans!
